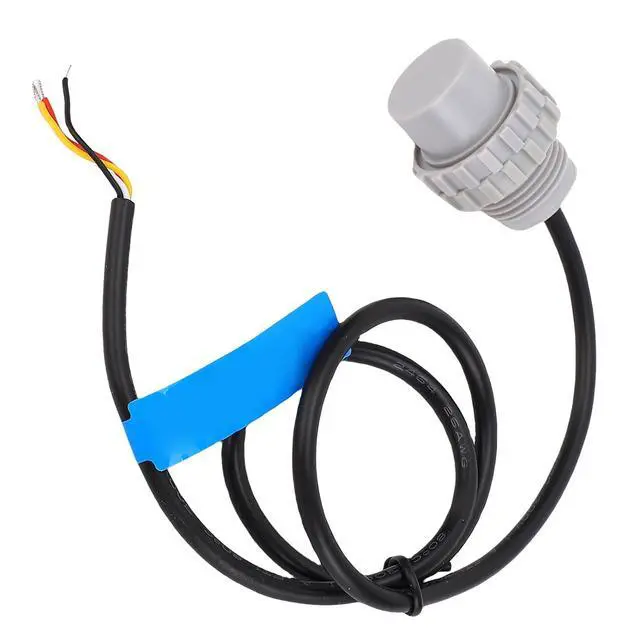

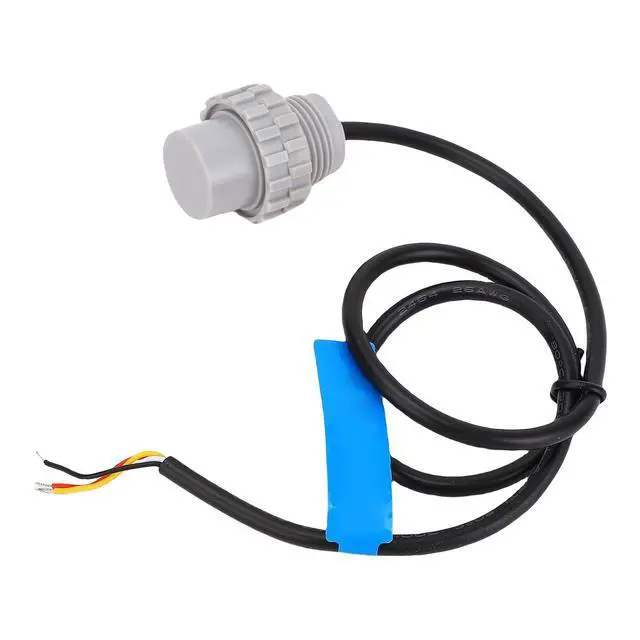

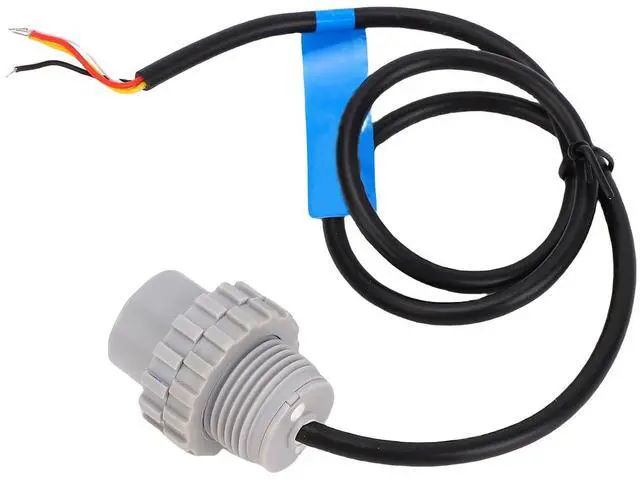

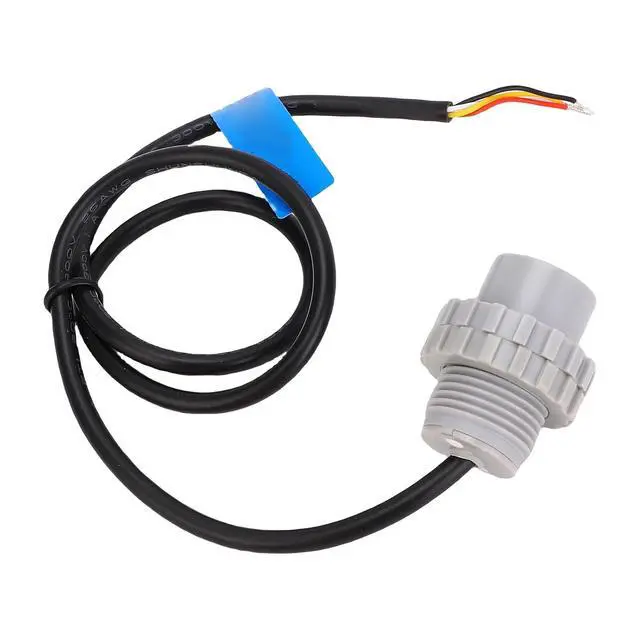

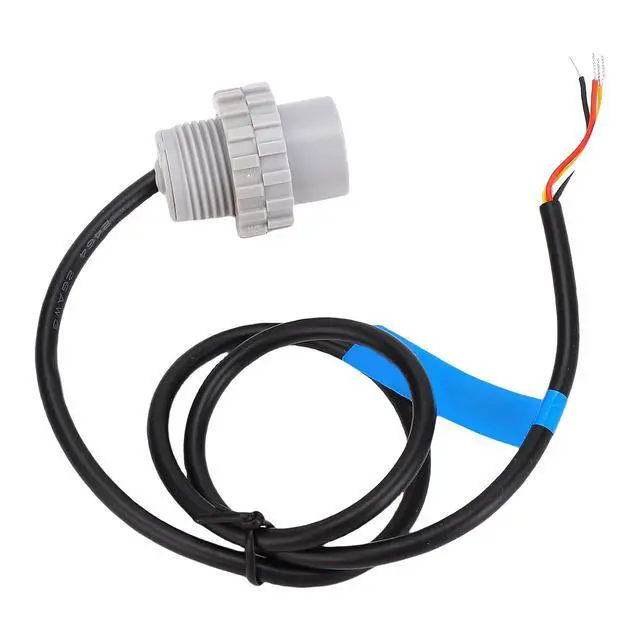

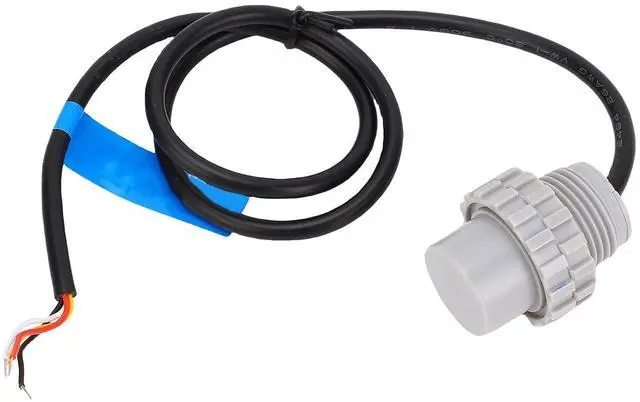

Ultrasonic Ranging Detector for Underwater Robots | IP68 Obstacle Avoidance Sensor with UART for Pool Cleaning (DYP-L08B50TW-V2.0)
- Deep Water Capability: Enables easy obstacle avoidance at depths up to 10 meters, replacing traditional cameras and allowing for true autonomous navigation of underwater vehicles.; Compact & High-Performance Design: Features a small size and minimal blind zone for precise underwater obstacle detection, with excellent IP68 protection for reliable operation.; Versatile Underwater Applications: Ideal for various underwater tasks including ranging, obstacle avoidance for self-controlled robots, and integration into pool cleaning and underwater cleaning equipment.; Robust & Customizable: Offers an IP68 rating for harsh environments and supports modification of key parameters like module address, detection angle, and baud rate via UART.; Advanced & Reliable Technology: Incorporates temperature compensation, electrostatic protection (4KV on UART), and complies with IEC 61000-4-2 & JESD22-A114 standards for stable, accurate performance.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Feature: 1.
SMALL BLIND ZONE: The series module is an ultrasonic underwater obstacle avoidance sensor designed for underwater applications, featuring small size, small blind zone and excellent water proof performance. Support protocols and the corresponding baud rate parameters can be modified 2. EASILY AVOID OBSTACLES AT 10M
DEPTH: Replace traditional cameras and meet the underwater obstacle avoidance requirements at normal navigation speeds. Underwater vehicles using obstacle avoidance sensors can achieve true unmanned driving, can be controlled at will without the need for human eyes to observe 3.
APPLICABLE SCENARIO: The ultrasonic underwater ranging detector is suitable for various underwater ranging and obstacle avoidance, as well as self controlled robots 4.
IP68 WATER PROOF: An ultrasonic obstacle avoidance sensor specially designed for underwater applications, featuring an IP68 water proof rating, which is convenient and practical 5.
MULTIPLE FUNCTIONS: The ultrasonic underwater ranging sensor supports the modification of module address, angle and baud rate. Has an electrostatic protecting design and complies with the IEC 61000-4-2 standard
Specification: Item
Type: Ultrasonic Underwater Ranging
Sensor Temperature Compensation: Yes
Water Proof Rating: IP68
Operating Temperature: -15 to 55
Baud Rate: 115, 200 BPS Support modification of module addresses, angles, and baud rates
Electrostatic Protecting: 4KV at UART output, in compliance with the JESD22-A114 standard (human body model) Scope of
Application: Obstacle avoidance and automatic control for underwater robots; Underwater ranging; Underwater cleaning equipment
Standby Current: 15
Average Operating Current: 20mA
Output Response Time: 20ms Power on
Working Time: 1 second
Working Cycle: Controlled
Output Mode: Controlled by UART Measurement Accuracy Within 2
Meters: ±( 0.5 +Sx 0.5 %) Ranging Accuracy From 2
Meters Away:
SMALL BLIND ZONE: The series module is an ultrasonic underwater obstacle avoidance sensor designed for underwater applications, featuring small size, small blind zone and excellent water proof performance. Support protocols and the corresponding baud rate parameters can be modified 2. EASILY AVOID OBSTACLES AT 10M
DEPTH: Replace traditional cameras and meet the underwater obstacle avoidance requirements at normal navigation speeds. Underwater vehicles using obstacle avoidance sensors can achieve true unmanned driving, can be controlled at will without the need for human eyes to observe 3.
APPLICABLE SCENARIO: The ultrasonic underwater ranging detector is suitable for various underwater ranging and obstacle avoidance, as well as self controlled robots 4.
IP68 WATER PROOF: An ultrasonic obstacle avoidance sensor specially designed for underwater applications, featuring an IP68 water proof rating, which is convenient and practical 5.
MULTIPLE FUNCTIONS: The ultrasonic underwater ranging sensor supports the modification of module address, angle and baud rate. Has an electrostatic protecting design and complies with the IEC 61000-4-2 standard
Specification: Item
Type: Ultrasonic Underwater Ranging
Sensor Temperature Compensation: Yes
Water Proof Rating: IP68
Operating Temperature: -15 to 55
Baud Rate: 115, 200 BPS Support modification of module addresses, angles, and baud rates
Electrostatic Protecting: 4KV at UART output, in compliance with the JESD22-A114 standard (human body model) Scope of
Application: Obstacle avoidance and automatic control for underwater robots; Underwater ranging; Underwater cleaning equipment
Standby Current: 15
Average Operating Current: 20mA
Output Response Time: 20ms Power on
Working Time: 1 second
Working Cycle: Controlled
Output Mode: Controlled by UART Measurement Accuracy Within 2
Meters: ±( 0.5 +Sx 0.5 %) Ranging Accuracy From 2
Meters Away:
