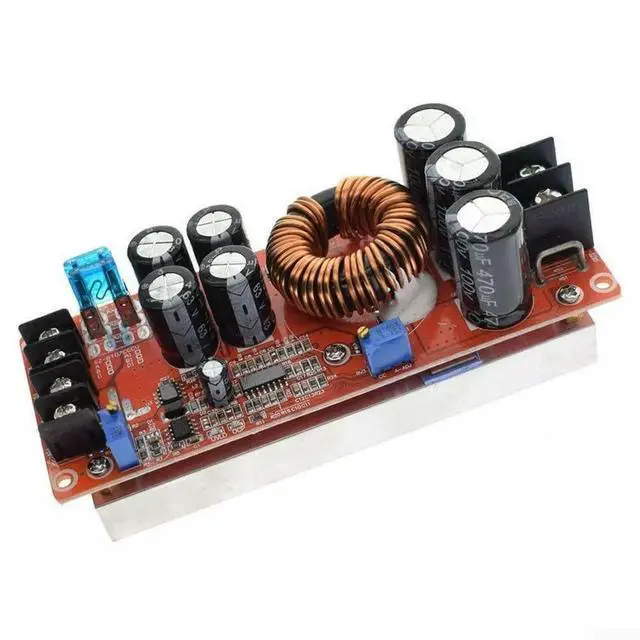

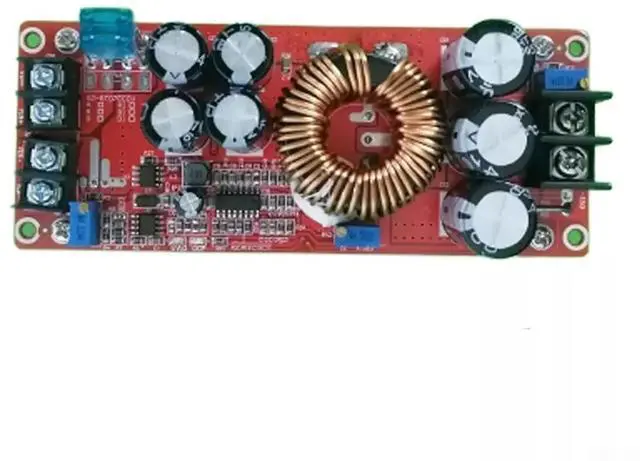

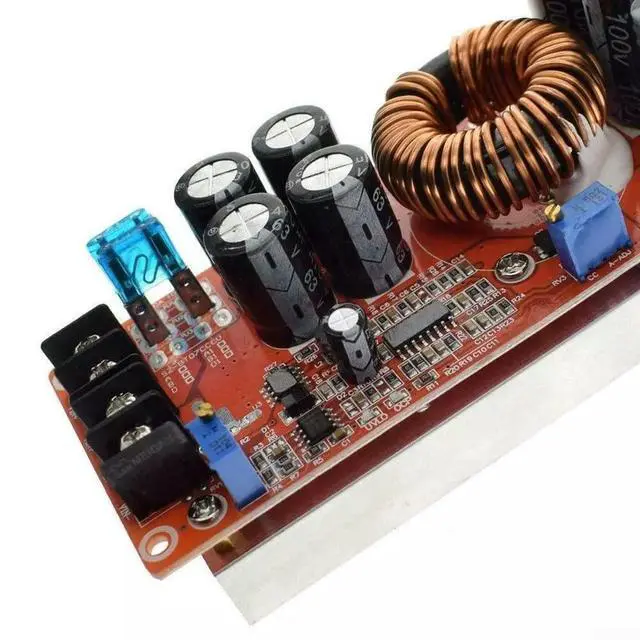

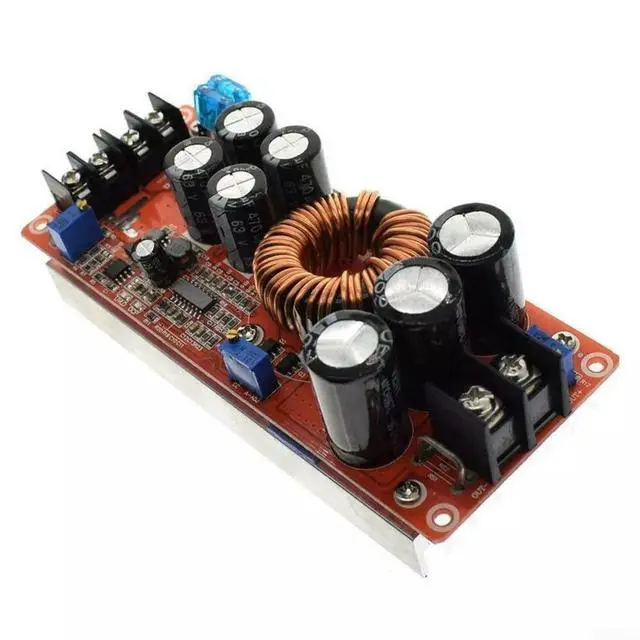

1200W 20A DC Boost Converter Step-up,Power Supply Module IN 8-60V OUT 12-83V,for DIY Electronics, Black
Limited time offer, ends 07/19 By LUOYIMAN
- [POWERFUL OUTPUT OPTIONS] The Step-up Power Supply Module offers a output capability of up to 1200W, making it suitable for high-demand applications requiring reliable power sources.
- [HIGH EFFICIENCY OPERATION] Experience exceptional performance with conversion efficiencies reaching up to 95%, that energy is used effectively for ACROSS all your devices.
- [COMPREHENSIVE PROTECTION FEATURES] With integrated overcurrent and short circuit protection, this module automatically reduces output current when limits are exceeded, enhancing safety during operation.
- [TEMPERATURE RANGE ADAPTABILITY] This unit operates within a wide temperature range of -40 to +85 degrees Celsius, making it enough for various environments while requiring proper heat management.
- [CHECK DIMENSIONS BEFORE USE] for ENSURE compatibility by reviewing the dimensions (116x52x15mm) prior to installation
- proper fitting will enhance performance.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Input voltage * 20A, such
as: input 12V * 20A = 240W, input 24V * 20A = 480W, Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel, The current per module can be adjusted to 15A.

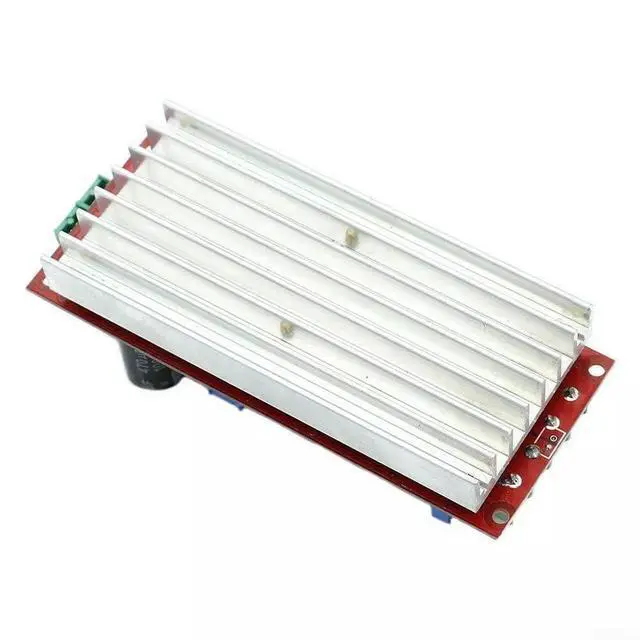

Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)

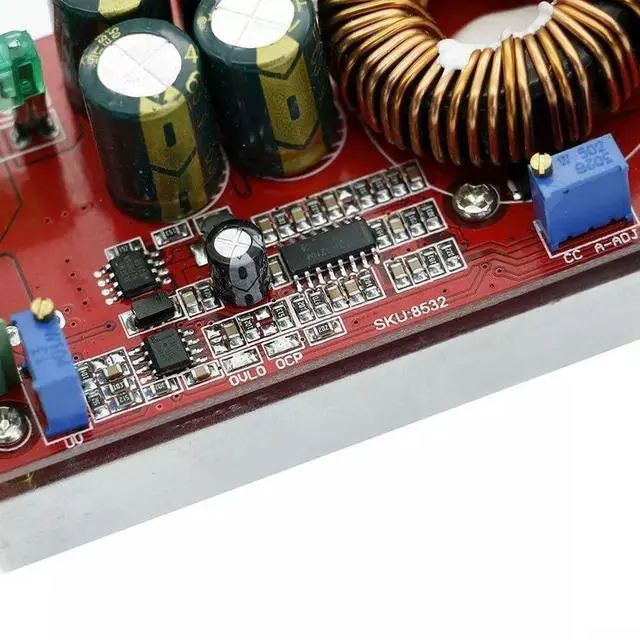

Overcurrent for protection: Yes (with reduced adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be. )
Short circuit for protection: Yes (input 20A fuse) double short circuit for protection, the use of more security.
Input reverse polarity for protection: None, (if necessary, please enter the string into the diode)
Output Counter filling: Yes, for charging plus blocking diode is not required.
Name: Step-up
Power Supply Module Material: Metal
Size: As shown in the picture
Color: Black, Red
Installation: four 3mm screws
Connection: solderless terminals output

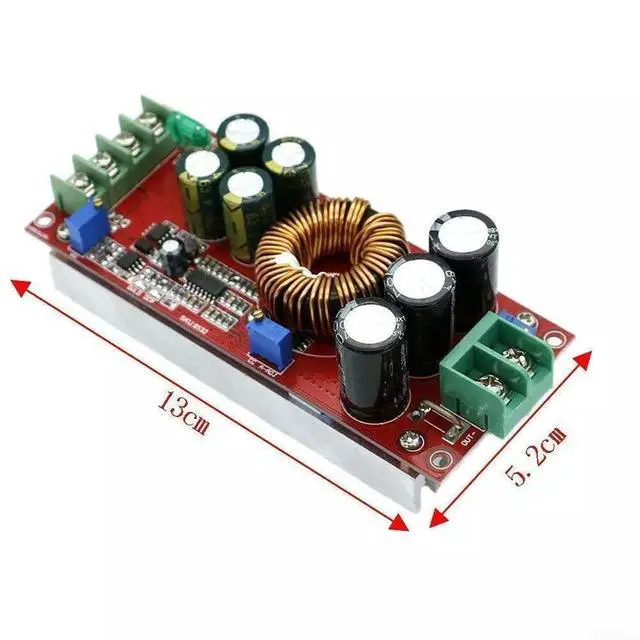

Module dimensions: 116x52x15mm
Input voltage: 8-60V
Input Current: 20A
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-80V continuously adjustable
Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Constant Range: 0.5 -20A
Package Content: 1 x Step-up Power Supply Module
as: input 12V * 20A = 240W, input 24V * 20A = 480W, Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel, The current per module can be adjusted to 15A.
Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)
Overcurrent for protection: Yes (with reduced adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be. )
Short circuit for protection: Yes (input 20A fuse) double short circuit for protection, the use of more security.
Input reverse polarity for protection: None, (if necessary, please enter the string into the diode)
Output Counter filling: Yes, for charging plus blocking diode is not required.
Specifications
: PartName: Step-up
Power Supply Module Material: Metal
Size: As shown in the picture
Color: Black, Red
Installation: four 3mm screws
Connection: solderless terminals output
Module dimensions: 116x52x15mm
Input voltage: 8-60V
Input Current: 20A
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-80V continuously adjustable
Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Constant Range: 0.5 -20A
Package Content: 1 x Step-up Power Supply Module
