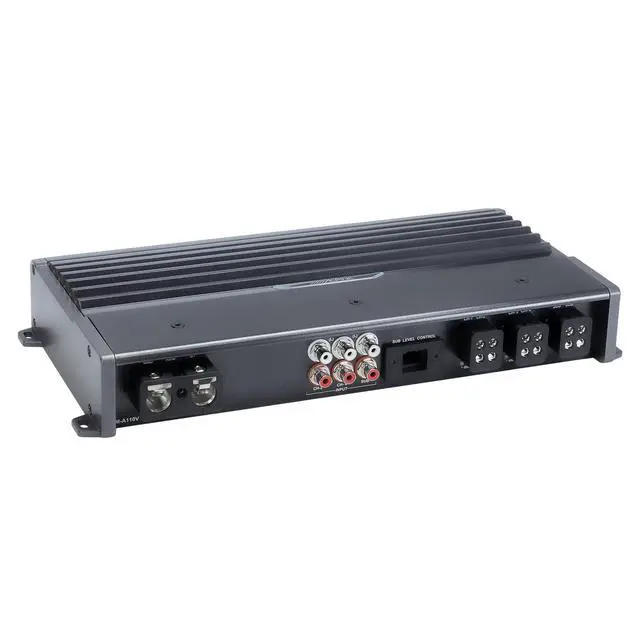

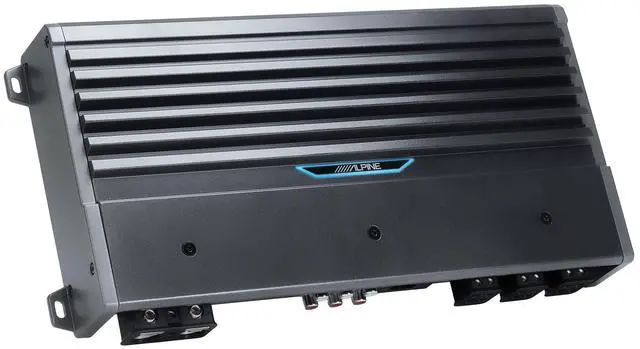

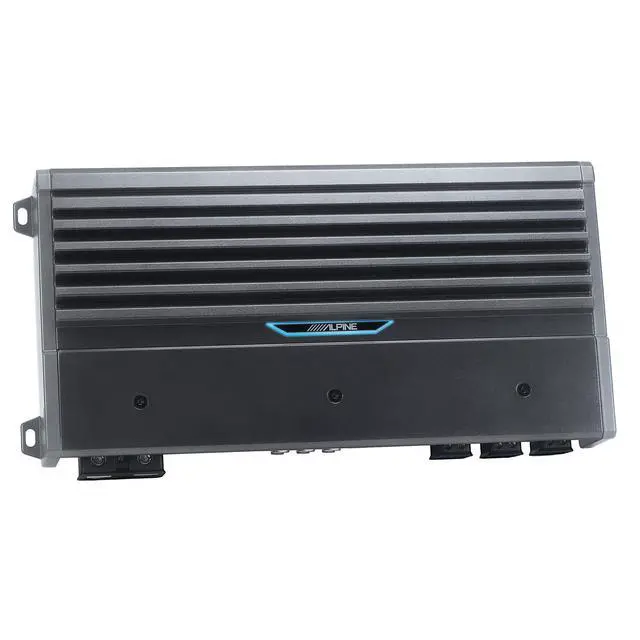

Alpine M-A110V 5-Ch Marine Amplifier w/ 1100W Peak, IPX6 Waterproof Chassis

Power your entire marine audio system from a single amplifier with the Alpine M-A110V. This 5-channel marine amplifier delivers 125 watts RMS to each of four full-range channels and up to 600 watts RMS to a dedicated subwoofer, providing 1,100 watts of combined rated power.



Built for marine environments, the M-A110V features an IPX6-rated waterproof chassis with salt, fog, and UV resistance. Advanced crossover controls, parametric EQ, and independent gain adjustments allow precise system tuning, while automatic thermal protection helps maintain reliable performance during extended playback.



Specifications

Amplifier Type: 5-Channel Marine Amplifier

Combined Rated Power: 1,100W

Power Output @ 4: 125W RMS × 4 + 300W RMS × 1

Power Output @ 2: 125W RMS × 4 + 600W RMS × 1

Subwoofer Output @ 1: 600W RMS × 1

Bridged Power @ 4: 250W RMS × 2

Frequency Response: 10 Hz38 kHz (Channels 14); 10 Hz400 Hz (Channel 5)

Channels 14 Crossover: Off / High-Pass / Low-Pass, 50400 Hz

Channel 5 Low-Pass Filter: 50400 Hz, -24 dB/octave

Channel 5 Subsonic Filter: 1050 Hz, -24 dB/octave

Channel 5 Parametric EQ: 0 to +12 dB, 3080 Hz, Adjustable Q

Input Sensitivity: 200 mV4V (Low Level); 500 mV10V (High Level)

Operating Voltage: 716.5V DC

External Fuse Rating: 120A

Waterproof Rating: IPX6-Rated Chassis

Salt & Fog Resistance: ASTM B117 Tested

UV Resistance: ASTM G154 Tested

Power Terminals: 0 AWG (Compatible with 4 AWG using Included Reducers)

Speaker Output Terminals: 10 AWG

Chassis Dimensions: 12.83" W × 6.5" D × 2.15" H

Overall Dimensions: 13.7" W × 6.87" D × 2.15" H

Mounting Pattern: 13.27" W × 5.1" D (Center-to-Center)

Mounting Spacer Height: Adds 0.3" to Installed Height

Remote Level Control: Optional Alpine RUX-M-UNIV Bass Knob
