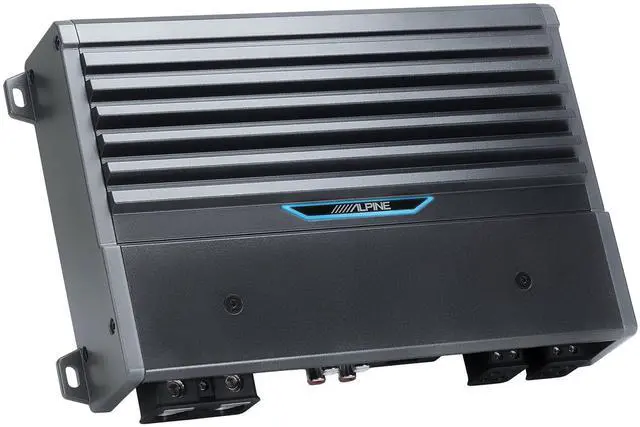

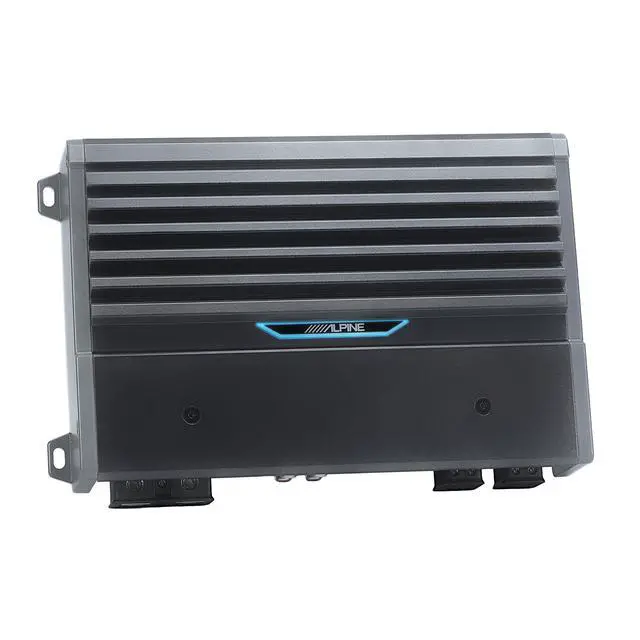

Alpine M-A60F 4-Ch Marine Amplifier w/ 600W of Flexible Power, IPX6 Chassis

Alpine M-A60F 4-Channel Marine Amplifier

The Alpine M-A60F is a versatile 4-channel marine amplifier engineered to deliver reliable, high-output performance on the water. Producing 150 watts RMS per channel at both 4 and 2, or 300 watts RMS x2 when bridged, it offers the flexibility to power four speakers, a speaker-and-subwoofer combination, or bridged amplifier configurations without sacrificing rated output.



Built for harsh marine environments, the M-A60F features an IPX6-rated waterproof chassis with salt, fog, and UV resistance. Independent gain controls with clip indicators, selectable high-pass and low-pass crossovers, bass EQ, and a subsonic filter provide the tuning tools needed to optimize virtually any marine audio system, while advanced thermal management helps maintain dependable performance during extended listening sessions.



Specifications

Amplifier Type: 4-Channel Marine Amplifier

Combined Rated Power: 600W

Power Output @ 4: 150W RMS × 4

Power Output @ 2: 150W RMS × 4

Bridged Power @ 4: 300W RMS × 2

Frequency Response: 10 Hz36 kHz

Channels 14 Crossover: Off / High-Pass / Low-Pass, 50400 Hz

Crossover Slope: -12 dB/octave

Channels 3/4 Subsonic Filter: 1050 Hz

Channels 3/4 Bass EQ: 0 to +12 dB @ 45 Hz

Input Sensitivity: 200 mV4V (Low Level); 500 mV10V (High Level)

Operating Voltage: 716.5V DC

External Fuse Rating: 60A

Power Terminals: 0 AWG (Compatible with 4 AWG Using Included Reducers)

Speaker Output Terminals: 10 AWG

Waterproof Rating: IPX6-Rated Chassis

Salt & Fog Resistance: ASTM B117 Tested

UV Resistance: ASTM G154 Tested

Chassis Dimensions: 9.69" W × 6.5" D × 2.15" H

Overall Dimensions: 10.55" W × 6.87" D × 2.15" H

Mounting Pattern: 10.12" W × 5.1" D (Center-to-Center)

Mounting Spacer Height: Adds 0.3" to Installed Height

Remote Level Control: Optional Alpine RUX-M-UNIV Adjusts Channels 3/4 Output Level
