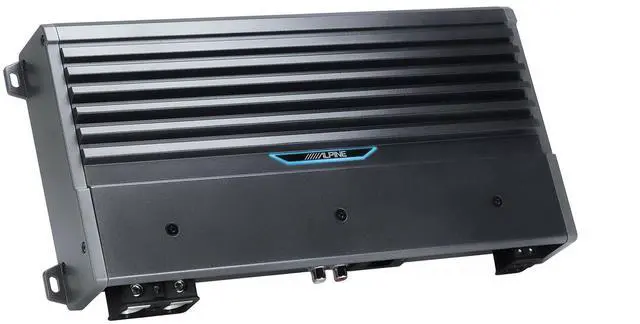

Alpine M-A120M 1200W Mono Marine Amplifier with IPX6 Waterproof Chassis

The Alpine M-A120M is a high-performance mono marine amplifier built to deliver powerful, controlled bass in demanding marine environments. Producing 1,200 watts RMS at both 2 and 1, or 600 watts RMS at 4, it provides flexible power for one or two compatible marine subwoofers.



Designed for life on the water, the M-A120M features an IPX6-rated waterproof chassis with salt, fog, and UV resistance, along with a watertight control cover and protective terminal boots. Adjustable low-pass and subsonic filters, a fully adjustable parametric EQ, and a gain-setting clip indicator make system tuning straightforward, while advanced thermal protection helps maintain reliable performance during extended listening sessions.



Specifications

Amplifier Type: Mono Marine Subwoofer Amplifier

Power Output @ 4: 600W RMS × 1

Power Output @ 2: 1,200W RMS × 1

Power Output @ 1: 1,200W RMS × 1

Frequency Response: 10 Hz400 Hz

Low-Pass Filter: 50400 Hz, -24 dB/octave

Subsonic Filter: 1050 Hz, -24 dB/octave

Parametric EQ: 0 to +12 dB, 3080 Hz, Adjustable Q

Input Sensitivity: 200 mV4V (Low Level); 500 mV10V (High Level)

Operating Voltage: 716.5V DC

External Fuse Rating: 120A

Power Terminals: 0 AWG (Compatible with 4 AWG Using Included Reducers)

Speaker Output Terminals: 10 AWG

Waterproof Rating: IPX6-Rated Chassis

Salt & Fog Resistance: ASTM B117 Tested

UV Resistance: ASTM G154 Tested

Chassis Dimensions: 12.83" W × 6.5" D × 2.15" H

Overall Dimensions: 13.7" W × 6.87" D × 2.15" H

Mounting Pattern: 13.27" W × 5.1" D (Center-to-Center)

Mounting Spacer Height: Adds 0.3" to Installed Height

Remote Level Control: Compatible with Optional Alpine RUX-M-UNIV Bass Knob
