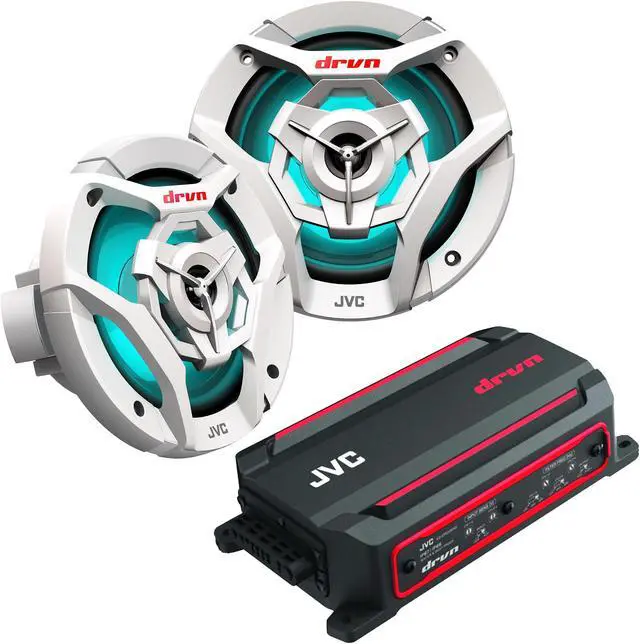

JVC KS-DR2004D 4-Channel Compact Digital Amplifier 50W RMS x 4 @ 4 ohms with 2 Pairs CS-DR621MWL 6.5" Marine Speakers w/ White Grills and LED lighting for Car, Marine, UTV and Motorcycle

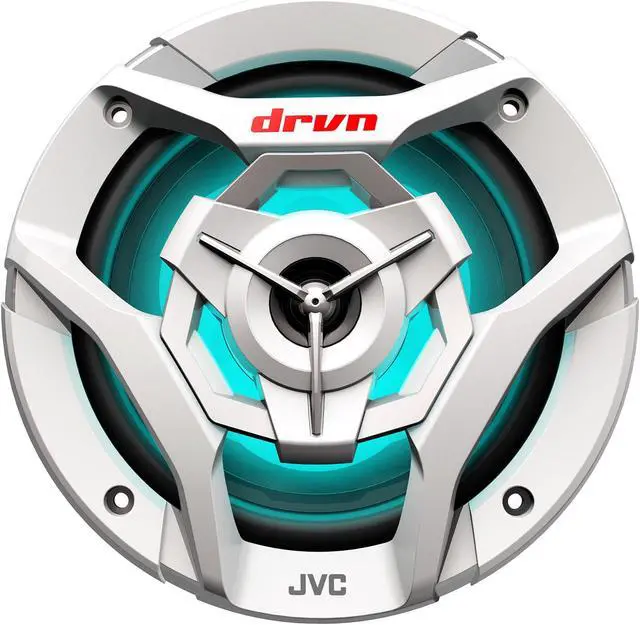

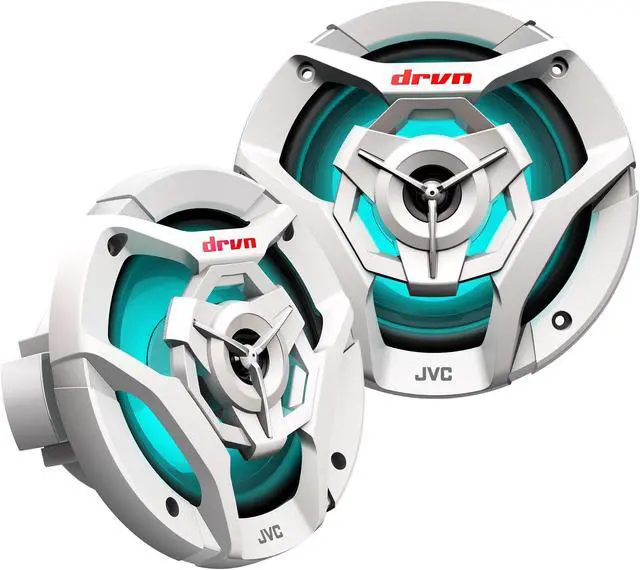

JVC CS-DR621MWL 6.5inch 2-Way Coaxial Speakers With RGB LED Illumination / Water Resistant (IPX5) / UV Resistant Woofers / Peak Power 260W / RMS Power 75W -


Woofer -

Size: 16cm (6-1/2")

Diaphragm: PP injection cone

Surround: Rubber

Magnet: Ferrite



Tweeter -

Size: 13 mm (1/2")

Type: Balanced Dome

Magnet: Neodymium



General -

IPX (Mounted Speaker): IPX5

Frequency Response: 65-21,000Hz

Power Handling Capacity (RMS): 75W

Power Handling Capacity (Peak Power): 260W

Impedance: 4 ohms

Sound Pressure Level: 86dB

Mounting Depth: 64.9mm (2-9/16")



JVC KS-DR2004D 4-Channel 200 Watt Compact Digital Amplifier for Compact Car, Marine, UTV and Motorcycles -

Audio unit

Max Power Output: 600W

Rated Power Output: Stereo (4) 50W x 4 (20Hz20kHz, 1.0% THD), Stereo (2) 75W x 4 (1kHz, 1.0% THD), Bridged (4) 150W x 2 (1kHz, 1.0% THD)

Speaker Impedance: 4 (2 to 8 allowable), (Bridged connection: 4 to 8 allowable)

Frequency response (+0, 3dB): 10Hz35kHz

Input Sensitivity (RCA): 0.2V-5.0V

Signal to noise ratio: 89dB

Low pass filter frequency (12dB/oct.): 50Hz200Hz (variable)

High pass filter frequency (12dB/oct.): 50Hz200Hz (variable)



General

Operating voltage: 12V DC car battery

Current consumption: 26A

Operational temperature range: 10°C 60°C

Dimensions (W × H × D): 7-13/16" x 1-15/16" x 4-1/8"

Weight: 1.6kg (3.5lbs)

Waterproof & Dustproof: IP66, IP67
