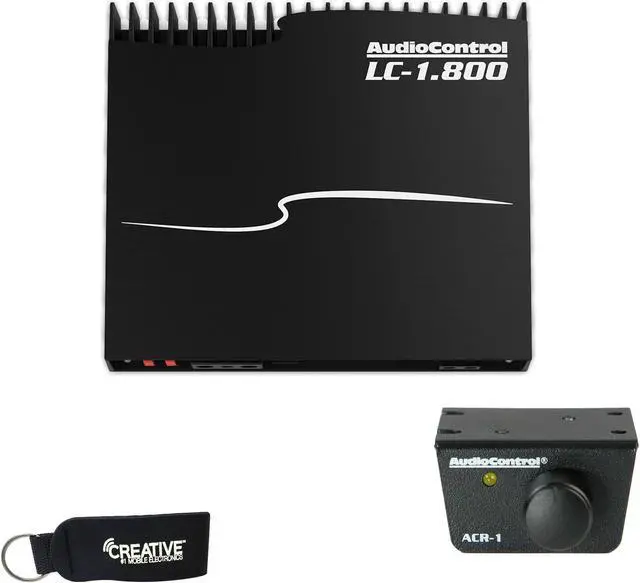

AudioControl LC-1.800 High-Power Mono Subwoofer Amplifier with Accubass & ACR-1 Dash Remote

This bundle includes an AudioControl LC-1.800 High-Power Subwoofer Amplifier with Accubass & an ACR-1 Dash Remote.


AudioControl LC-1.800 High-Power Mono Subwoofer Amplifier with Accubass

When you demand the perfect blend of power and performance, AudioControl provides answers and the LC-1.800 is no exception.



No matter the install, you can be assured power will meet and exceed expectations with 800 watts at 2 ohms. The mix of high level and low level inputs mean you have the widest input voltage range in the industry. AudioControls patented AccuBASS® circuit is the only way to properly overcome factory bass roll-off and heavily equalized factory bass settings.



Enjoy loud, clean and articulate bass combined with the best warranty available with the LC-1.800 amplifier.


FEATURES


Subwoofer amplifier with patented AccuBASS®

800 watts @ 2 ohms

500 watts @ 4 ohms

AccuBASS® Processing

GTO Signal Sense

24 dB/octave Linkwitz-Riley Alignment crossover



SPECIFICATIONS

INPUTS



Preamp Inputs: 2 balanced

Input Voltage Range: 500 mV 6 Vrms



OUTPUTS



Rated Continuous (RMS) Power at 14.4V:

4 500 W RMS

2 800 W RMS



PERFORMANCE



Frequency Response: 10 Hz 30 kHz

Signal to Noise: 102 dBa, Ref 500 W @ 4 Ohm

Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz

THD+N: < 0.01%

Minimum Power / Ground Wire Gauge: 3 AWG wire

Fuse Rating: 2 x 40 A

Crossover: 24 dB/octave Linkwitz-Riley, Adjustable From 30 Hz 230 Hz

PFM Subsonic Filter: 24 Hz






AudioControl ACR-1 Dash Remote

Add remote level control for your AudioControl processor or amplifier. This is the replacement remote for the Epicenter. Comes with a 20 foot cable and removable mounting enclosure (for custom dash installations).
