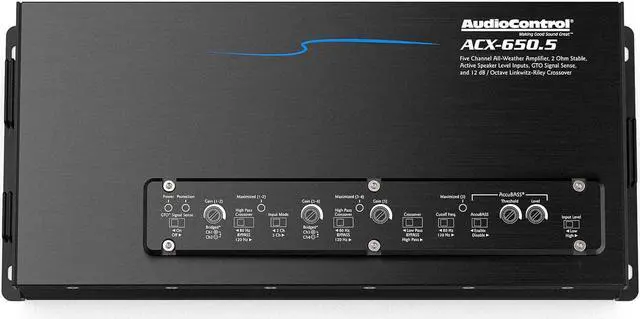

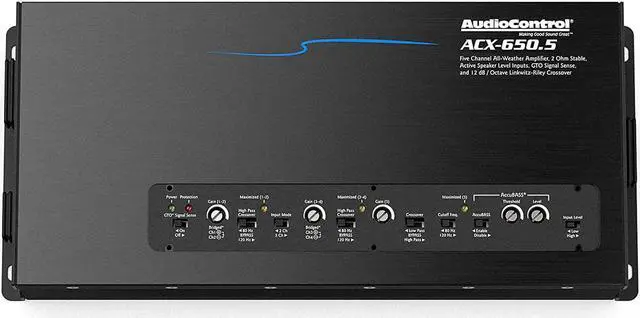

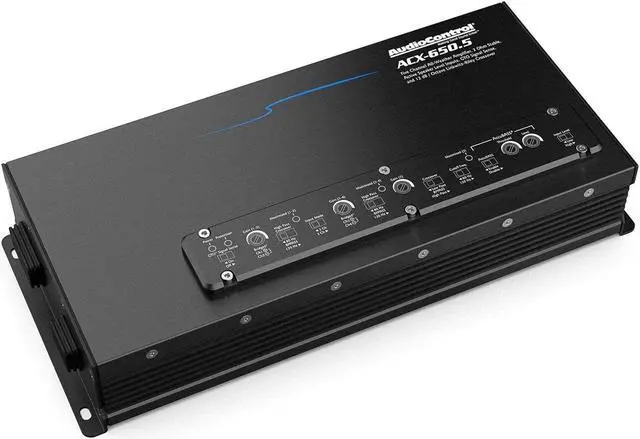

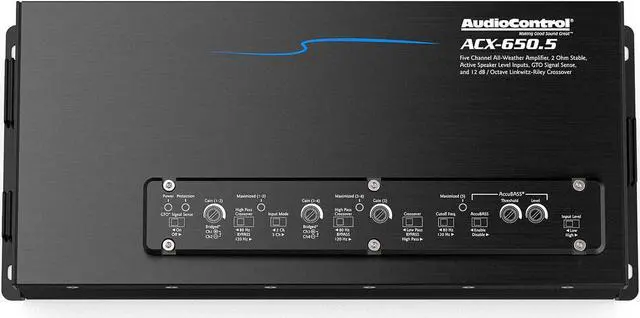

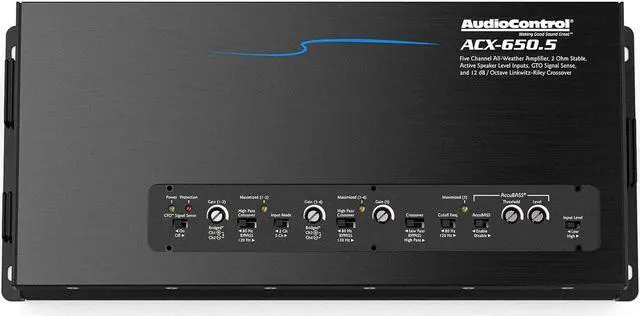

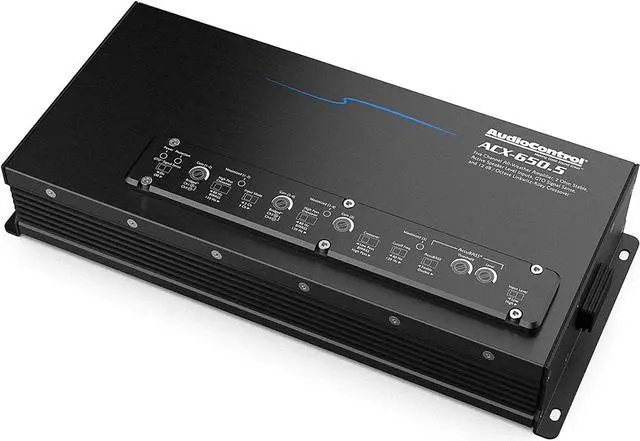

AudioControl ACX-650.5 5-channel powersports/marine amplifier 50 watts RMS x 4 at 4 ohms + 350 watts RMS x 1 at 2 ohms

AudioControls ACX-650.5 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-650.5 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-650.5 all-weather amplifier the perfect solution for your next adventure.



Features

4 x 50 Watts @ 4 Ohms, 1 x 200 Watts @ 4 Ohms

4 x 75 Watts @ 2 Ohms, 1 x 350 Watts @ 2 Ohms

2 x 150 Watts @ 4 Ohms, Bridged Mono

IPX6 Rated

AccuBASS® bass management

GTOTM Signal Sense

High and low input modes

Linkwitz-Riley Crossover

Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)



Specifications

Inputs

Preamp/Speaker Level Inputs: 6

Input Voltage Low: 500 mV 6 Vrms

Input Voltage Range High: 1 Vrms 12 Vrms



Outputs

Rated Continuous (RMS) Power at 14.4V: 4 50 W x 4 + 200 W x 1, 2 75 W x 4 + 350 W x 1, Bridged 4 150 W x 2



Performance

Frequency Response: 26 Hz 22 kHz

Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm

THD+N: < 0.05%

Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass

IP Rating: IPX6



General

Recommended Fuse Rating: 30A



Weights & Dimensions

Dimensions: 11.97W x 5.31D x 2.36H

Weight: 5.8 lbs. (2.63 kg)
