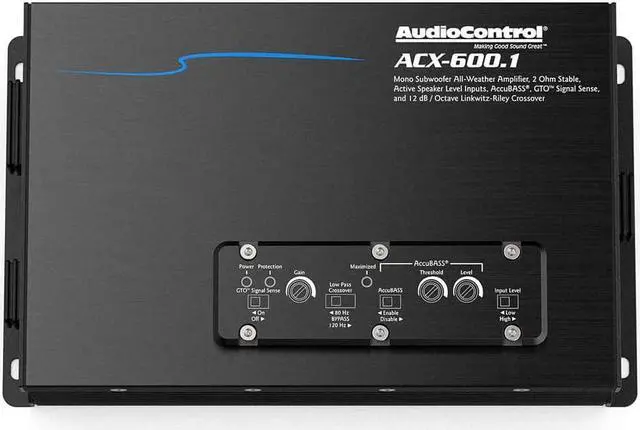

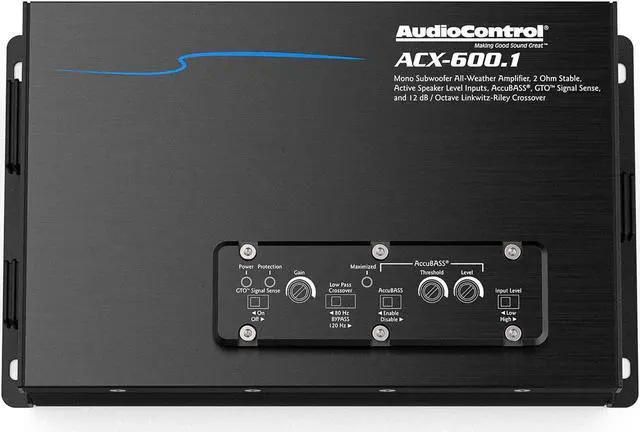

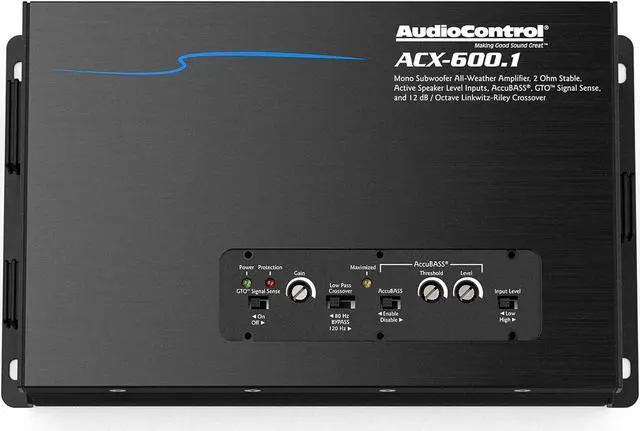

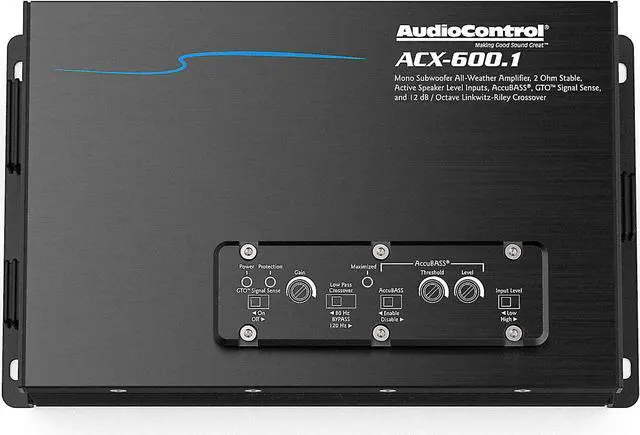

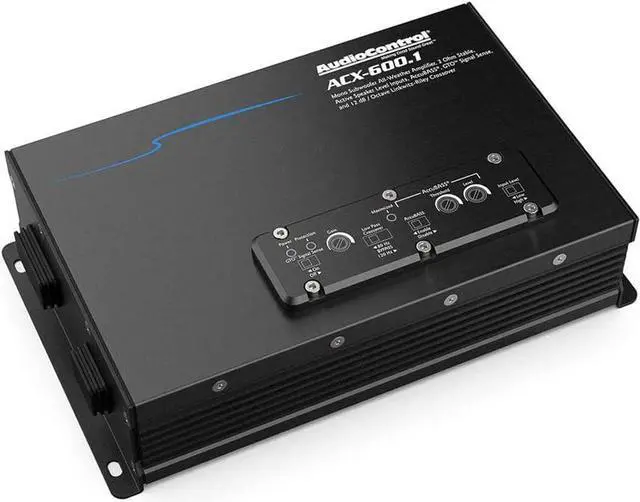

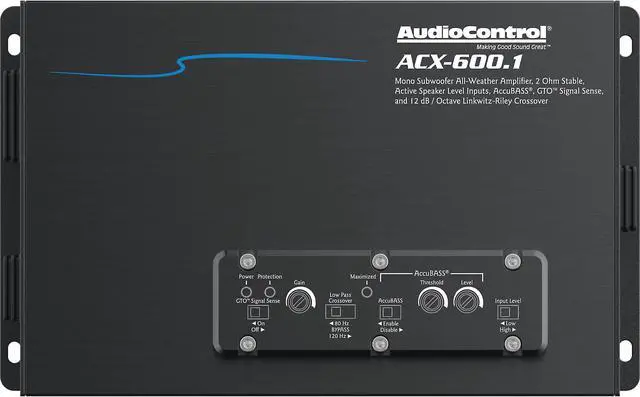

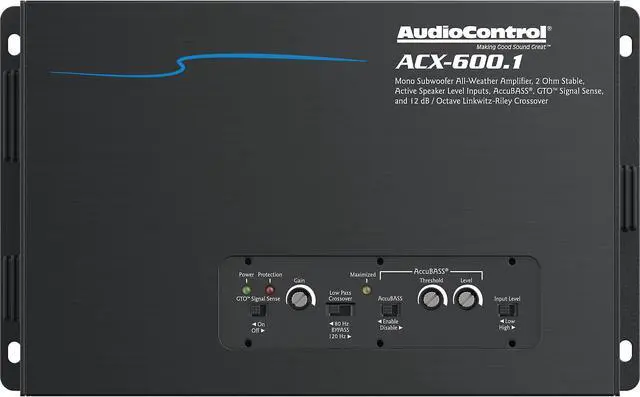

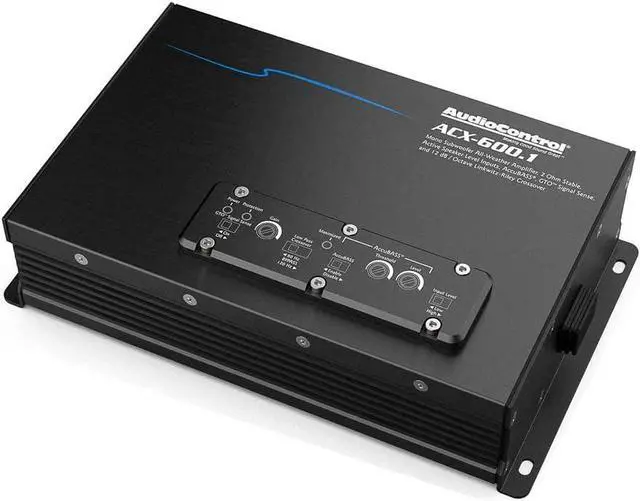

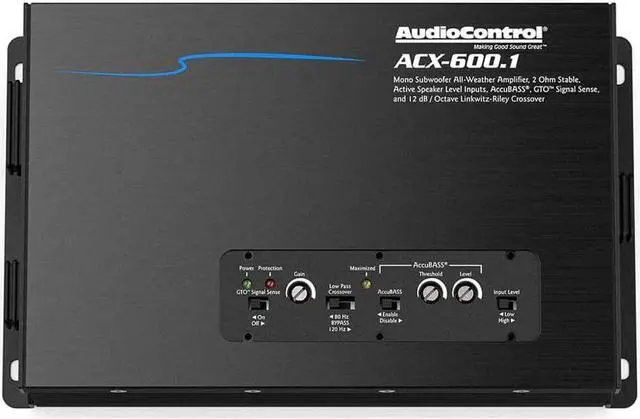

AudioControl ACX-600.1 Mono powersports/marine amplifier 600 watts RMS x 1 at 2 ohms

AudioControls ACX-600.1 all-weather monoblock amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.1 all-weather monoblock amplifier the perfect solution for your next adventure.



Features

1 x 350 watts @ 4 Ohms

1 x 600 Watts @ 2 Ohms

IPX6 Rated

GTOTM Signal Sense

Optional wired ACR-1 Remote Control for Output Level

High and low input modes

Linkwitz-Riley Crossover

Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)



Specifications

Inputs

Preamp/Speaker Level Inputs: 2

Input Voltage Low: 500 mV 6 Vrms

Input Voltage Range High: 1 Vrms 12 Vrms



Outputs

Rated Continuous (RMS) Power at 14.4V: 4 350 W x 1, 2 600 W x 1



Performance

Frequency Response: 26 Hz 22 kHz

Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm

THD+N: < 0.05%

Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass

IP Rating: IPX6



General

Recommended Fuse Rating: 30A



Weights & Dimensions

Dimensions: 8.89W x 5.31D x 2.36H

Weight: 4.45 lbs. (2.02 kg)
