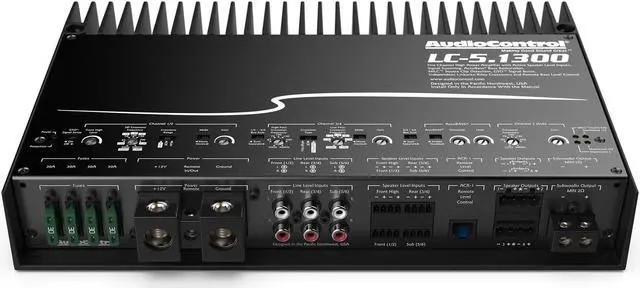

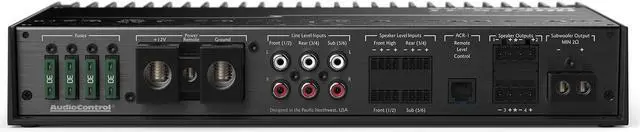

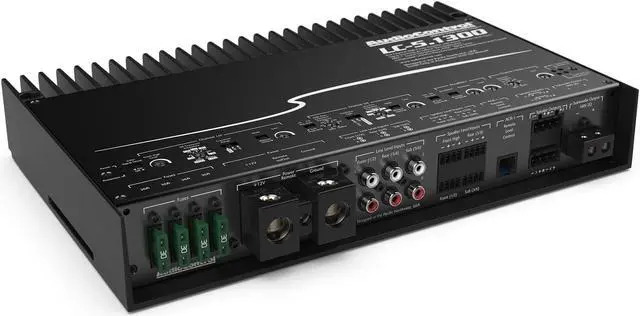

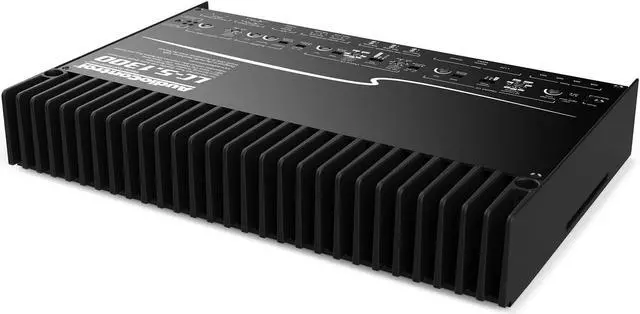

AudioControl LC-5.1300 High-power Multi-channel Amplifier With Accubass®

The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.



Features

Configurable as 5 or 3 channel amplifier

4 x 200 watts + 1 x 500 watts @ 2 ohms

4 x 100 watts + 1 x 300 watts @ 4 ohms

400 watts @ 4 ohms bridged

AccuBASS® Processing

MILCTM Maximum Input Level Control (Patent Pending)

GTOTM Signal Sense

3-way Independent Linkwitz-Riley Alignment crossovers

Summable active speaker-level inputs (8 channels) for OEM integration

6 preamp inputs

PFM Subsonic Filter

Optional ACR-1 assignable remote control

Solid One-Piece Aluminum Chassis



Specifications

Inputs

Preamp Inputs: 6 balanced

Preamp Input Voltage Range: 500 mV 6 Vrms

Speaker Level Inputs: 8

Speaker Level Input Voltage Range: 3 V 40 Vrms

Outputs

Rated Continuous (RMS) Power at 14.4V:

4 100 W x 4 + 300 W x 1

2 200 W x 4 + 500 W x 1

Bridged 4 400 W

Performance

Frequency Response: 20 Hz 22 kHz

Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm

THD+N: < 0.1%

Minimum Power / Ground Wire Gauge: 3 AWG wire

Fuse Rating: 4 x 30 A

Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz 5000 Hz

Weights & dimensions

Dimensions: 12.0W x 8.0D x 2.1H

Weight: 7.2lbs. (3.3kg)

In the box: LC-5.1300, Speaker Connectors, Fuses, Manual, Warranty
