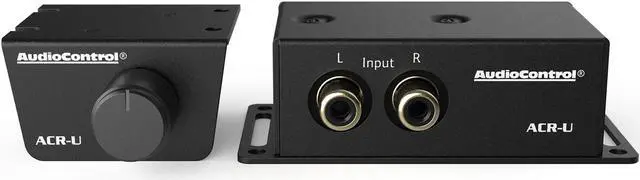

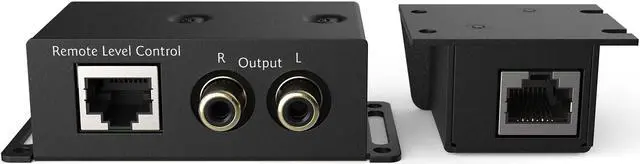

AudioControl ACR-U Universal Remote Level Control

The ACR-U is a universal remote level control which can be inserted into any line-level signal path. The ACR-U can be surface or custom-mounted to add subwoofer level control, zone level control, total system volume control, and more to your audio system. Installation is simple and no power is required.



Included is a half meter Cat5e cable. Any Cat5e cable up to 300 feet in length may be used. This means the ACR-U Remote can be mounted far from the ACR-U Hub and all RCA connections can remain short, ensuring low noise and excellent signal integrity.



Features:

Precise and tactile remote level control for any application

Add volume control to line level sources

Remote can be mounted up to 300 feet from hub



Specifications:

Inputs

Line Level Inputs: 1 (2 channels)



Outputs

Line Level Outputs: 1 (2 channels)



Performance

Insertion Loss: 0.017 dB

Attenuation Range: -97 dB



Weights & Dimensions

Dimensions:

Remote: 1.75W x 2.0D x 1.0H

Hub (including RCA jacks): 3.2W x 2.1D x 1.0H

Weight: 2.3oz (65.2g)



In The Box: ACR-U Remote, ACR-U Hub, 0.5 Meter Cat5e Cable, Quick Start Guide, Warranty
