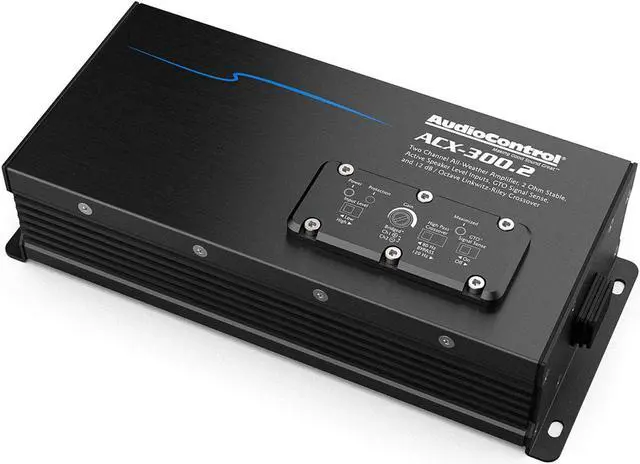

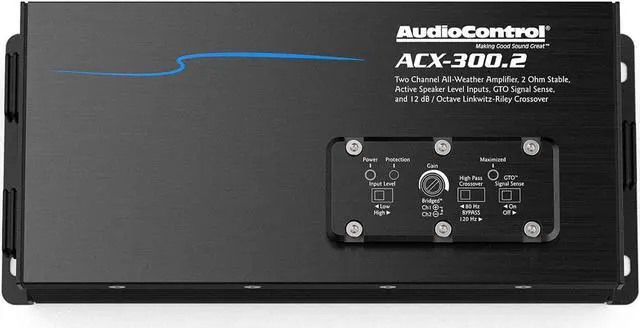

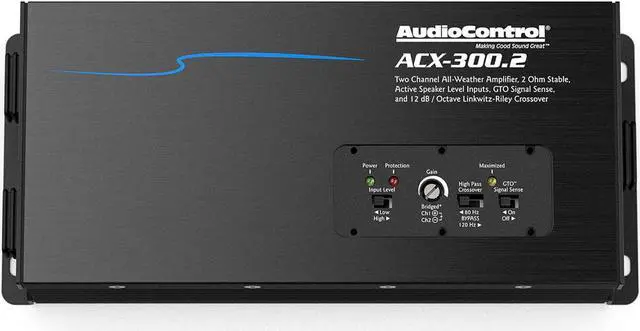

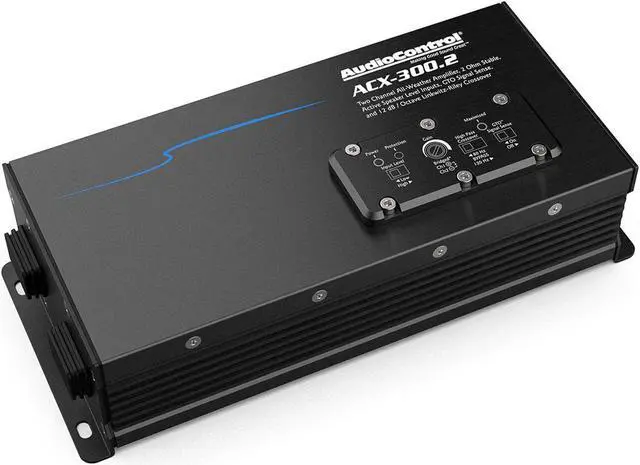

AudioControl ACX-300.2 All Weather 2-Channel Amplifier

AudioControls ACX-300.2 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-300.2 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.2 all-weather amplifier the perfect solution for your next adventure.



Features -

2 x 75 watts @ 4 ohms

2 x 150 watts @ 2 ohms

1 x 300 watts @ 4 ohms bridged

IPX6 Rated

GTOTM Signal Sense

High and low input modes

Linkwitz-Riley Crossover

Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)



Inputs -

Preamp/Speaker Level Inputs: 2

Input Voltage Low: 500 mV 6 Vrms

Input Voltage Range High: 1 Vrms 12 Vrms



Outputs -

Rated Continuous (RMS) Power at 14.4V:

4 75 W x 2

2 150 W x 2

Bridged 4 300 W x 1



Performance -

Frequency Response: 26 Hz 22 kHz

Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm

THD+N: < 0.05%

Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass

IP Rating: IPX6
