ATG Powersports Monoblock Subwoofer Amplifier 500W at 2-Ohms bundle includes 8 gauge wire kit

ATG Powersports Monoblock Subwoofer Amplifier 500W at 2-Ohms bundle includes 8 gauge wire kit - This bundle includes: ATG Audio Moto/Marine Monoblock Subwoofer Amplifier 500W @ 2-Ohms - ATGM1, and ATG Audio 8 Gauge Soft-Touch Amplifier Wiring Kit with AGU Fuseholder - ATG8AGU.

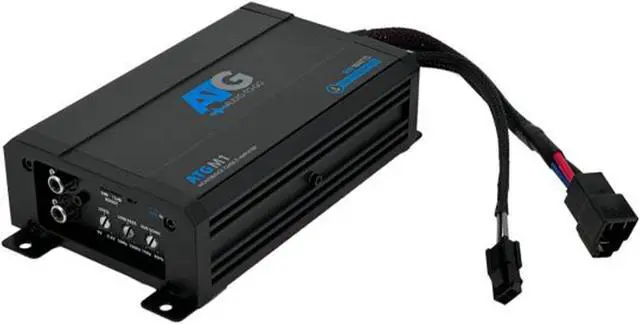

ATG Audio Moto/Marine Monoblock Subwoofer Amplifier 500W @ 2-Ohms - ATGM1

Specifications -

Output Power @ 14.4 VDC, 2-Ohms 1 x 500W

Output Power @ 14.4 VDC, 4-Ohms 1 x 250W

Power Supply Input Voltage 12.0VDC to 14.8VDC

Mono Class D Technology

2-Ohms Mono load Capability

Marine Grade Nickel Plated RCA connectors

Variable 12db Low-pass crossover

Selectable 12dB Bass Boost

Variable Sub-sonic Filter

Marine Grade Conformal Coated Double Sided PCB

Compatible with any 4/2-Ohms Subwoofer

THD (1KHz @ 4-Ohms): 0.04%

Bandwidth (-3 dB): 18Hz - 22KHz

Damping Factor (1KHz @ 4-Ohms): 100

S/N ratio (as weighted @ 1 Volt): 99db

Input Sensitivity: .0.2MV - 6V

Minimum Load Impedance: 2-Ohms

Low-Pass filter range: 50Hz - 150Hz

Sub-Sonic Filter Range: 15Hz - 50Hz

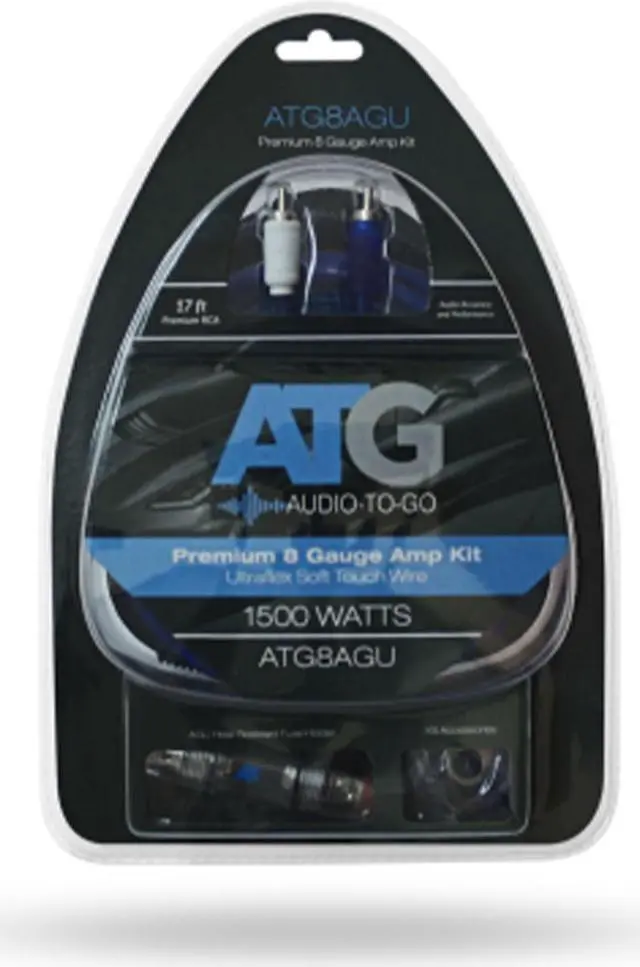

ATG Audio 8 Gauge Soft-Touch Amplifier Wiring Kit with AGU Fuseholder - ATG8AGU

Specifications -

Weight: 2.000000

Series: ATG Core

Wire Gauge: 8 Ga.

RCA Cable Length: 17"

Ground Cable: 3" 8 Ga. Black Super Flex-Soft Touch

Power Cable: 17" 8 Ga. Red Super Flex-Soft CCA Touch

Remote Wire: 17" 18 Ga. Blue Remote Wire

Speaker Wire: 20" 16 Ga. Premium

ANL Gold Plated Fuse: 40 Amp

Fuse Holder: ANL Heat Resistant

Wire Voltage Rating: 12 - 48 Volts

Accessories: 6" Split Loom , Wire Ties, & Accessories

Master Carton: 12

Packed: Blister Shell
