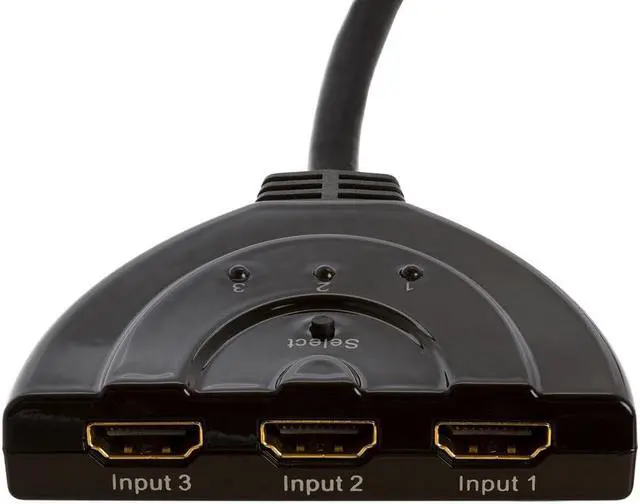

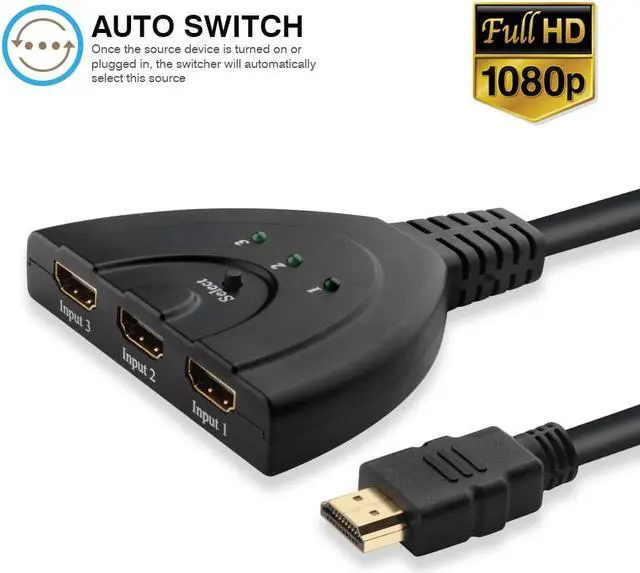

Cmple - HDMI 3 Ports Pigtail Switch (3X1)

Cmple 3x1 HDMI Switch

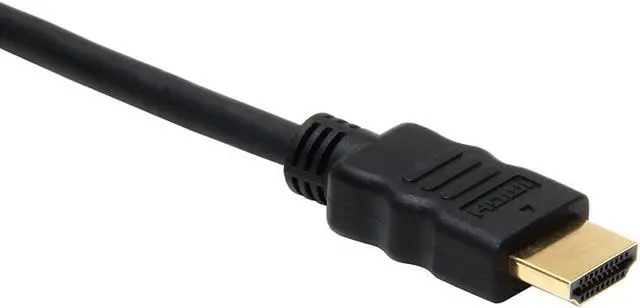

Our Cmple high-performance HDMI Switchers can easily switch two or three sources to one display. It not only has the key-press-switching function but also has an intelligent function. With one fixed HDMI cable (pigtail) this converter not only reduces cost but also save time for consumers.



This kind of HDMI Switcher routes high-definition video (in multiple resolutions up to 1080p) and digital audio from any one of the two sources to display units.



Compatible with HDTV, DVD, SKY-STB, PC, Laptop, Gaming Console, etc. The output sends the high-definition audio/video signals to a high-definition display.



Specifications:



Input Video Signal: 0.5-1.0 volts p-p

Input DDC Signal: 5 volts p-p (TTL)

Maximum Single Link Range: 1920X1200, 1080p

Output Video: HDMI 1.3b + HDCP 1.0/1.1

DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p

HDMI Compliance: HDMI 1.3a

Video Amplifier Bandwidth: 2.5Gpbs/250MHz

Vertical Frequency Range: 50/60Hz

Interlaced resolution (50&60Hz): 480i, 576i, 1080i

Progressive resolution (50&60Hz): 480p, 576p, 720p, 1080p

Operating Temperature: 0°C to +70°C

Operating Humidity: 10% to 85% RH (no condensation)

Storage Temperature: -10°C to +80°C

Storage Humidity: 5% to 90% RH (no condensation)

Converter Unit: FCC,CE,UL

HDMI pass-through

HDCP pass-through
