JMT USB4 Graphics Docking Station with 2.5Gbps RJ45 Ethernet Port + USB-A 10Gbps Port +SD/TF Card Slot Compatible with Thunderbolt 4 3 C3893-1

JMT USB4 Graphics Docking Station with 2.5Gbps RJ45 Ethernet Port + USB-A 10Gbps Port +SD/TF Card Slot Compatible with Thunderbolt 4 3 C3893-1

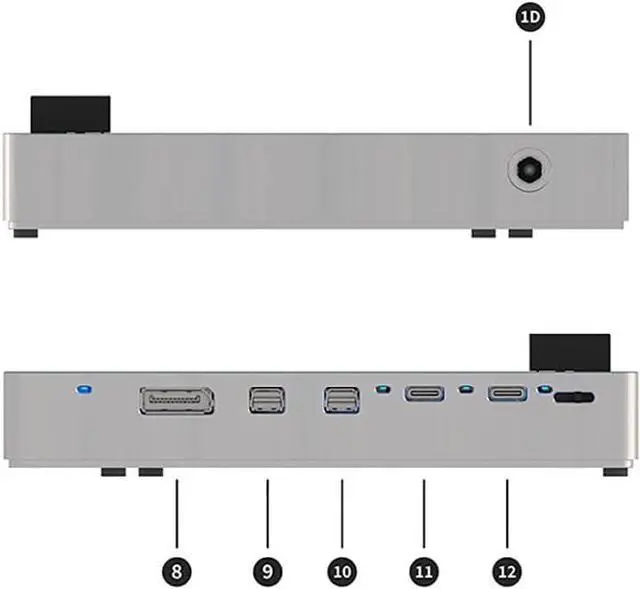

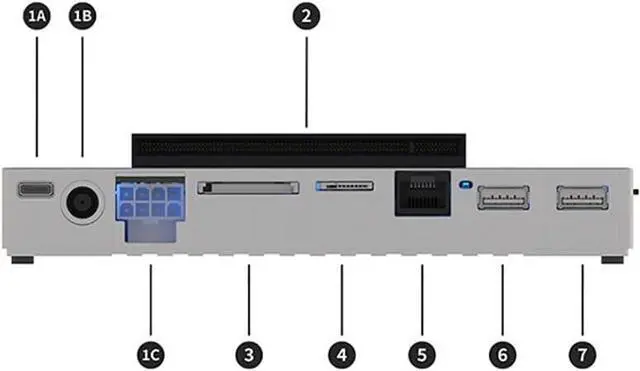

Connector Type.
1A: USB-C PD power supply input
1B: DC745020V power input terminal
1C: 8PIN bidirectional power supply port
1D: DC552520V power supply input
2: Side-insert PCIExpress 3.0×16 slot
3: U HS-II SD card slot
4: U HS-II TF card slot
5: RJ45 2.5Gbps Ethernet port
6: USB-A 10Gbps port
7: USB-A 10Gbps port
8: DP1.4 output port
9: miniDP1.4 input port
10: miniDP1.4 Input Port
11: Interface Compatible with Thunderbolt
12: Interface Compatible with Thunderbolt
Detailed Description.
Must be connected to USB-c power adapter with PD protocol, the port supports PD3.0 20V5A 100W power supply (backward compatible).
Must be plugged into an adapter with a power supply voltage of 19V~20V and an interface of DC7450 specification.
Standard CPU 8PIN ATX power connector, can be automatically switched in input/output mode.
Slot specification is x16, the actual maximum support PCle3.0x4 24Gbps link rate (backward compatible).
[1] Ports 1A, 1B, 1C, and 1D can all be used to power the docking station, just choose one of them during actual use.
[2] When port 1C is used for power supply output, please make sure that one of ports 1A, 1B and 1D is plugged into the power supply, and the maximum output power of this port should not exceed the power supply of input power or 330W limit.
