ViewHD Advanced HDMI 150M Single Ethernet Cable Extender Set | Model: VHD-HE150M

The VHD-HE150M extender uses one standard CAT6/7(cable length up to 150M) to transmit the HDMI signal (up to 1080P) from one HDMI source to a remote display. It adopts TCP/IP protocol to send HDMI signal through local area network, therefore the setup can have one transmitter (VHD-HD150MTX) to multiple receivers (VHD-HE150MRX) through Ethernet switcher / router. Also it can return the received IR signal at the receiver to the transmitter for remote control of the HD source unit.

Features:
* Support video input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
* Signal transmission: use one cat6/7(recommend cat6) to connect the transmitter and receiver, support cable range up to 150m with cat6 grade shielded cable
* Support point to point (TX to RX unit directly) or point to multi-point (TX to Ethernet switch / router to multiple RX units)
* Support resolution up to 1080P/60Hz; does not support 3D
* Support 24/30/36Bit
* Support video output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
* Support IR extender to enable remote control of the HDMI source
* Supports 802.3 IEEE Standard
* CAT connections according to IEEE-568B
* Support additional distance with help of the Ethernet switcher / router
* Can support multiple receiver units in an Ethernet switch / router setup
* LED status light indication
* No loss of quality

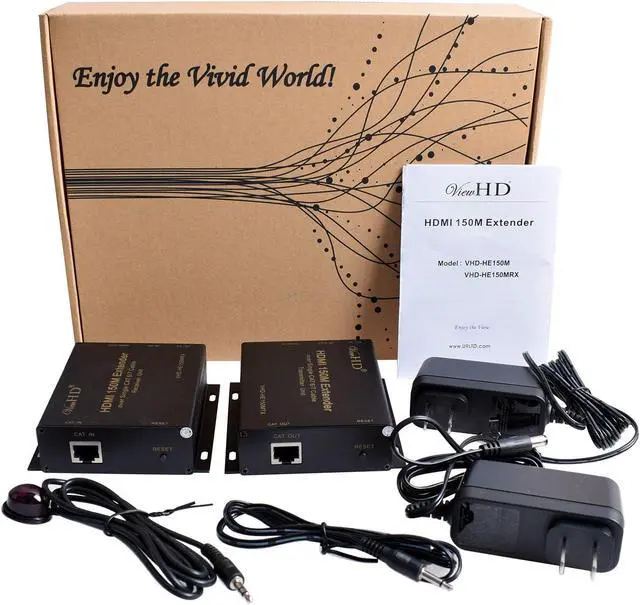

Package Includes:

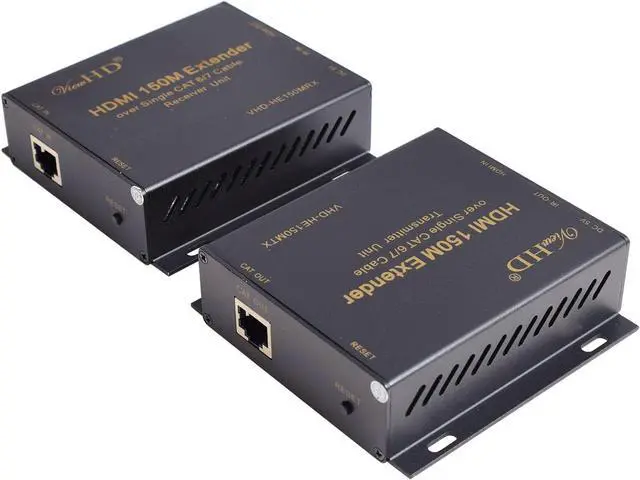

1) One VHD-HE150MTX transmitter unit
2) One VHD-HE150MRX receiver unit; additional receiver unit is available for purchase
3) One IR receiver cable and one IR transmitter cable
4) Two DC5V/1A (100V - 240V) power adapter with US plug for receiver and transmitter
5) User manual
