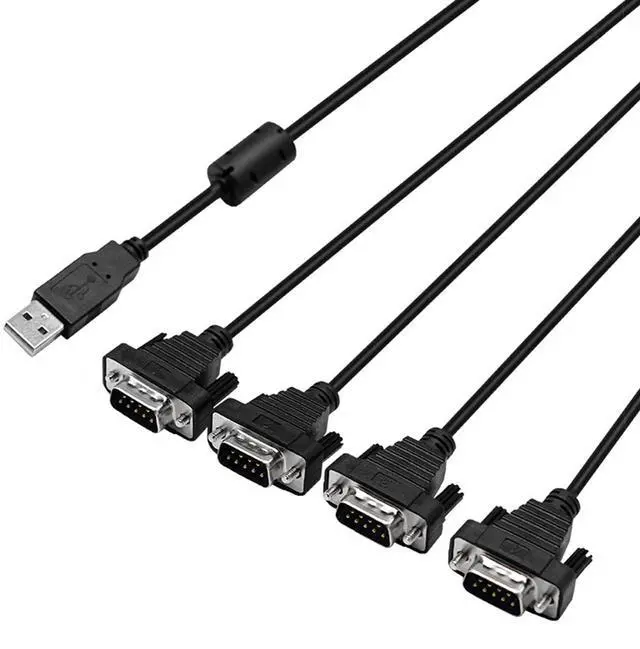

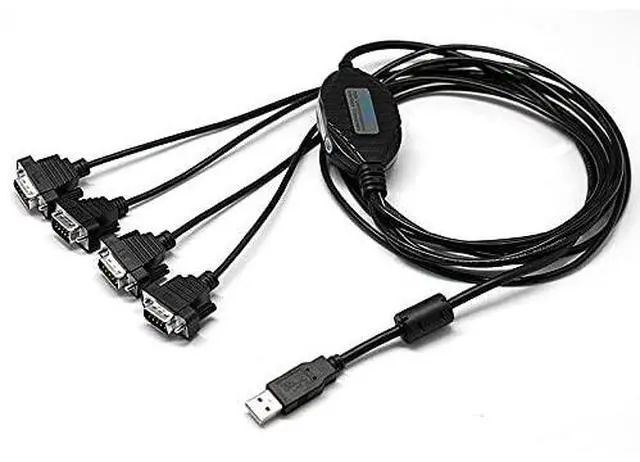

UOTEK USB to 4-Port 9-Pin RS-232 Cable Converter, 4.9FT USB V2.0 to DB9 RS232 Serial Adapter Gold Plated for Win 10/8.1/8/7/Vista/XP/Mac UT-8814
- Interface: Cable connection for USB type A interface male and DB9 male. Surge and +15KV ESD protection is available at interfaces.
- Cable dimension: The total length is 150 cm, about 4.9 feet. There are 4 ports RS232 to connect multiple devices. Converters support Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8.1/10/CE/Mac/Linux, etc.
- UT-8814 interface converter can be used for point-to-point communication, data communication rates of 300-921600bps, with power indicator and data flow indicator to indicate failure condition.
- This converter has zero-delay automatic transceiver and receiver conversion inside. Unique I/O circuit automatically controls the direction of data flow to ensure that it is suitable for all existing communication software and interface hardware.
- GuaranteeAs a professional manufacturer, the customer service team will wholeheartedly solve the difficulties for you. Please feel free to contact us for any problems.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
As the development of PC, USB port starts to replace most of thelow speed external ports from old PC. In industrial field, most of thedevices or equipments are still using RS-232 interface. In thissituation, we need to use USB to RS-232 converter to complete the datatransmission between PC and RS-232 equipment.
UT-8814 is a universal USB/4 ports RS-232 converter withoutexternal power. It complies with USB, RS-232 standards; it convertssingle side USB signal to RS-232. This converter is with built-in zerodelay auto receiving and transmitting conversion and unique I/O circuitauto control data flow direction, plug & play. It is compatible withcurrent communication software and hardware.
UT-8814 converter provides connection for point to pointcommunication. The baud rate can be 300-921,600bps. The power and dataflow indicators indicate the working status.
Standards: USBV1.1, 2.0, RS-232 EIA
USB signals: VCC, DATA-, DATA+, GND, FG
RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI
Working mode: Asynchronous, point to point
Direction control: Adopts data direction auto control technology, auto control the data transmission direction
Baudrate: 300-921,600bps, auto detection
Load capacity: supports point to point
Transmission distance: RS-232 5m, USB no more than 5m
Port protection: surge, ±15KV ESD protection

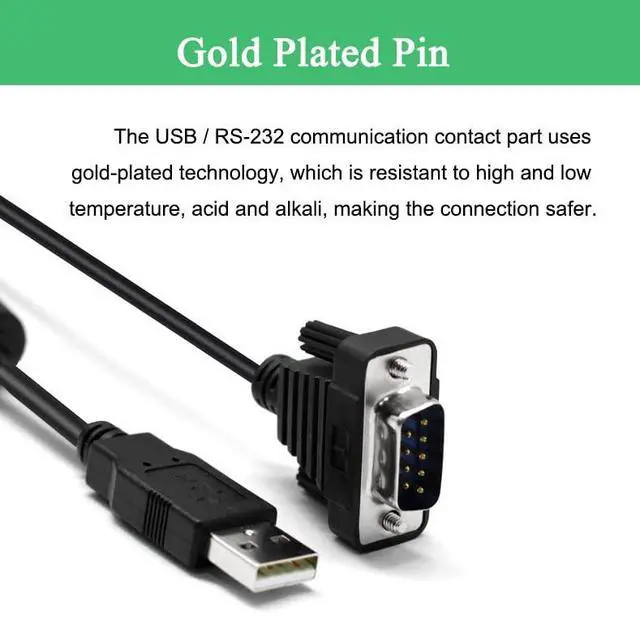

Connector: USB-A male, DB9 male

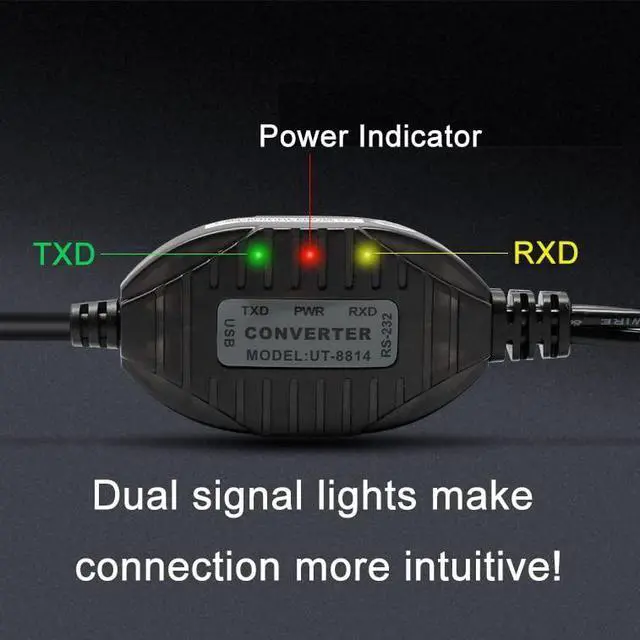

Indicator: TXD, RXD, POWER

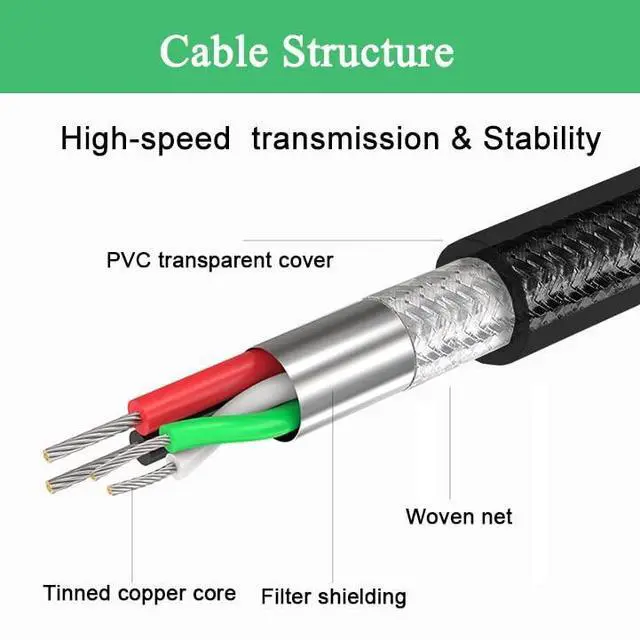

Transmission media: Twisted pair or shielded cable
Cable length: 1.5m
Operating temperature: -40~85, relative humidity 5%~95%

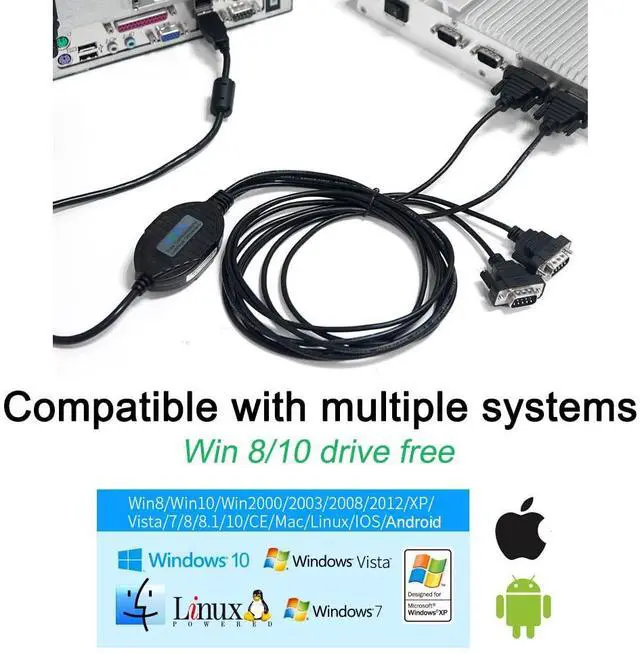

Supports Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
UOTEK Industrial Grade USB to 4-Port RS232 Serial Cable Com Port Adapter / Adapter Cable UT-8814, Compatible with A Wide Range of Computer Systems UT-8814 Details UT-8814 Parameters
UT-8814 is a universal USB/4 ports RS-232 converter withoutexternal power. It complies with USB, RS-232 standards; it convertssingle side USB signal to RS-232. This converter is with built-in zerodelay auto receiving and transmitting conversion and unique I/O circuitauto control data flow direction, plug & play. It is compatible withcurrent communication software and hardware.
UT-8814 converter provides connection for point to pointcommunication. The baud rate can be 300-921,600bps. The power and dataflow indicators indicate the working status.
Standards: USBV1.1, 2.0, RS-232 EIA
USB signals: VCC, DATA-, DATA+, GND, FG
RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI
Working mode: Asynchronous, point to point
Direction control: Adopts data direction auto control technology, auto control the data transmission direction
Baudrate: 300-921,600bps, auto detection
Load capacity: supports point to point
Transmission distance: RS-232 5m, USB no more than 5m
Port protection: surge, ±15KV ESD protection
Connector: USB-A male, DB9 male
Indicator: TXD, RXD, POWER
Transmission media: Twisted pair or shielded cable
Cable length: 1.5m
Operating temperature: -40~85, relative humidity 5%~95%
Supports Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
UOTEK Industrial Grade USB to 4-Port RS232 Serial Cable Com Port Adapter / Adapter Cable UT-8814, Compatible with A Wide Range of Computer Systems UT-8814 Details UT-8814 Parameters
