DDMALL Mini H.265 H.264 HDMI Encoder for Live Stream, 1080P 1080i HDMI Video Encoder SRT RTMP RTMPS RTSP HLS, Hardware 2K Encoder Support Cloud Control for YouTube, IPTV (AVC-2K)

The new AVC-2K is one of DDMALL mini and low power HDMI video encoders for live productions. The HDMI input is up to 1080P@60Hz, and encoding output is up to 1080P@30Hz, 12Mbps. With built-in H.265/HEVC and H.264/AVC SRT, HLS, RTMP/RTMPS, RTSP, RTP, TCP, UDP, Multicast, and Unicast, users can easily encode their high-definition video and transmit and play in crystal-clear 2K resolution stably. As a hardware SRT encoder, it is compatible with any other third-party SRT decoders or decoding softwares. Enable SRT and live your video securely in a low-latency and high-quality manner. The mini video encoder can be controlled by web UI and Cloud protocol. If users want to deploy encoder massively in their live production, we can help them build theirn own private Cloud system so that users can effortlessly control and manage their encoders through the Cloud, and conveniently distribute and broadcast their live streams, which will greatly streamline the worlflow and make users focus on their crucial works. At the same time, we will continuously develop more functions to make users always get new features.

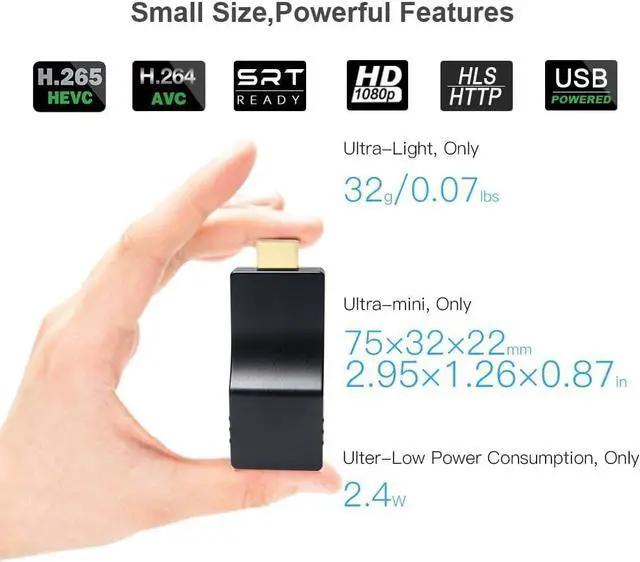

Ultra mini size and ultra lightweight. The live streaming encoder is perfect for the live streaming applications with frequent move or tiny device installation space.
This DDMALL AVC-2K encoder is simple to use. It is controlled via web-based user interface, which is accessible on any web-enabled devices, such as PC, tablet and smart phone. This allows you to mange your encoder without having to install external driver or software.
The DDMALL AVC-2K encoder supports DDMALL LinkCloudmanagement, allowing you to remotely control and monitor the encoder via the Internet. We can also hlep you to buildyour private Cloud for device management and video live distribution management.
Supported Video Codec: H.265 H.264/MPEG-4 AVC
Adjustable Video Bitrate: 128Kpbs~12Mpbs (CBR/VBR/AVBR/FixQP Controlling Mode)Manual bitrate supported

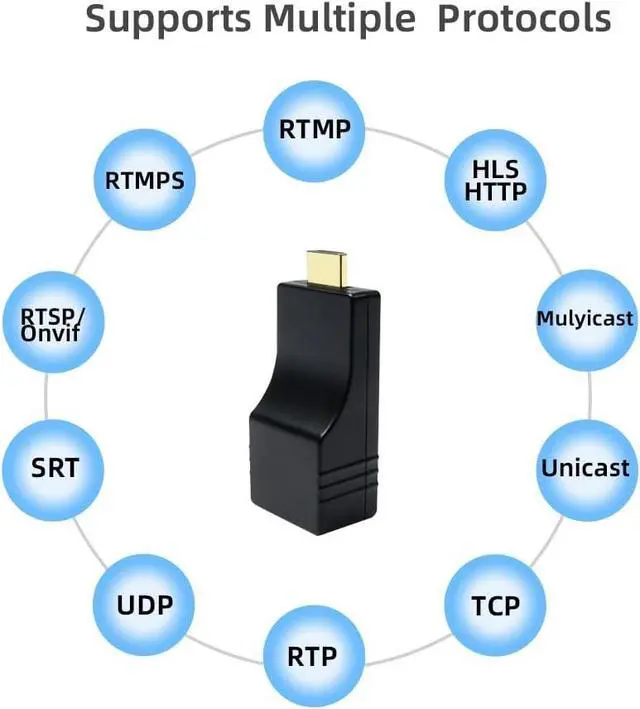

Supported Streaming Protocol: SRT, HLS, RTMP/RTMPS, RTSP, RTP, TCP, UDP, Multicast, and Unicast
Video Input Resolutions: 1080p@60Hz/50Hz/30Hz, 1080i@60Hz/50Hz, 720p@60Hz/50Hz/30Hz
Video Output Resolutions: 1080p@30Hz, 720p@60Hz/30Hz, 960×720@60Hz, 960×540@60Hz, 640×480@60Hz, 360×200@60Hz
Supported Audio: HDMI Embedded Audio and external 3.5mm Analog Audio (Line Audio and Microphone Audio Supported)
Audio Codec: AAC, G.711u
TTL value is adjustable
Compression profile: BaseLine, Main, High
Key Frame Interval (GOP) is tunable
Stable andenergy-efficient, supports 7 x 24h working time
Compatible with VLC, Blue Iris, Orchid VMS and more
Ideal for many applications, such as church live streaming, online broadcasting, UAV/Drone applications, IPTV/NVR systems and more.
Supports internet video platforms including YouTube, Facebook, Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, Tikilive, Netrmedi, etc

Portable HDMI Encoder Professional Live Streaming Solutions Powerful Cloud Management Specifications
