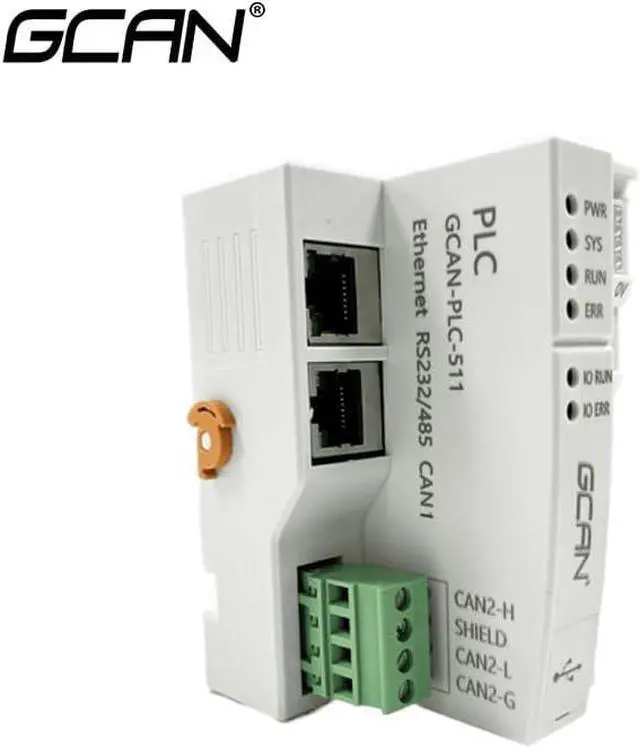

Sinoped PLC Industrial Control Board DC24V 16 Input 16 Output Support HMI (GCAN-PLC-511 OpenPCS)

Plug Type : EU Plug ; Color : WHITE ; Package : Yes ; Model Number : GCAN-PLC-400/510/511 ;Type : Industrial Computer Accessories
Isolation level : Optocoupler isolation 500V CAN open baud rate(bps) : 1000K,500K,250K,125K,100K,50K,10K PDO mode : synchronization, looping,event-driven, polling
Bus terminal module quantity : up to 32 modules Digital I/O signal : 256 input/output Analog I/O signal : 64 input/output
Configuration mode : automatic configuration PDO number (CAN open) : 4Tx/4Rx CAN-Bus interface : one OPEN terminal interface,4Pin
Power : 24V DC (-15%+20%) GC-bus current supply : 500mA Electrical isolation : 1500Vrms IP grade : IP20

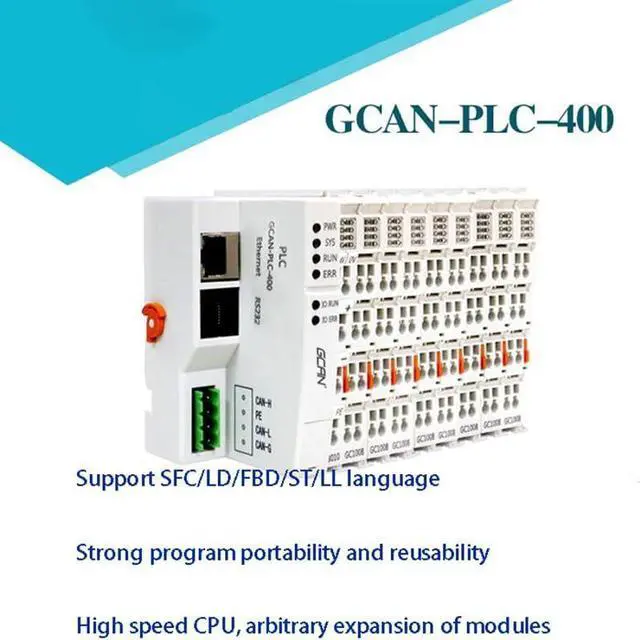

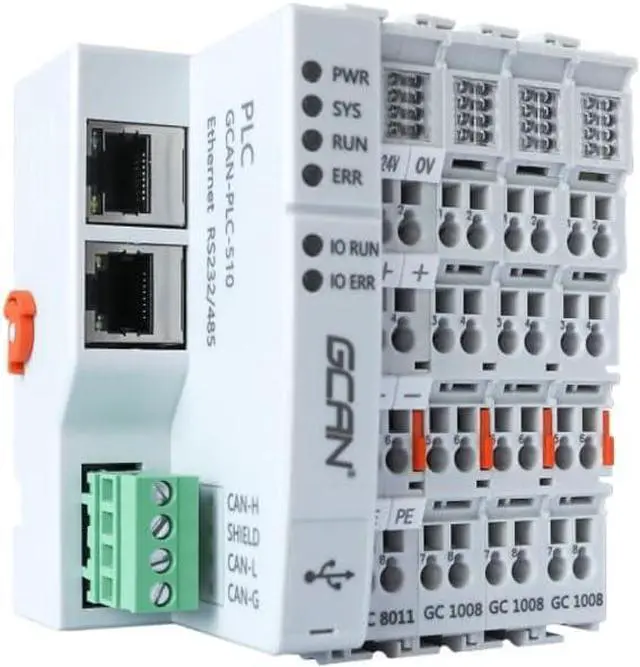

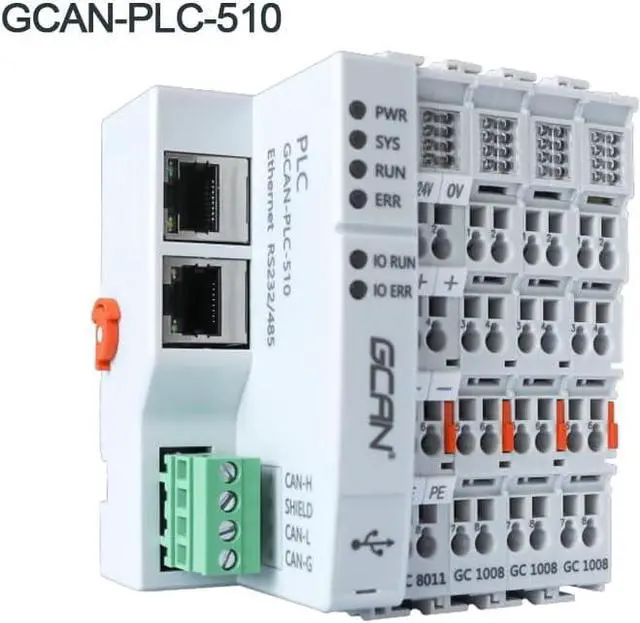

Product introduction GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/...). The control module uses high-speed CPU and has powerful computing and processing capacity. The control module also has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices

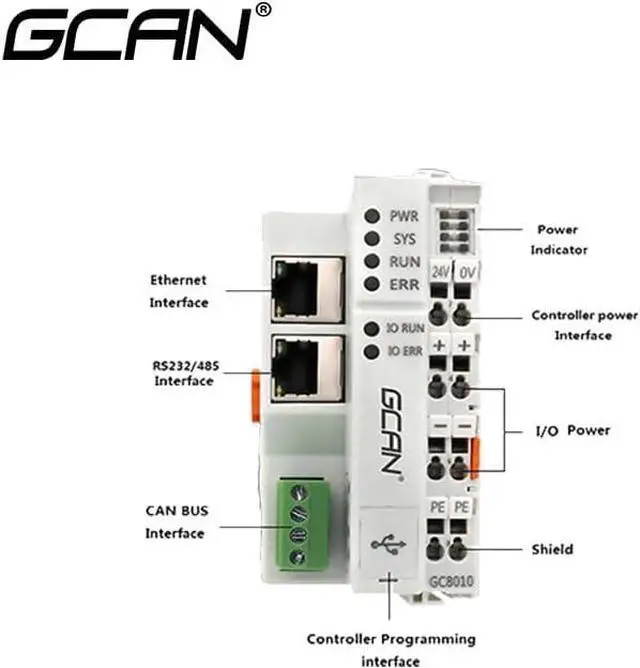

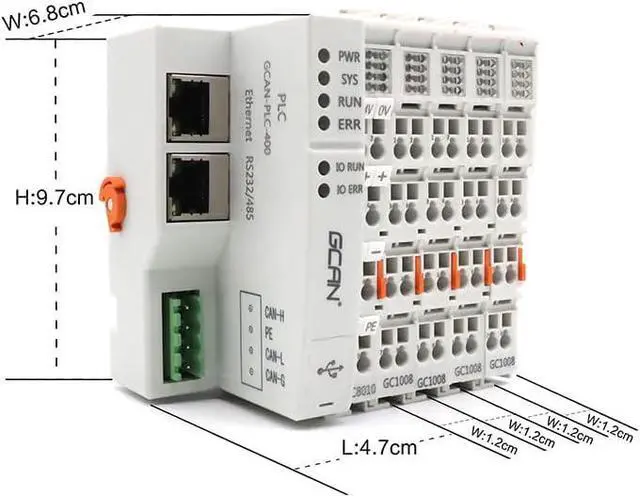

CAN bus interface, with ISO11898 standard Ethernet interface, 10/100M adaptive Serial interface, RS232 or RS485 Programming: OpenPCS (support SFC, LD, FBD, ST, IL of IIEC 61131-3 standard) Power supply: 24V DC (18~36V) Maximum number of I/O modules to fit: 32 (up to 32*8 I/O points) Working temperature and humidity: -40°C~+85 °C, 0-95% RH without condensation Dimensions: 97 mm*68 mm*47 mm
[Fast system response] GCAN-PLC series uses the German enbedded real-time kernel system,which not only has strong real-time performance and processing ability,but also supports users to program with the 5 programming languages specified in IEC 61131-3 standard,including SFC,LD,FBD,ST and IL.Flexible use of familiar programming languages can shorten the project development cycle.
