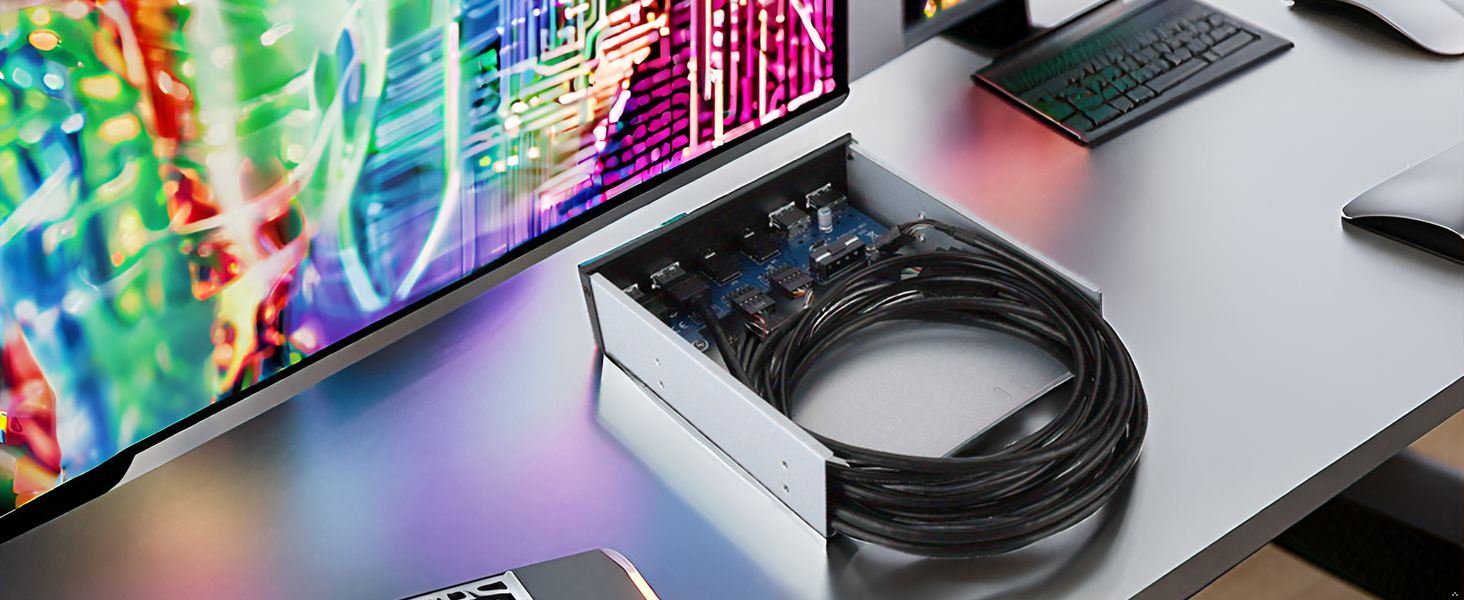

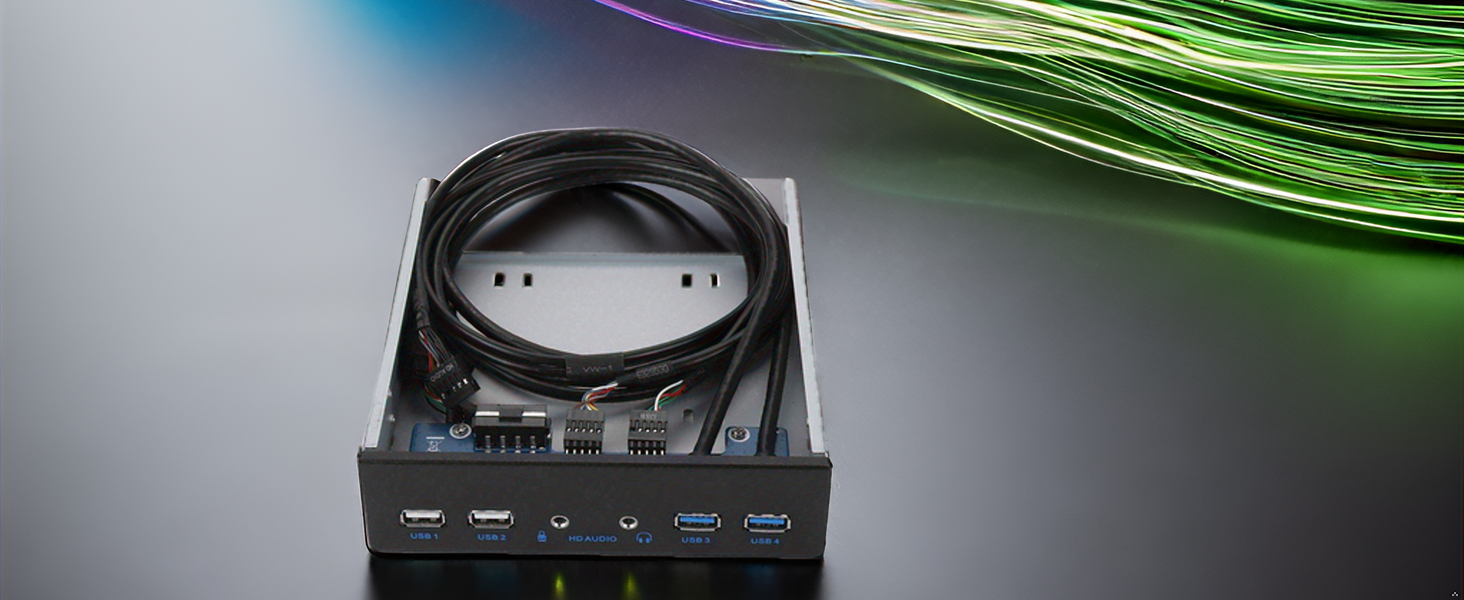

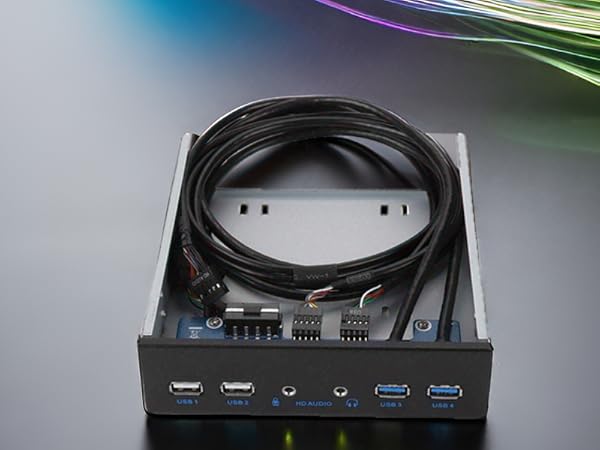

USB 3.0 + USB 2.0 19Pin HD Audio Extension Front Panel
You can use this device directly put 19PIN interfaces, 9PIN interface and audio on the board turn into a 2 USB 2.0 + 2 USB 3.0 interface output headphone and microphone jacks, optical drive installed in the idle position. This provides front facing USB interface and audio interface.
Note

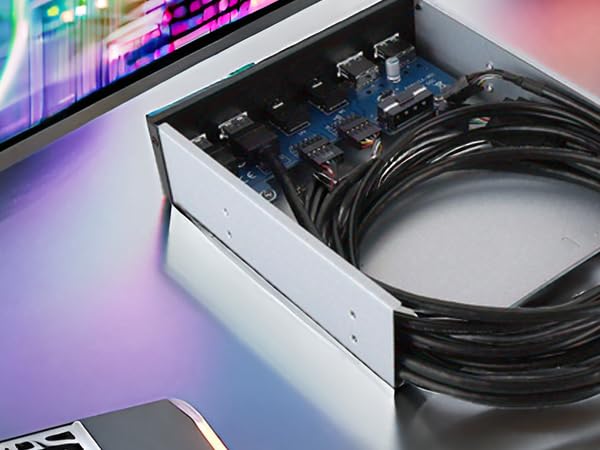

This panel is mounted to the chassis drive position, that is 5.25 inch drive size. If this panel into the USB 2.0 interface, can not speeded when use USB 3.0 device.
Package List
- 1 * Pack of Screws
- 1 * Front Panel
- 3 * Cables
USB 3.0 + USB 2.0 19Pin HD Audio Extension Front Panel
You can use this device directly put 19PIN interfaces, 9PIN interface and audio on the board turn into a 2 USB 2.0 + 2 USB 3.0 interface output headphone and microphone jacks, optical drive installed in the idle position. This provides front facing USB interface and audio interface.
| 1 | Plug & play, no external power needed. |
|---|---|
| 2 | Backwards-compatible with USB 1.1 and USB 2.0. |
| 3 | 4.8Gbps(SuperSpeed) which is 10 times faster than USB 2.0(480Mbit/s). |
| 4 | Audio Interface is straight regular HD-AUDIO interfaces, required to support HD-AUDIO motherboard audio interface to use. |
Note
This panel is mounted to the chassis drive position, that is 5.25 inch drive size. If this panel into the USB 2.0 interface, can not speeded when use USB 3.0 device.
| Material | Aluminium Alloy |
|---|---|
| Dimension | 14.8 * 15.3 * 4.cm/5.8 * 6 * 1.5 inch |
| Interface | MIC/SPK port and port standard A type connector |
| Maximum Speed | 4.8Gbps (Super Speed) |
| Support System | for Win XP/2003/for VISTA/2008/for Windows 7/for WIN 8 32/64BIT / for IOS |
| Package Weight | 438g/15.4oz |
| Hardware Requirements | - |

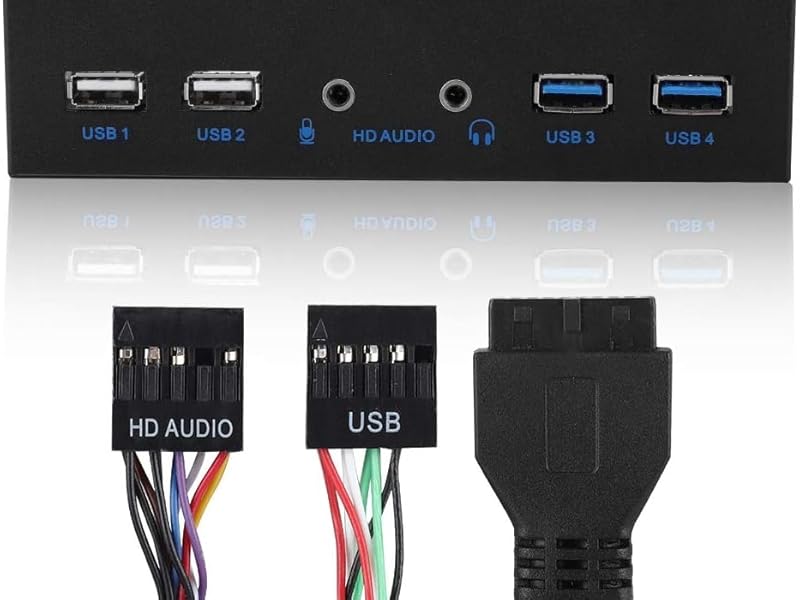

| 1 | With 9PIN, 19PIN USB 3.0 Interface |
| 2 | A riser or support HD AUDIO audio board |
| 3 | With IDLE optical drive chassis |
| Package List | 1 * Pack of Screws, 1 * Front Panel, 3 * Cables |
Package List
- 1 * Pack of Screws
- 1 * Front Panel
- 3 * Cables
