JVC CS-DR6941 550W Peak (90W RMS) 6x9 4-Way Factory Upgrade Coaxial Speakers - Pair

JVC DRVN Series CS-DR6941 (New version of CS-DR6940) 6x9" Coaxial Factory Upgrade Speakers.


Combines high output sound and toughness to withstand the powerful drive. Easily upgradeable from factory-installed OEM speakers.

Balanced Neodymium Tweeter - It provides detailed high range and smooth mid range.

Great Factory Replacement - Installable vehicle types are greatly increased thanks to its shorter height.

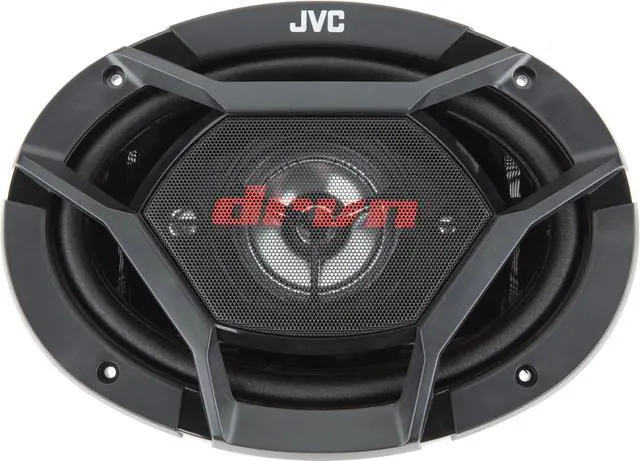

Wide Opening Grill - Grills opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.

Carbon Mica Cone - Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.

Hybrid Surround - Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.

Small Design Tweeter Cover - Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.



Woofer

Size - 15 x 23 cm (6'' x 9'')

Diaphragm - Carbon Mica Cone

Surround - Hybrid Surround (Rubber & Cloth)

Magnet - Ferrite



Midrange

Size - 6.6 cm (2-5/8'')

Type - Cone

Diaphragm - Poly-Ether Imide

Magnet - Ferrite



Tweeter

Size - 2.5 cm (1'')

Type - Dome

Diaphragm - Poly-Ether Imide

Super Tweeter 1
Size - 1.5 cm (19/32'')

Type - Dome

Diaphragm - Poly-Ether Imide



General

Frequency Response - 56 - 21,000Hz

Power Handling Capacity (RMS) - 90W

Power Handling Capacity (Peak Power) - 550W

Impedance - 4 ohms

Sound Pressure Level - 86dB



Weight

Weight (w.Grille) - 1.42kg (3.2lbs)

Weight (w/o Grille) - 1.33kg (3.0lbs)

Magnet Mass - 445g (15.7oz)

Mounting Depth - 79 mm (3-1/8")
