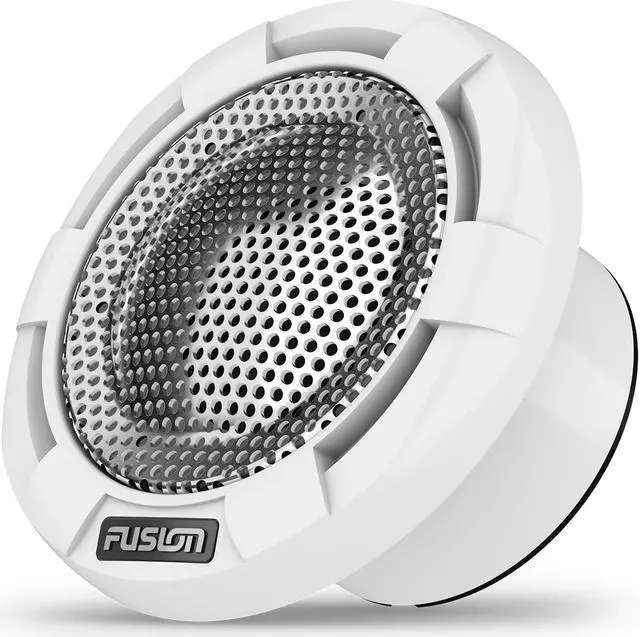

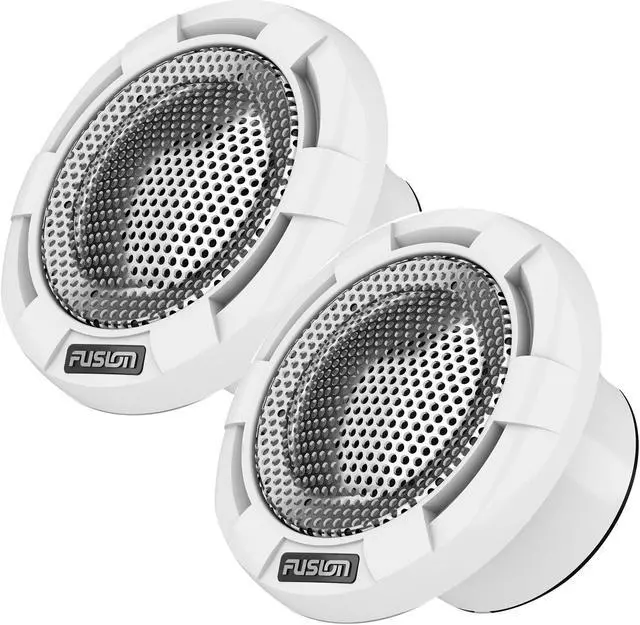

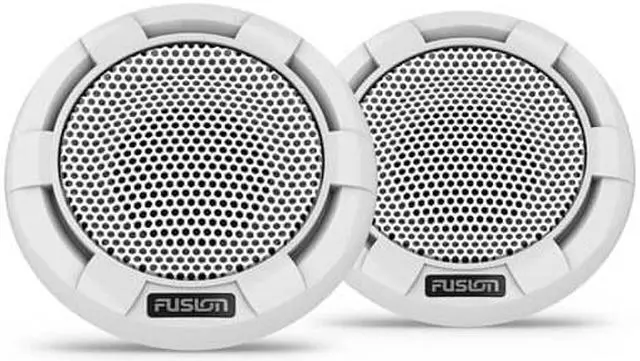

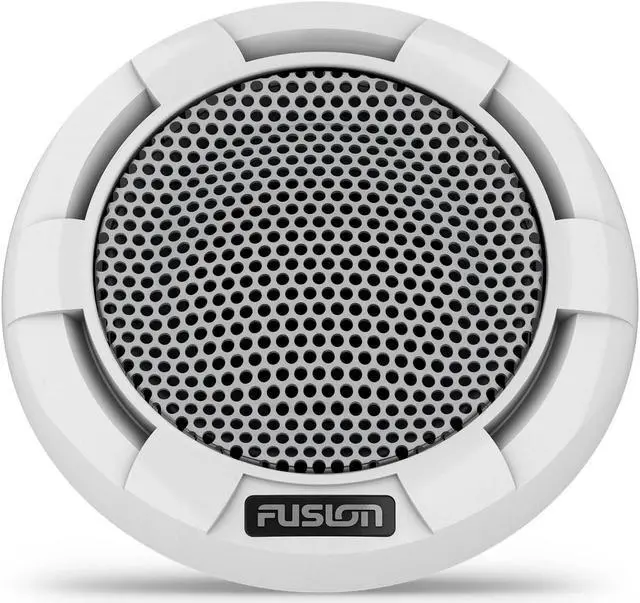

Fusion SG-TW101SPW Signature Series Component Tweeters - Pair

Enhance your listening experience while youre on the move with these marinized component tweeters. Designed to be dash-mounted in raised positions to restore high frequencies, you can clearly hear vocals over engine, wind and wave noise. Key features include a compact form factor, low-profile mounting design, IP65 weather rating and True-Marine design with a 3-year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.



TECHNICAL SPECIFICATIONS

Features

General

Physical dimensions (diameter x depth): 2.91" x 1.64" (74 x 41.6 mm)

Weight: 4.2 oz (0.12 kg)

Water and dust rating: IP65

Tweeter size: 1"

Peak power (watt): 330 W

RMS power (watt): 60 W

Sensitivity (1 W / 1 m): 91 dB

Frequency response: 3 kHz - 20 kHz

Nominal impedance: 4 ohms

Recommended amplifier power (RMS): 25 - 140 W/Ch

Operating temperature range: 32° to 122° F (0° to 50° C)

Voice coil diameter: 1"

Material: Aluminum dome

Tweeter connection: Flying lead with water-resistant 2-way connector, 5.9" (150 mm)

Compass-safe distance: 43.3" (110 cm)

Warranty: 3 years



Mounting Dimensions

Mounting diameter clearance: 2.01" (51 mm)

Mounting depth clearance: 1.22" (31 mm)
