Specifications:

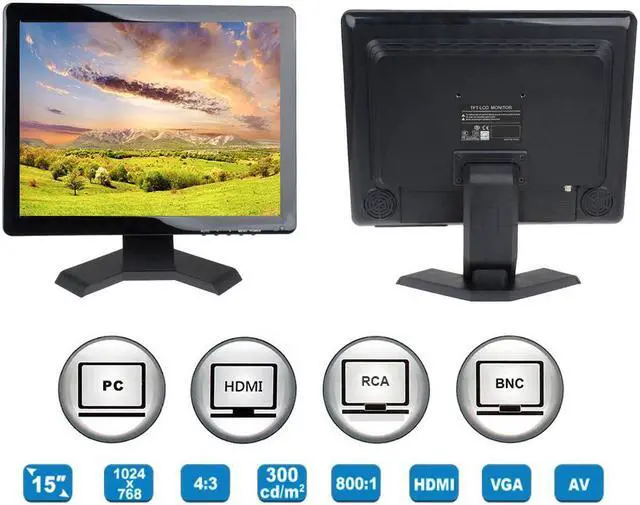

15 inch (1024 x 768) high resolution TFT LCD monitor
Support BNC input, used for professional security monitoring equipment connection, make signal mutual interference decreases, can achieve the best effect of signal

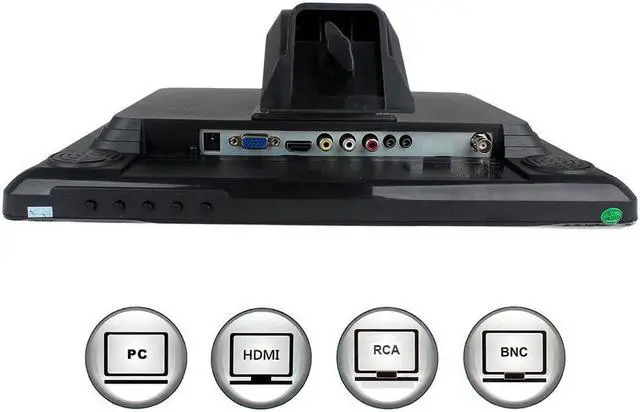

Multi video input supported (AV, VGA, BNC, HDMI)
Multi language menu
Suitable for CCTV monitor, PC monitor or indoor use
Support image fluctuation reversal control, apply different installation applicable way
Technical Information:
Screen Size : 15"
Aspect Ratio : 4 : 3 / 16 : 9
Screen Resolution : 1024 (H) x 768 (V) pixels
Pixel Pitch : 0.297
Screen Brightness : 350 cd/m^2
Screen Contrast : 400 : 1
View Angle : - H: 160° - V: 160°
Response Time : 8 ~ 12ms
Brightness Control : Yes
Video Input : AV, VGA, BNC, HDMI
Function : Analog TV
Video System : PAL , NTSC
Menu Language : English / French / German / Chinese Simplified / Italian / Spanish / Portuguese / Thai / Korean
Operating Temperature : 0 ~ 45° C
Power Supply :
- Input: AC 100~240V, 50~60Hz (worldwide voltage)
- Output: DC 12V, 3A
Material : ABS

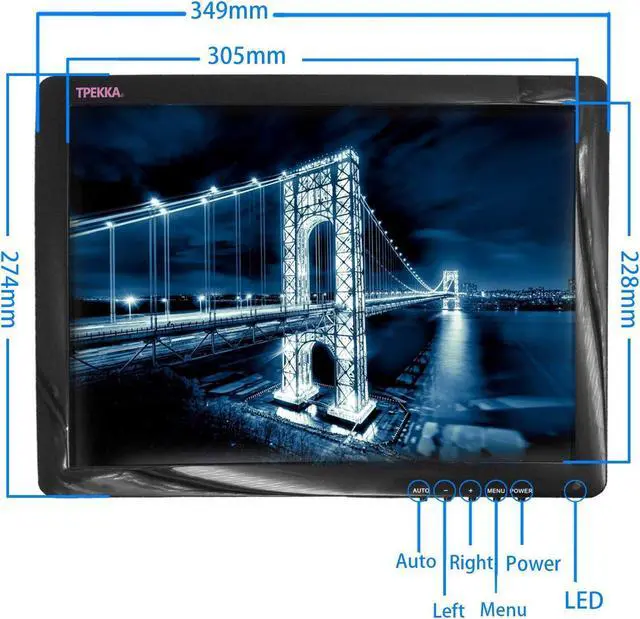

Dimensions :
- approx. 349 (W) x 247 (H) x 48 (D) mm
- approx. 13-3/4" (W) x 9-3/4" (H) x 1-7/8" (D) inch
Package includes:
1 x 15 Inch TFT Color LCD (AV / VGA / BNC / HDMI) Monitor
1 x BNC Cable
1 x HDMI Cable
1 x Bracket
1 x User Manual
1 x Power Supply Adaptor (100-240V input,worldwide voltage)
1 YEAR WARRANTY& 24 HOUR SERVICE:
This product is sold separately by "TPEKKA", please confirm the above store name when ordering.
When purchasing products from other companies, products different from the images may arrive.
There is no quality assurance at the head office for products of other companies.
Since our shop has 12 months quality guarantee from the order date, if there is any problem with the merchandise, please do not hesitate to contact us.
