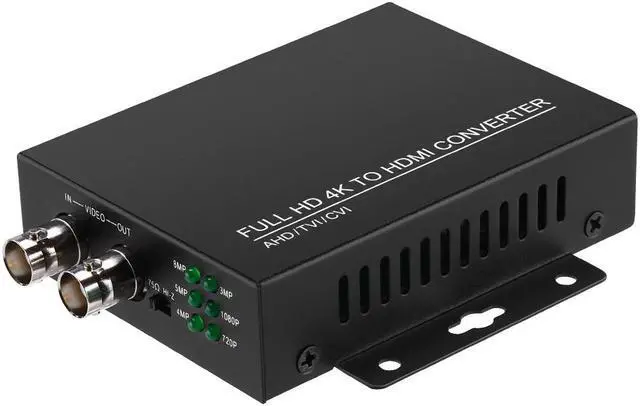

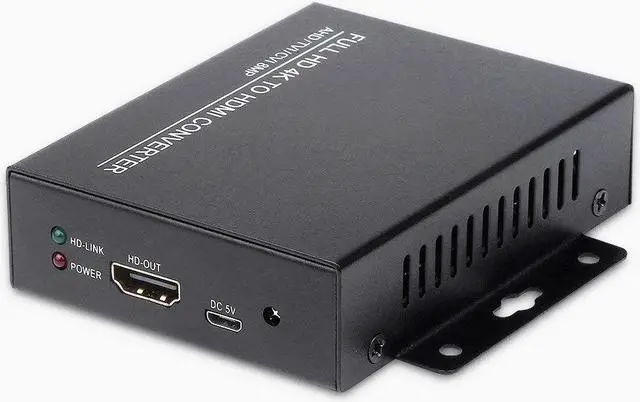

TVI/CVI/AHD to HDMI Converter Adapter Full HD 4K 720P/1080P/3MP/4MP/5MP/8MP BNC to HDMI Video Converter for Monitor HDTV DVRs Convert TVI CVI AHD CVBS BNC Video Signal to HDMI

Features:

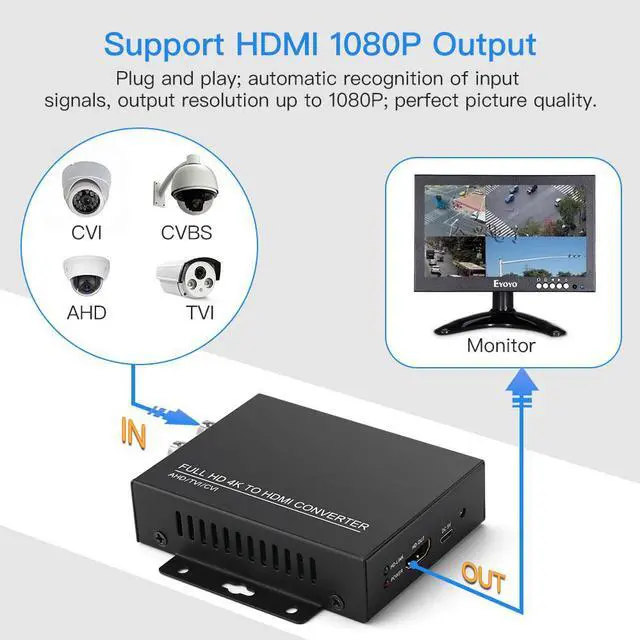

1. CVI/TVI/AHD+CVBS to HDMI. HDMI output 1080P/60FPS. Connected to HDMI output, HD-LINK indicator is always on, yellow light. Plug and play; automatic recognition of input signals.

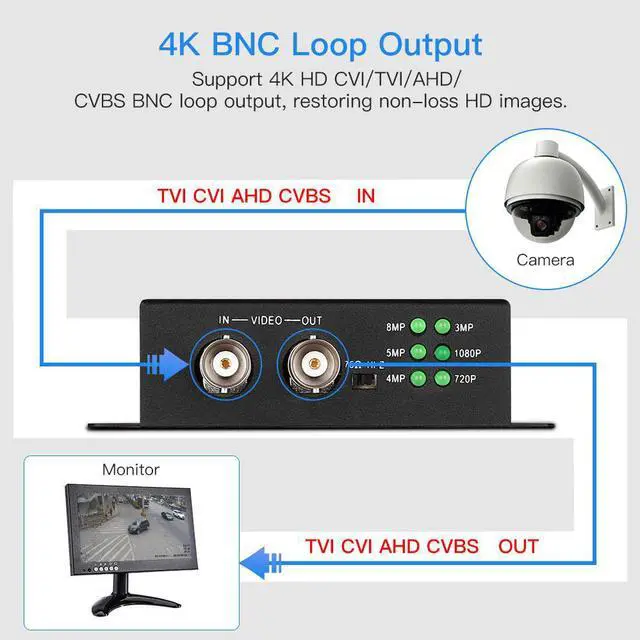

2. Support 4K HD CVI/TVI/AHD/CVBS BNC Loop Output. Restoring non-loss HD images.
3. Support BNC and HDMI can be output simultaneously.

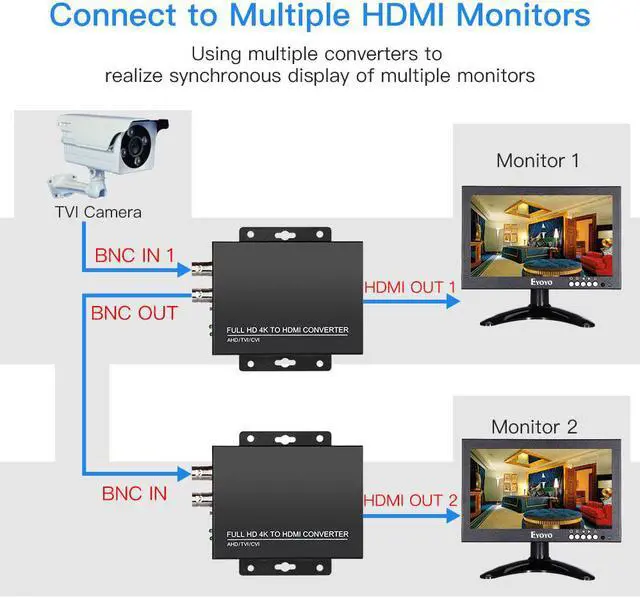

4. Using multiple converters support realize synchronous display of multiple monitors.
5. Auto recognition resolution. 720P/1080P/3MP/4MP/5MP/8MP. Indicator light visual display.
6. Support up to 4K (8MP) TVI/CVI/AHD cameras.
Specification:
Input Port: One channel CVI/TVI/AHD/CVBS BNC input
Output Port:
1x One Channel CVI/TVI/AHD/CVBS BNC output
1x One channel HDMI output
Material: Metal housing
Transmission Distance: 500~700 meters
(Different resolution, different transmission distance)
External power supply: DC 5V (1A)
Working Temperature: -10? ---+50?
Working Humidity: 30%-90%
Dimension: 109mm x 94mm x 25mm
Weight: 0.18 kg
Pls Note:
1. Power connection
The device uses 5V/1A power supply. POWER indicator is always on after power supply is connected.

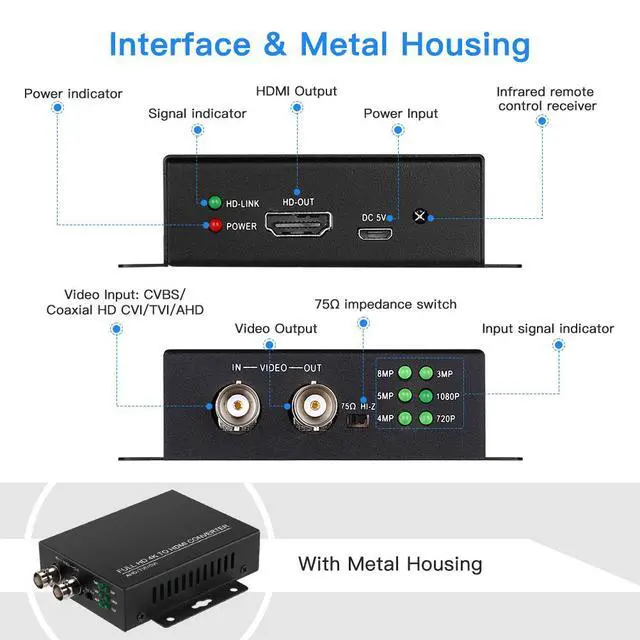

2. 75 Omega; / HI-Z Impedance switch
When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to 75 Omega;. When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR, please set to HI-Z.
Package Including:
1x Converter
1x Power Adapter
1x BNC Cable
1x USB Power Cable
