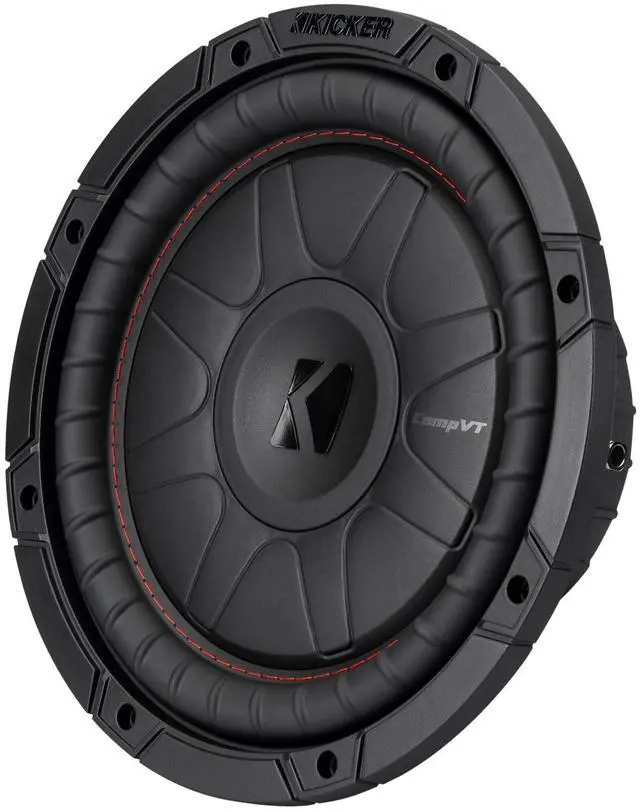

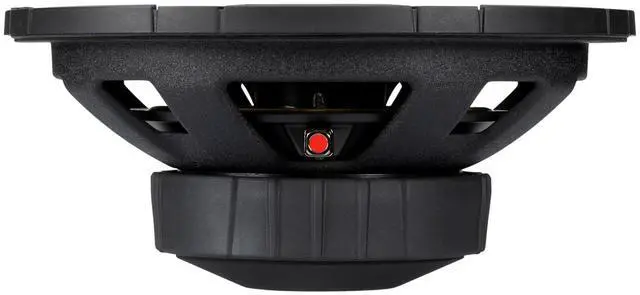

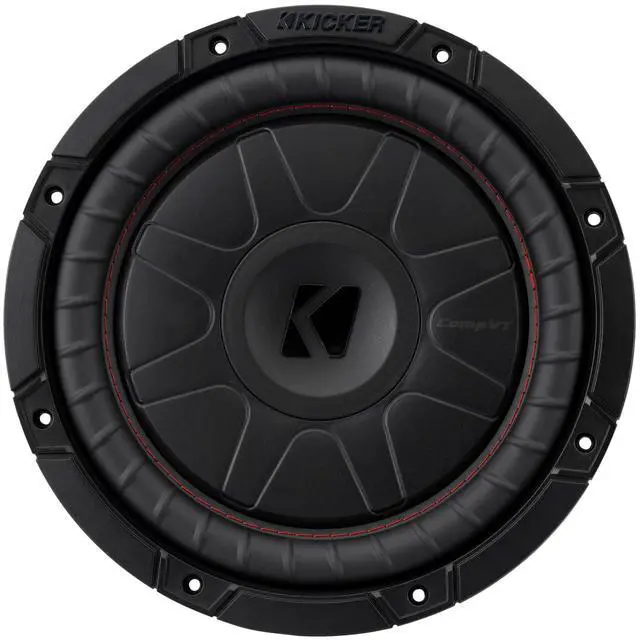

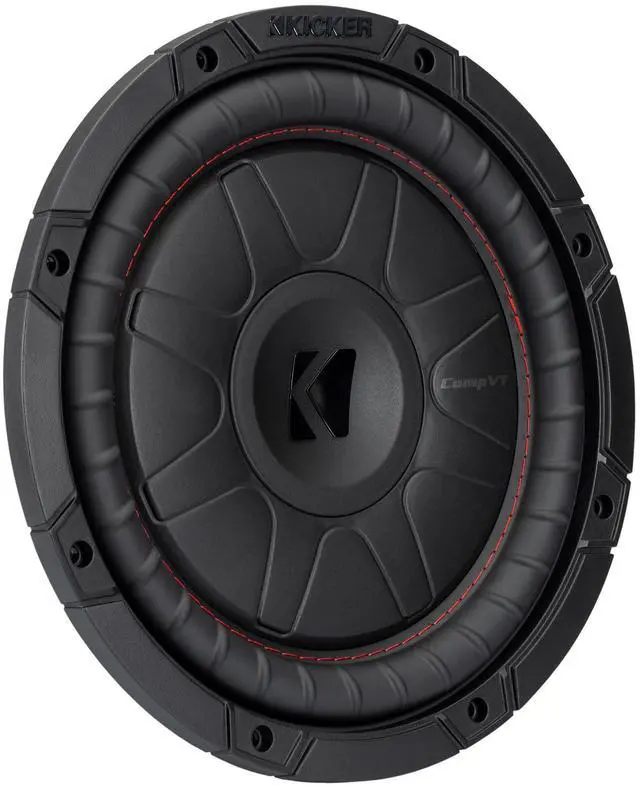

Kicker 52CVT102 CVT10 CompVT 10-Inch (24cm) Subwoofer, 2 Ohm SVC

The CompVT 10-Inch Subwoofer is available as a 2 slimline driver.



New and improved, precise KICKER engineering allows the CompVT to pound with limited space. A proprietary four-layer voice coil collaborating with SoloKon cone technology, provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.



The CompVT Subwoofer works best with a sealed or ported enclosure for its substantial power handling.



Specifications

SIZE [in, cm]: 10, 25

IMPEDANCE [Ohms]: 2 SVC

Recommended Amplifier Power (watts RMS) 180-375

Peak Power (watts, per ANSI/CTA-2031-A) 750

SENSITIVITY [dB 1w/1m]: 87.2

MOUNTING DEPTH [in, cm]: 4-1/4, 10.8

MOUNTING DIAMETER [in, cm]: 9-3/16, 23.3

MIN SEALED BOX VOL [cu. ft, L]: 0.8, 22.5

MAX SEALED BOX VOL [cu. ft, L]: 3, 85

MIN VENTED BOX VOL [cu. ft, L]: 1.25, 35.4

MAX VENTED BOX VOL [cu. ft, L]: 1.75, 49.6



Thiele/Small Parameters

Re: 2.675 Ohm

Krm: 0.00185 Ohm

Erm: 0.995

Kxm: 0.02575 Ohm

Exm: 0.78

Cmes: 849.94

Lces: 20.055

Res: 37.375 Ohm

fs: 38.6 Hz

Mms: 144.4155 g

Mmd (Sd): 136.4885 g

Rms: 4.5485 kg/s

Cms: 0.118 mm/N

Kms: 8.485 N/mm

Bl: 13.0385 Tm

Qtp: 0.764 total Q-factor considering all losses

Qms: 7.6925 mechanical Q-factor of driver in free air considering Rms only

Qes: 0.7565 electrical Q-factor of driver in free air considering Re only

Qts: 0.689 total Q-factor considering Re and Rms only

Vas: 22.4299 I

n0: 0.1635 reference efficiency (2 pi-radiation using Re)

Lm: 84.33 dB characteristic sound pressure level (SPL at 1m for 1W @ Re)

Lnom: 84.7 dB nominal sensitivity (SPL at 1m for 1W @ Zn)

Sd: 366.44 cm² diaphragm area

Xmax: 13 mm
