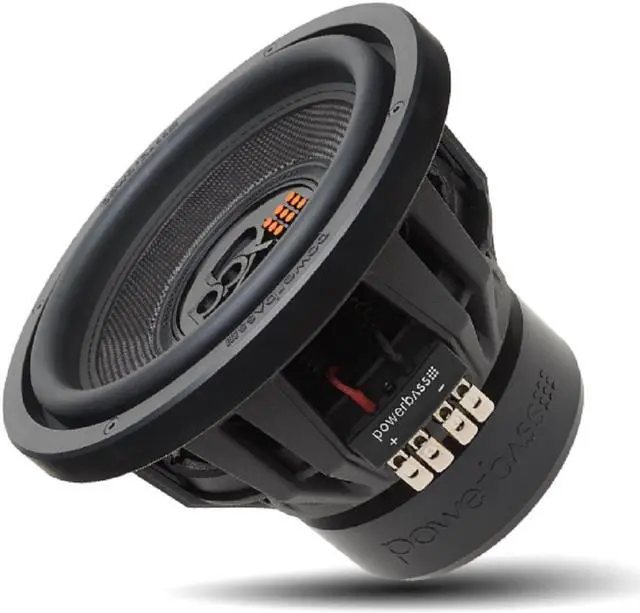

Powerbass 2XL-1040DS Dual 4-Ohm 10" Subwoofer

2XL-1040DS 10" Subwoofer

• 10" Dual  4-Ohm Subwoofer
• 600  watt RMS/ 1200  Watts Max
• Woven Glass Fiber Cone With Pressed Kraft Paper Reinforcement
• Nitrile Butadiene Rubber (NBR) Surround
• 2.5" Vented BKSV Voice Coil Former
• Perimeter Aero-Vent  Voice Coil Cooling Vents
• Non Resonance DDC Coated  Cast Aluminum Basket
• XTRA XTRA Large Double Stacked  Motor Structures
• Square Spring Loaded Nickel Plated  Input Terminals
• Optimally Designed for Both Sealed or Ported  Enclosures



2XL-1040DS 10"  PREMIUM SUBWOOFERS

Our new 2XLD
S  Subwoofers have been completely redesigned with a new custom cast aluminum basket and the  motor moved to the outside of the basket in a more standard style to allow for lower frequency response and increased power handling, providing audiophile sound quality at Xtreme sound levels.

Featuring a new NBR Nitrile Butadiene Rubber surround for increased linear accuracy and a proprietary Woven Glass Fiber Kraft Reinforced  cone the 2XL series is built to perform. The custom cast aluminum basket provides perimeter venting to assist in cooling the newly redesigned 2.5 ” Black Kapton (BKSV) voice coil and inverted motor structure.

Specifications

• Nominal Impedance:   Dual 4-ohm
• BL:   10.77
• Inputs:   Dual Voice Coil
• Subwoofer Frequency Range:   30 Hz - 500 Hz
• Voice Coil Size:   2.5 in
• Material:   Woven Glass Fiber and Kraft Paper
• Magnet Size:   48 oz
• Sensitivity (1W / 1M):   82 dB
• Motor Structure:   48 oz
• Cutout Diameter:   9.0"
• Mounting Depth:   7.75 in
• Xmax:   10
• Spl:   82
• No:   0.095 %
• Qts:   0.752
• Qes:   0.871
• Qms:   5.509
• Mms:   231.3 g
• Cms:   74 uM/N
• Vas:   15.03 Ltr
• SD:   380.1
• Fs:   38.6 Hz
• Test Impedance:   1.80 -ohm
• VC Impedance:   4-ohm + 4-ohm
• Size:   10 in
• Sensitivity:   82 dB
• Frequency Response:   30 Hz -500 Hz
• Voice Coil Size:   2.5 in
• Power Handling (RMS/Peak):   600 / 1200 watts
