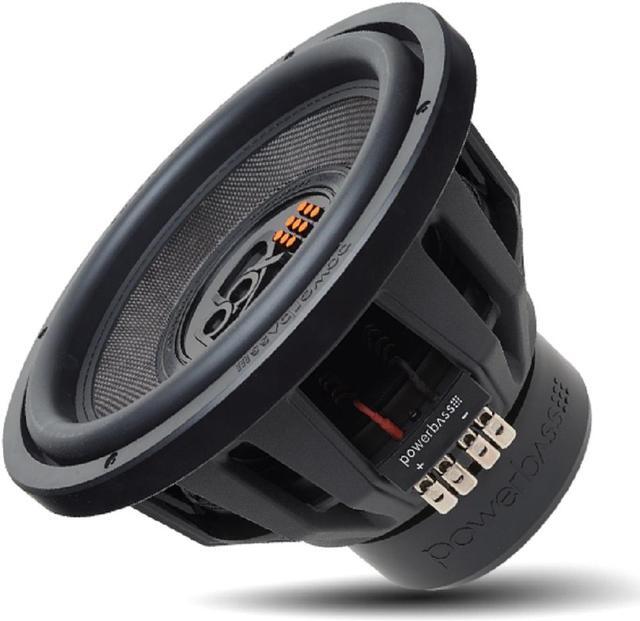

Powerbass 2XL-1240DS Dual 4-Ohm 12" Subwoofer

2XL-1240DS 12" Subwoofer

• 12" Dual  4-Ohm Subwoofer
• 650  watt RMS  /  1300  Watts Max
• Woven Glass Fiber Cone With Pressed Kraft Paper Reinforcement
• Nitrile Butadiene Rubber (NBR) Surround
• 2.5" Vented BKSV Voice Coil Former
• Perimeter Aero-Vent  Voice Coil Cooling Vents
• Non Resonance DDC Coated  Cast Aluminum Basket
• XTRA XTRA Large Double Stacked  Motor Structures
• Square Spring Loaded Nickel Plated  Input Terminals
• Optimally Designed for Both Sealed or Ported  Enclosures

  2XL-1240DS 12"  PREMIUM SUBWOOFERS

Our new 2XLD
S  Subwoofers have been completely redesigned with a new custom cast aluminum basket and the  motor moved to the outside of the basket in a more standard style to allow for lower frequency response and increased power handling, providing audiophile sound quality at Xtreme sound levels.

Featuring a new NBR Nitrile Butadiene Rubber surround for increased linear accuracy and a proprietary Woven Glass Fiber Kraft Reinforced  cone the 2XL series is built to perform. The custom cast aluminum basket provides perimeter venting to assist in cooling the newly redesigned 2.5 ” Black Kapton (BKSV) voice coil and inverted motor structure.

  Specifications

• Nominal Impedance:   Dual 4-ohm
• BL:   14.19
• Inputs:   Dual Voice Coil
• Subwoofer Frequency Range:   28 Hz - 450 Hz
• Voice Coil Size:   2.5 in
• Material:   Woven Glass Fiber and Kraft Paper
• Magnet Size:   85 oz
• Sensitivity (1W / 1M):   84.73 dB
• Motor Structure:   85 oz
• Cutout Diameter:   11.0" (280mm)
• Mounting Depth:   8.6 in
• Xmax:   15 mm
• Spl:   84.73 dB
• No:   0.179 %
• Qts:   0.549
• Qes:   0.615
• Qms:   5.13
• Mms:   296.7 g
• Cms:   64 uM/N
• Vas:   23.73 Ltr
• SD:   510.71 sqCM
• Fs:   36.4 Hz
• Test Impedance:   1.82 -ohm
• VC Impedance:   4-ohm + 4-ohm
• Size:   12 in
• Sensitivity:   84.73 dB
• Frequency Response:   28 Hz - 450 Hz
• Voice Coil Size:   2.5 in
• Power Handling (RMS/Peak):   650 / 1300 watts
