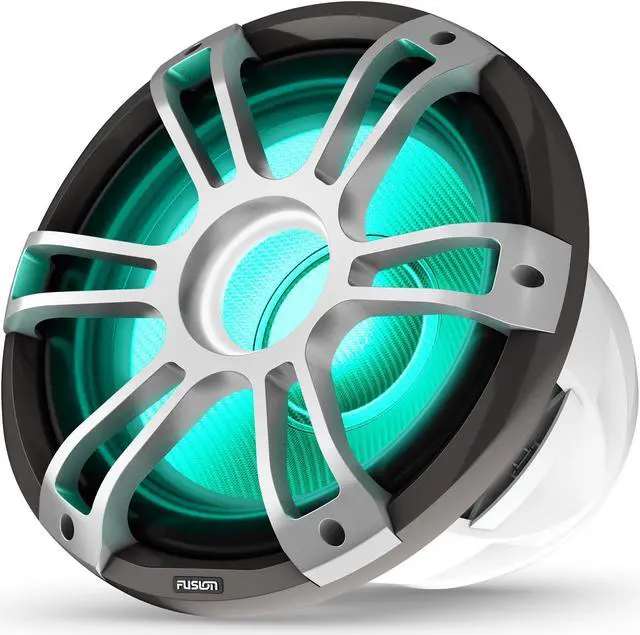

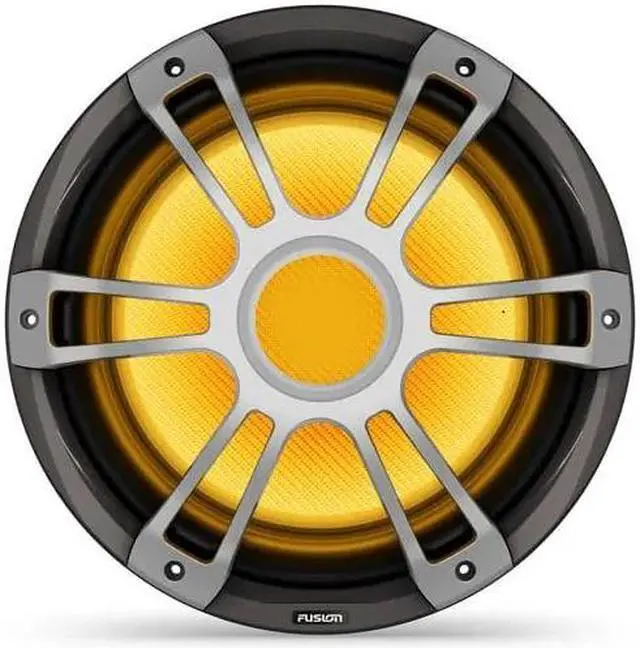

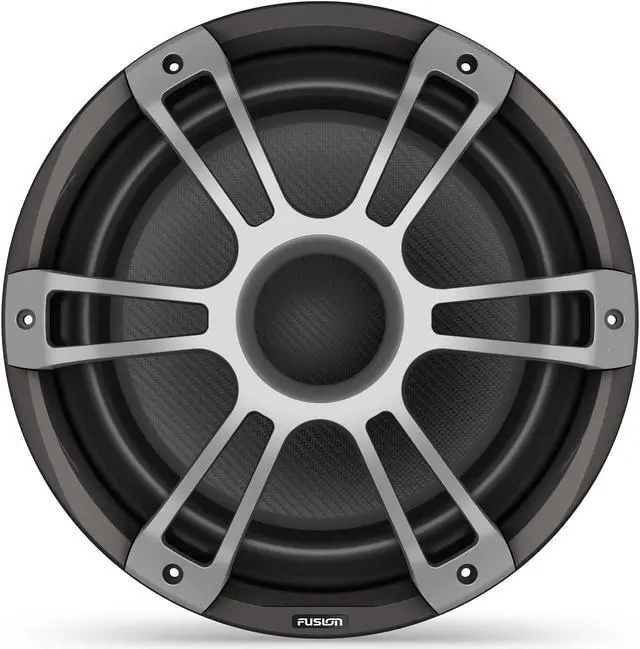

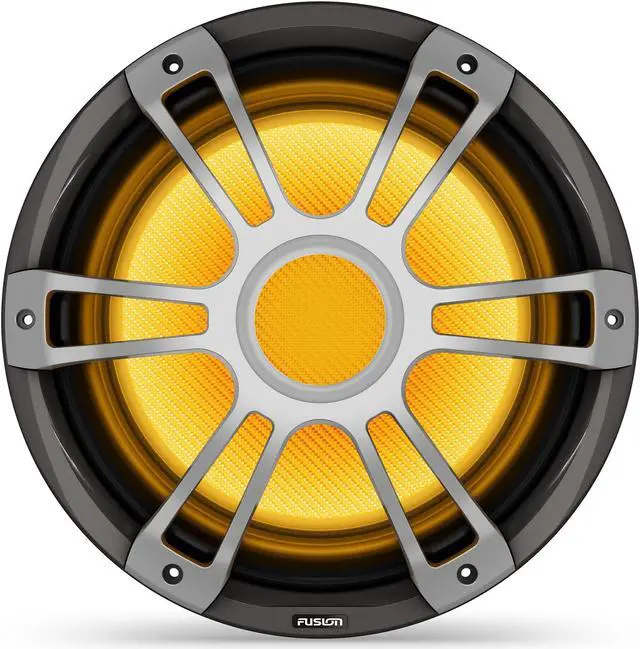

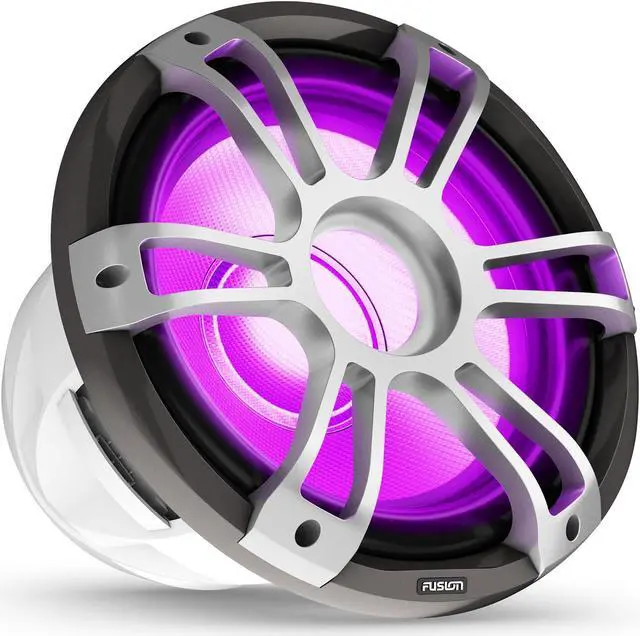

Fusion SG-SL123SPG Signature Series 3i 12" 1400-watt CRGBW Sports Marine Subwoofer - Gray

Bring the thunder. The Signature Series 3i subwoofers deliver the drama with the premium low frequencies to make your listening experience deep and powerful. Material enhancements feature marinized connectors and a redesigned grille, simplifying installation and providing superior protection from harsh conditions. Polypropylene cone technology provides exceptional self-dampening, high-fidelity and bass reproduction to give you the most premium onboard listening experience imaginable. Select sports style models also have CRGBW LED lighting to set the mood on your boat. Combining function and style, these subwoofers are made for life on the water, just like you.



Specifications:

Water and dust rating: IP65

Peak power (watts): 1400 watts

RMS power rating (watts): 700 watts

Sensitivity (1 watt @ 1 meter): 86 dB

Magnetic structure: 114 oz

Frequency response: 20 Hz2 kHz

Nominal impedance: 4 ohm

Recommended amplifier power (watts RMS): 2001000 watts

LED lighting: yes, CRGBW (sports style with LED models only)

LED supply voltage: 10.816 VDC (sports style with LED models only)

LED load current @14.4 VDC (max): 300 mA (sports style with LED models only)

Operating temperature range: 32122 degrees F (050 degrees C)

Voice coil diameter: 4"

Cone material: Polypropylene cone with rubber surround

Compass-safe distance: 181" (460 cm)

Subwoofer connection: Flying lead with water-resistant 2-way connector, 5.9" (150 mm)

LED connection (sports style with LED models only): Flying lead with water-resistant 6-way connector, 5.9" (150 mm)



Mounting Dimensions

Mounting diameter clearance: 12.05" (306 mm)

Mounting depth clearance: 8.15" (207 mm)



Optimum Enclosure Recommendations

Sealed enclosure volume (fully filled with absorption material): 2.12 cubic ft (60 L)

Ported (vented) enclosure volume (lined with absorption material): 8.83 cubic ft (250 L)

Port diameter: 4" (101.6 mm)

Port length: 5" (127 mm)
