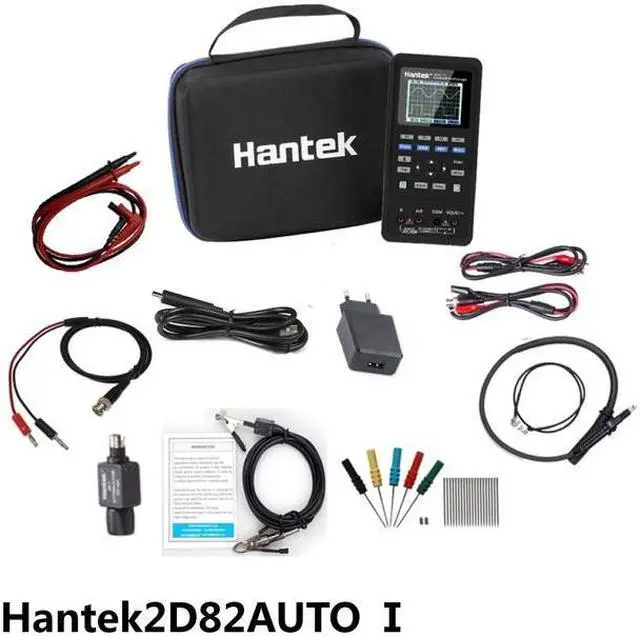

Hantek 2D82Auto Automotive Diagnostic 80MHz Oscilloscope 4in1 2CH+Multimeter+AWG (Hantek 2D82 Auto I)

Overview:

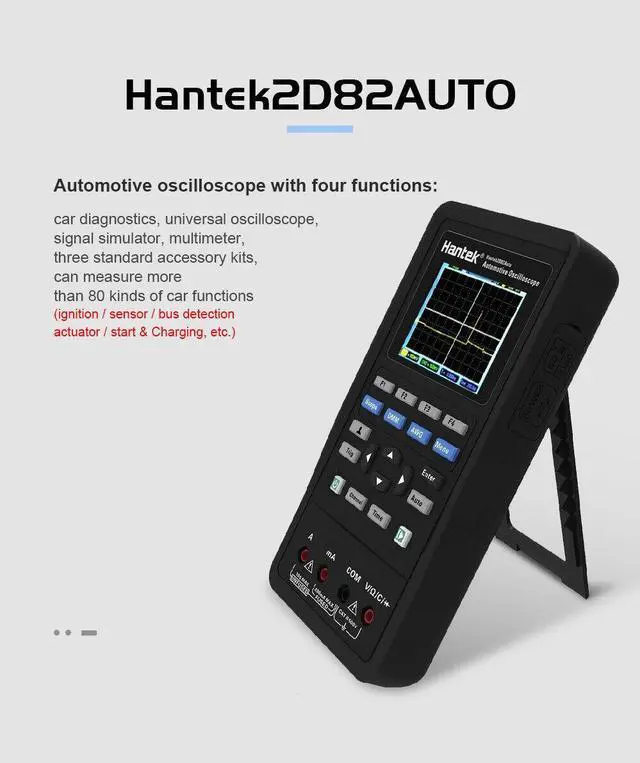

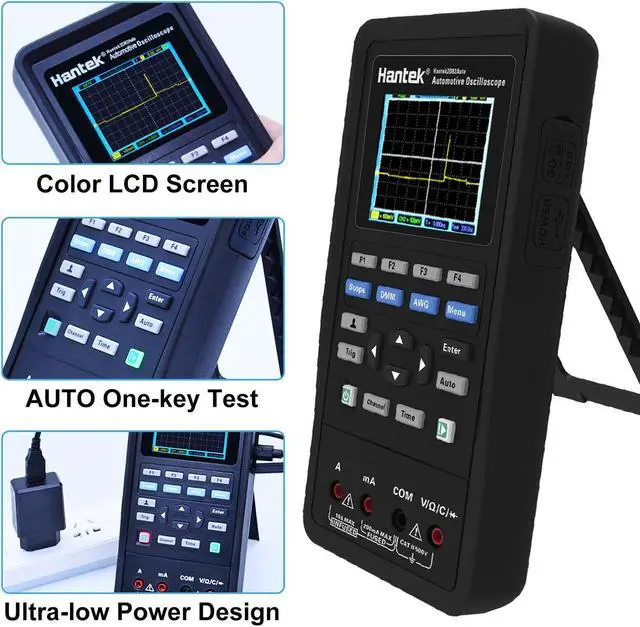

An all-new handheld oscilloscope-Hantek2000 series, it continues the compact and lightweight concept but with a new generation of 4 in 1 multifunction tester: Automotive Diagnostic, oscilloscope, signal source and multimeter; A small volume of the non-profit grip by a single hand; The suspendingstand was designed to support multi-angle adjustment; Ultra-low-power, Type C charging interface, each 2 hours battery charge allow working one full day or standbytwo months; High-definition color LCD screen display clear and delicate; Minimalist keyboard design simplifyoperation, easy to use.

Features:

Based on the 2D72, beyonds 2D72.
Automotive diagnostic functions added, owns all the 2D72's functions at the same time.

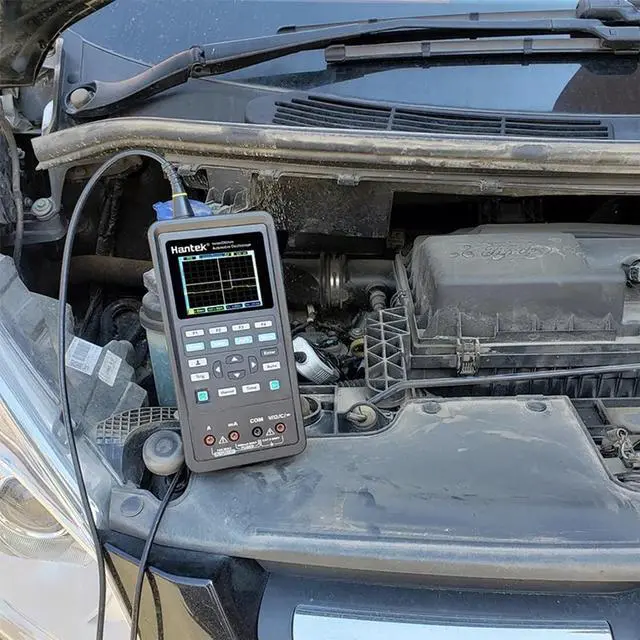

With more than 80 kinds of car testing, and scan the QR code on the back of device can open video help files to show you how to test vehicles.

First test projects: intake manifold vacuum degree & ignition, lampblack adjustment valve vacuum degree & ignition, exhaust ignition (idle), exhaust ignition (start).
Start & Charge: Charging circuit, current and voltage.
Actuator: Gasoline / Diesel.
Bus Detection: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus.
Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position...
Ignition: Primary/Secondary.
Oscilloscope: 2 channels oscilloscope, 80MHz bandwidth, 250M sampling rate.

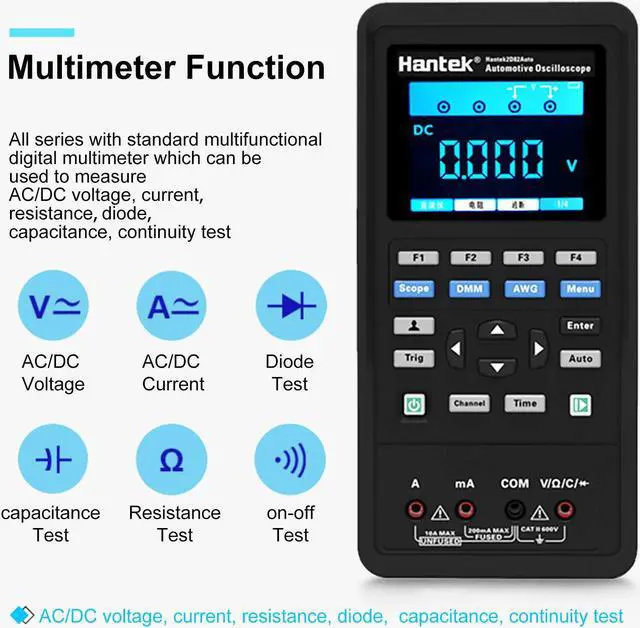

Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;

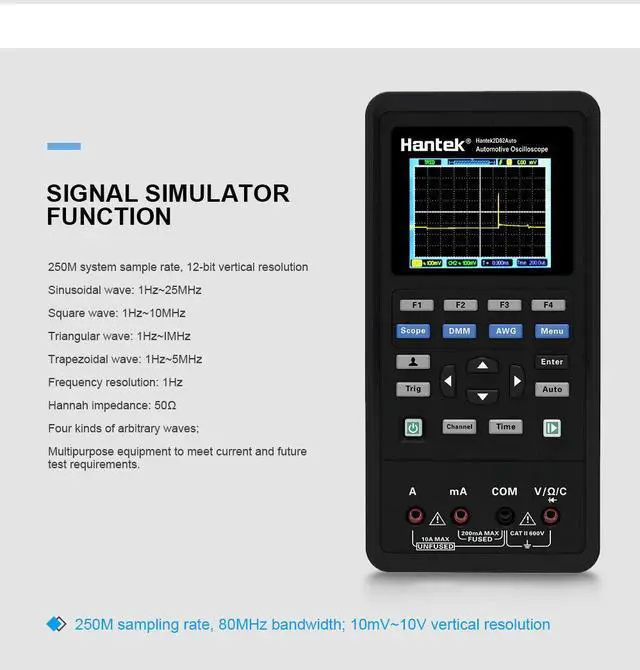

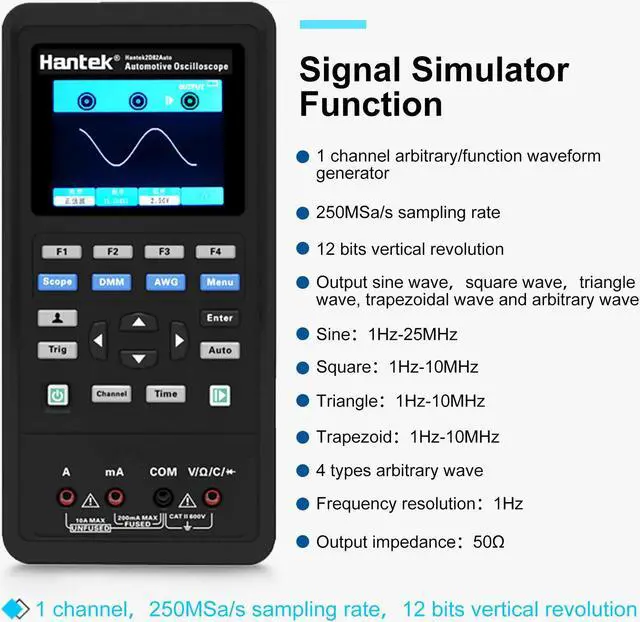

Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;

Due to air transportation restrictions, the product does not come with batteries
