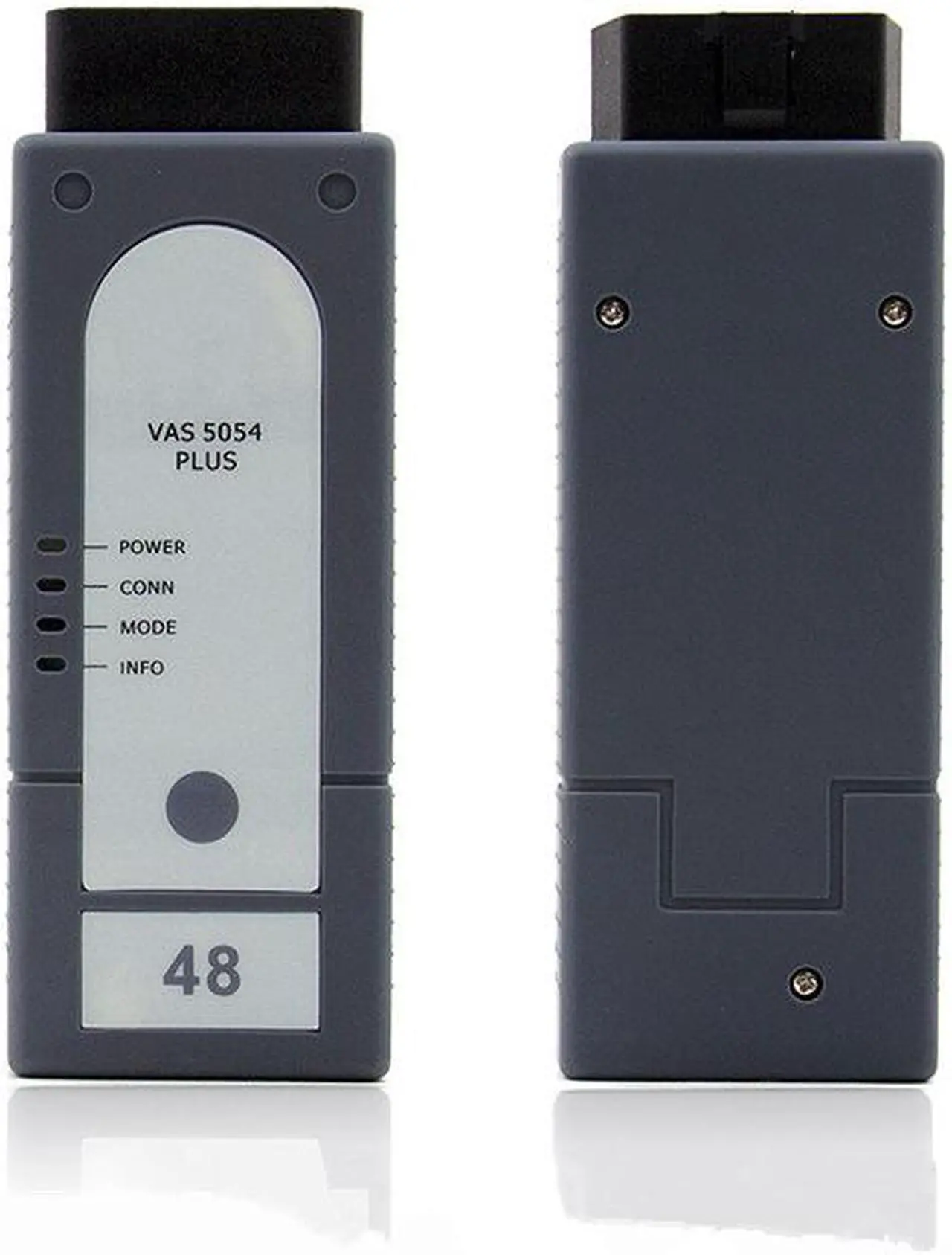

VAS5054A Plus OKI Full Chip ODIS V4.3.3 Bluetooth VAS5054 4.3.3 VAS 5054A 4.33 Diagnostic Tool

VAS 5054
Plus Feature:
1. With OKI Chip Support UDS Protocol
2.
Software version: ODIS V 4.3. 3 3.
support Multi languages: English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
4.
Supported Car Models: For VW, For AUDI, For SKODA, For SEAT For Bentley and For Lamborghini
5. Bluetooth Version (Bluetooth
Connection Password: 082145725)
Note:
1. If you need the software for Lamborghini, or Bentley, please leave us information when order, We will provide download link to you
2. This VAS 5054A hardware support Online Coding with VW dealer's software, our software do not support online coding VAS 5054 Plus ODIS V 4.3. 3 Computer Windows
System Requirements: Windows
System Language: American English Windows 7
System C: // have to be NTFS format
C: // need to have at least 40GB space for installing The diagnostic base system can access the VAS 5054 PLUS via Bluetooth or USB.
Access Via Bluetooth: After a connection to the VAS 5054 PLUS has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A. You need to specify this port when you install the diagnostic application The range of the wireless Bluetooth connection is 2 to 5 meters, depending on the environment and the type of Bluetooth adapter used on the PC side. The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported. The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054 PLUS through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054 PLUS is then complete and the device is ready for use by the diagnostic application. VAS 5054 Plus
Support Protocols: The vehicle protocols are handled directly in the VAS 5054 PLUS. This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054 PLUS software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC. K line (ISO9141-2) High-speed CAN (ISO 11898-2) Low-speed CAN (ISO 11898-3) J1850 (SAE J1850) UDS Protocol PWM

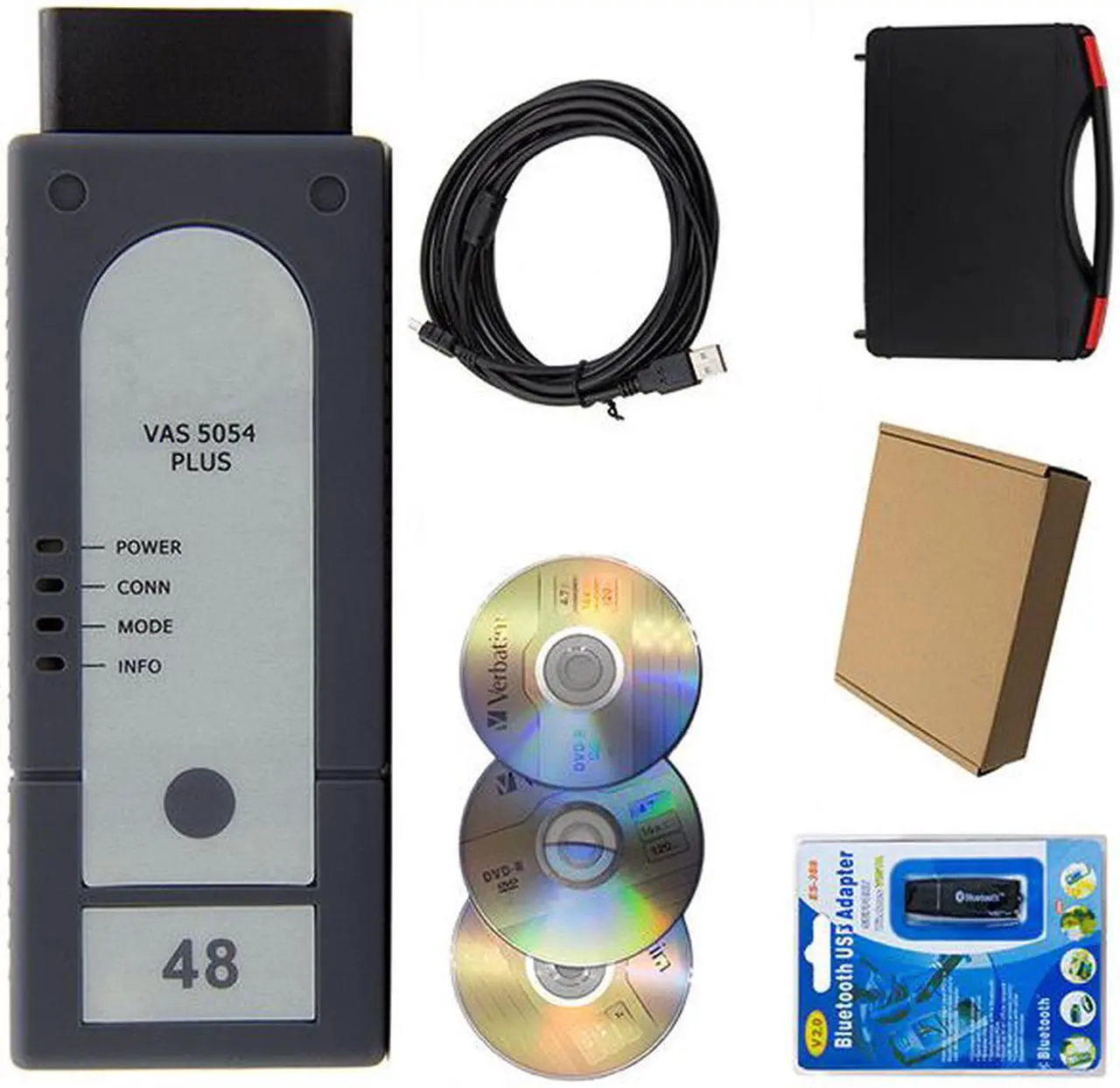

Protocol Package List: 1pc x VAS 5054A Plus Main unit 1pc x USB Cable 1pc x Bluetooth Adapter 1pcs x CD Software 1pc x Carry Case
