RayMarine EV-400 Power Evolution Autopilot EV-400 Power Evolution Autopilot

Raymarine EV-400 Power Evolution Autopilot System
Brand New

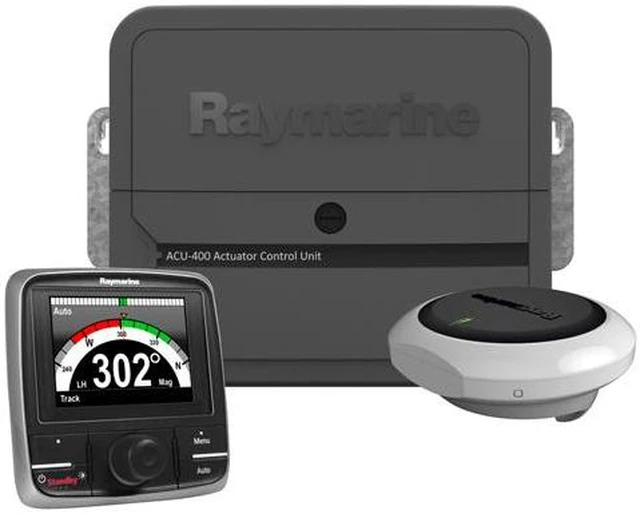

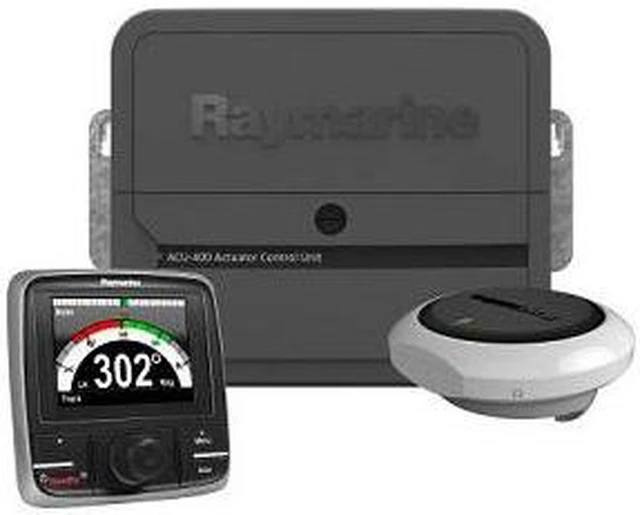

Includes Two Year WarrantyThe Raymarine T70162 is a power evolution autopilot system package consisting

of p70R autopilot control head, EV-1 sensor core and ACU-400 actuator control unit. The p70R

is a push-button operation controller and rotary control dial designed

primarily for powered craft. The LED backlighting delivers superior

visibility day or night and ultra-low power consumption. P70R also

supports group dimming along with i70 Instruments and e7 multifunction displays. It is

designed with a clean, modern look that looks great on today? s luxury sail and power vessels.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems.

SeaTalkng networking enables a single cable connection for power.

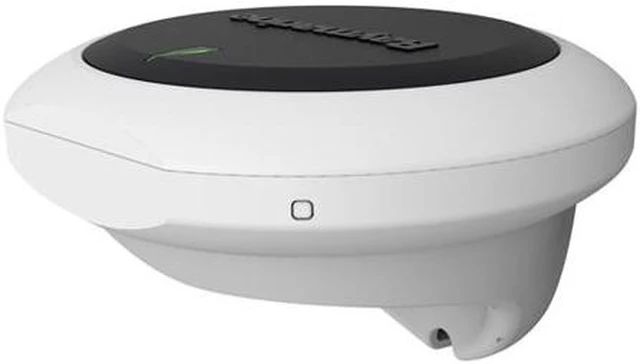

The EV sensor core, a 9-axis sensor that monitors vessel motion in all three

dimensions. The innovative EV sensor core combines advanced solid-state sensors with the

Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core

above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7

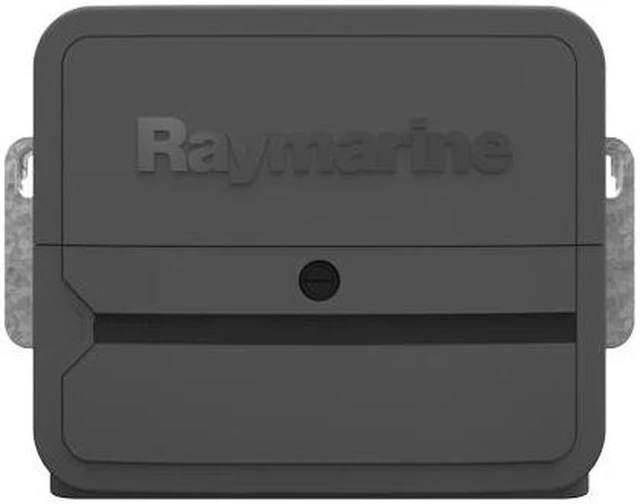

waterproofing and submersion standards. The rugged ACU (Actuator Control Unit)

delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.


T70162 Features:


Product # T70162

EV-400 Autopilot System Package
New LightHouse User Interface
Wide 160° Viewing Angles
Rotary Control Knob
Start Up Wizard
- Configures The Pilot Quickly & Easily
Anti-Reflective Coating f/ Improved Visibility
Supported Autopilot Modes
- Auto
- Standby
- Pattern
- Track
- Wind Vane
- Power Steer
- Jog Steer
Simple System & Group Dimming/ Illumination
Support for Multiple Data Sources
SeaTalk/ NMEA 2000 & SeaTalk1 Connectivity
EV Sensor Core
-Precision Monitoring Of Heading, Pitch, Roll & Yaw
-Flexible Installation Options
-Solid State Sensor Technology
-Fast & Reliable Heading Data For MARPA, Radar Overlay & Heading Modes
IPX6 & IPX7 Waterproof
Supports Type 2 & 3 Raymarine Hydraulic Linear & Rotary Mechanical Drives
Designed for Large Power Vessels, Type 2 & Type 3 Drives



Includes:

EV-1 Sensor Core
p70R Autopilot Control Head
ACU-400 Actuator Control Unit
