MSD 8276 Ignition Crank Trigger Pickup

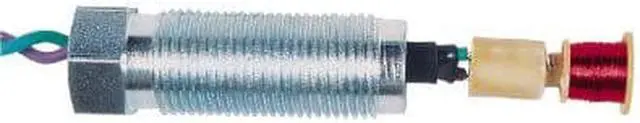

MSDs non-magnetic pick-ups are engineered for extreme applications. In fact, this pick-up was designed and tested on 300+ mph top fuel drafters. To live up to MSDs demanding expectations in these extreme applications, we took it upon ourselves to design and build the pick-ups in-house. This way we can control every aspect of their assembly and quality. Each pick-up is hand wound on a special bobbin and terminated to our tinned conductor, Melonite jacketed wiring. These wires are also routed through a strain relief for protection. This assembly is then installed into the precision housing and is potted with a fracture resistant epoxy compound.

To ensure that the windings are entirely encased in epoxy, the pick-ups undergo a vacuum procedure to remove any air inside the housing. All of these procedures are necessary to produce the strongest, most reliable non-magnetic pick-up available.
