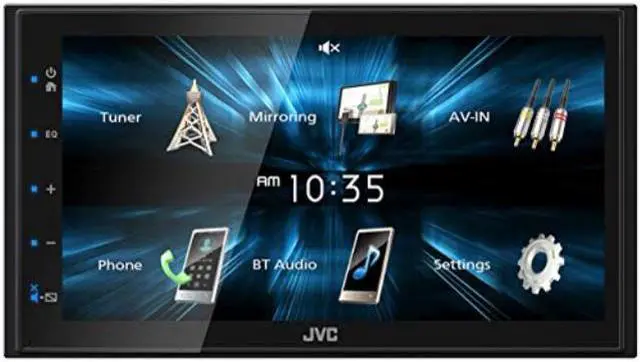

JVC KW-M150BT JVC D.Din Mechless 6.2 AM/FM/BT/ USB Smart Phone Mirroring

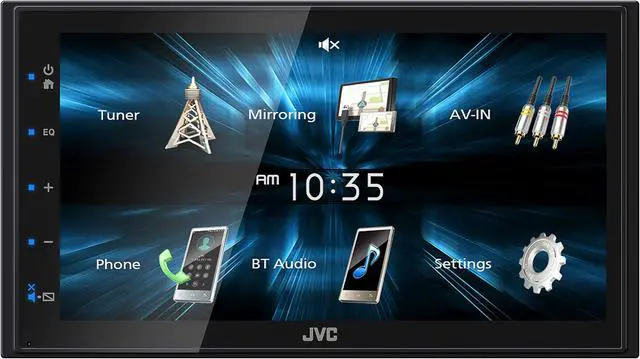

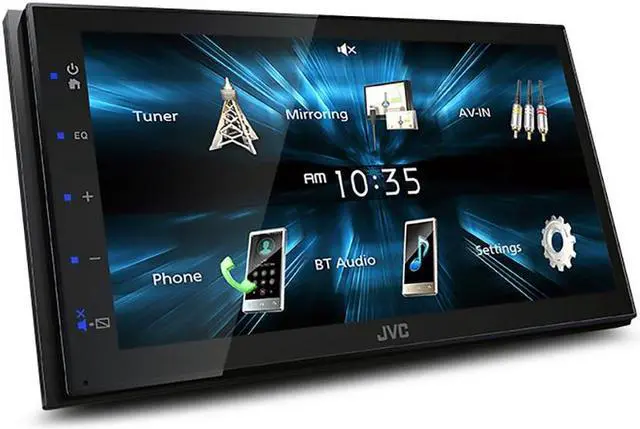

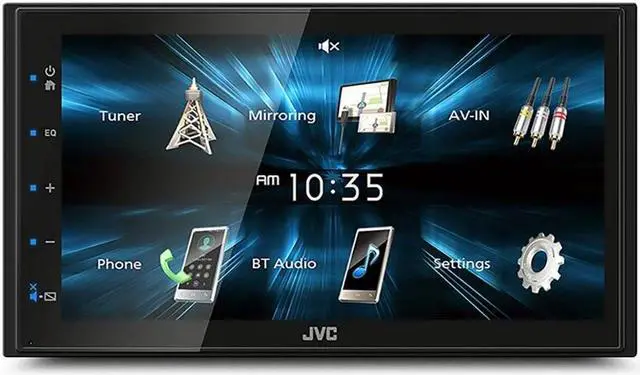

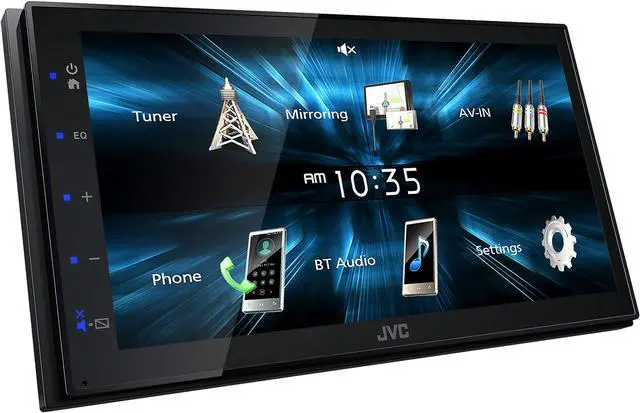

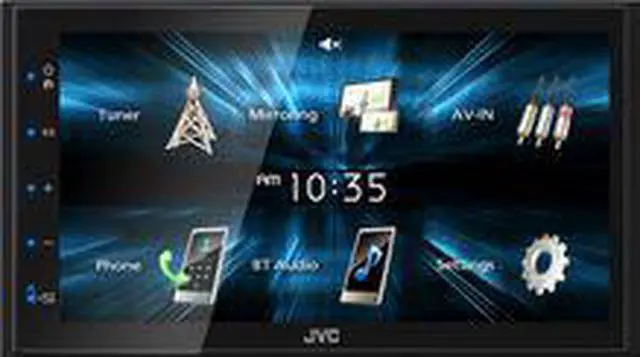

JVC KW-M150BT Digital Media Receiver featuring 6.8" WVGA Capacitive Monitor



Monitor:

•Screen Size: 6.8" Wide VGA

•Touch Panel: Capacitive with Printing

•Key Illumination Color: Blue

•Multilingual Display: Yes[2]

Media Playback:

•MP3 Compatible with Tag: USB

•WMA Compatible with Tag: USB

•WAV Compatible with Tag: USB

•AAC Compatible with Tag: USB

•FLAC Compatible with Tag: USB

•H.264 Compatible: USB

•MPEG 1/2 Compatible: USB

•MPEG 4 Compatible: USB

•AVI/MKV Compatible: USB

Bluetooth Control:

•Built-in Bluetooth[1]: Yes (Version 4.2, Wired-Mic included)

•Hands Free Call: Yes (HFP1.6 Wideband Speech)

•Audio Streaming & Control (A2DP, AVRCP): Yes

•Voice Dialing (voice recognition compatible mobile phone required): Yes

•Phone Book Access Profile (PBAP): Yes

Android Control
•Mirroring for Android: Yes (via USB)

•Android Music Playback: Yes (via Bluetooth(R))

iPod/iPhone Control
•iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))

USB:

•USB Port: x1 (High Speed)

•Position: Rear

•USB Power Supply: Yes (1.0A)

•Maximum Power Output (Front & Rear): 45Wx4

•Full Bandwidth Power (Front & Rear): 16W x 4 (Full Bandwidth Power, at less than 1% THD)

•EQ: Yes (13-Band Graphic EQ)

•Preset EQ: Yes (7Preset + 3user)

•Bass Boost: Yes

•High-Pass Filter/Low-Pass Filter: Yes/Yes

•Time Alignment: Yes

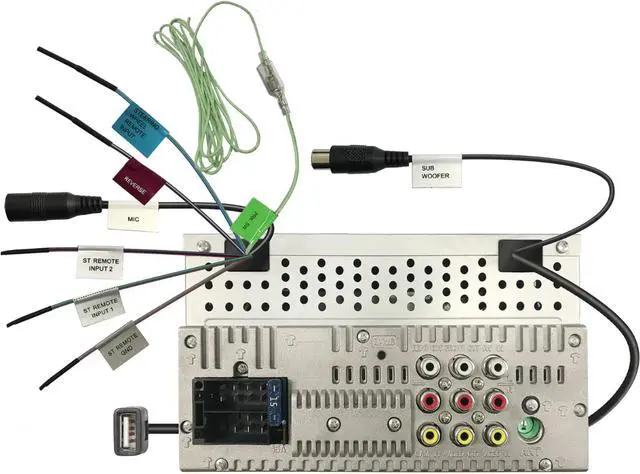

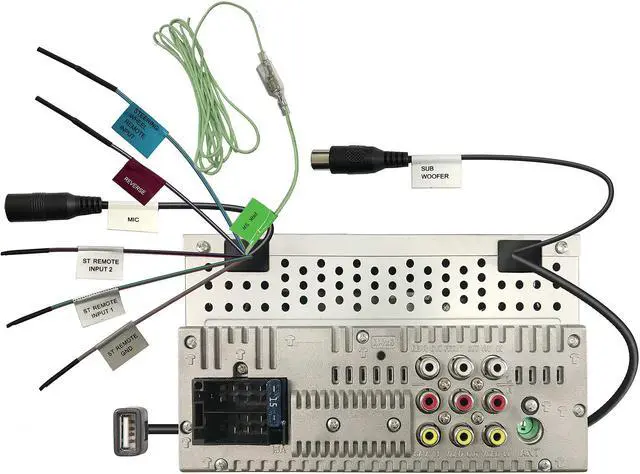

Inputs and Outputs
•AV Input: RCA x 1

•Video Out: RCA

•Rear view camera Input: Yes

•Line Output Terminals: 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)

•Pre-output Level/Impedance: 2V / 10k ohms

•Subwoofer Output with Level/Frequency Control: Yes

General:

•Face Type: Fixed

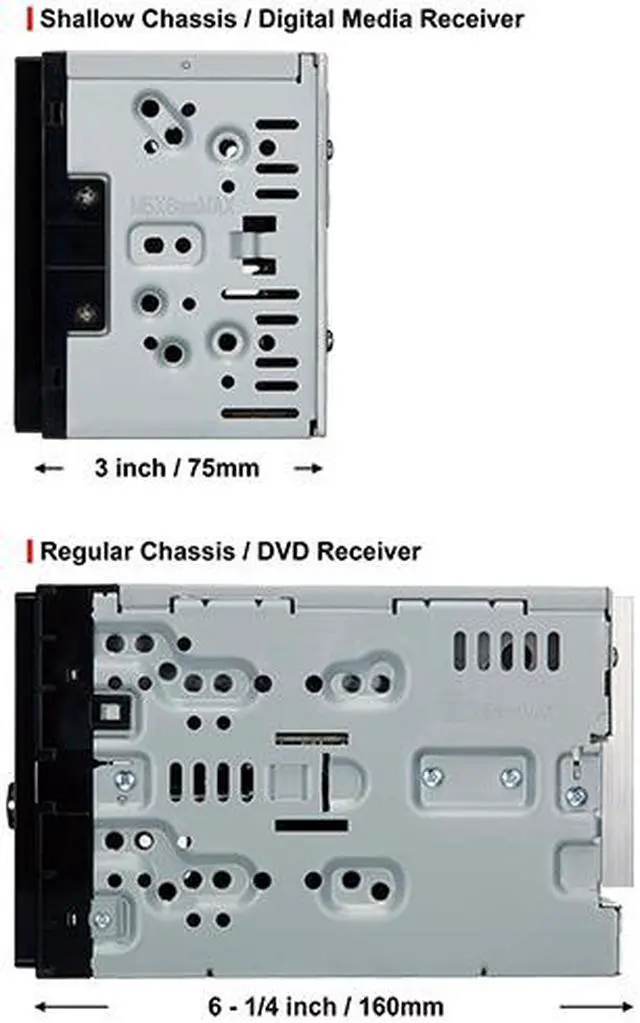

•Shallow Chassis: Yes

•Wireless Remote Control: Ready (RM-RK258 required)

•Steering Remote Control Ready: Yes

•ISO Connector: Yes

Dimensions (W x H x D)
•Installation Size: 7-3/16" x 4-7/16" x 3" (182 x 112 x 75 mm)

•Weight: 2.7 lbs. (1.2kg) : Including sleeve and trim plate

•Unit weight in individual package: 3.75 lbs. (1.7kg)
