JVC KD-X560BT 1-DIN Power Sports Digital Media Receiver 3 Inch LCD Display compatible with Front Camera

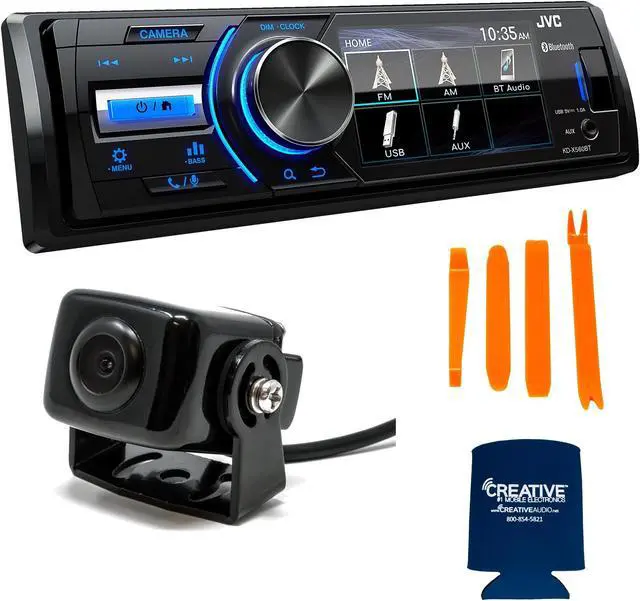

JVC KD-X560BT 1-DIN Power Sports Digital Media Receiver 3 Inch LCD Display compatible with Front Camera - This bundle includes a JVC KD-X560BT 1-DIN Digital Media Receiver With Bluetooth, USB, 3" Display, & Coated PCB, a Jensen BUCAM300AJ Back-Up Camera, a pry kit, and a CreativeAudio coozy.



JVC KD-X560BT 1-DIN Digital Media Receiver With Bluetooth, USB, 3" Display, & Coated PCB


Conformal Coating - A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants.

Rear View Camera Input - Linked with a back gear, the display automatically switches to the view from the rear camera.

9-Preset EQ and 13-Band Graphic EQ - With 9-Preset EQ patterns to choose from, it's easy to create the sound you like, based on musical genre or your personal preference.

Shallow Chassis - The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.



Screen Size - 3.0" 16:9 QVGA

Key Illumination Color - Blue

Built-in Bluetooth - Yes (Wired-Mic included)

Hands Free Call - Yes (HFP1.5 Wideband Speech)

USB Port - x 1 (High speed)

Radio Broadcast Data System (RBDS) - Yes

Preset Stations - 30 (FM:15,:AM:15)

Maximum Power Output (Front & Rear) - 45W x 4

Full Bandwidth Power (Front & Rear) - 16W x 4

Front AUX Input - Yes

Rear view camera Input - Yes

Wireless Remote Control - Ready (RM-RK258 required)

Steering Remote Control Ready - Yes

Dimensions (W x H x D)

Installation Size - 7-3/16" x 2-1/16" x 4-5/8" (182 x 52 x 117 mm)

Weight - 1.65 lbs. (0.75kg)


Jensen BUCAM300AJ Back-Up Camera


waterproof CMOS color rear-view camera

universal fit

170-degree wide angle

parking guidelines

minimum illumination: 0.5 Lux

resolution: 640 x 480

2 Screws

Self-adhesive tape

Installation Manual
