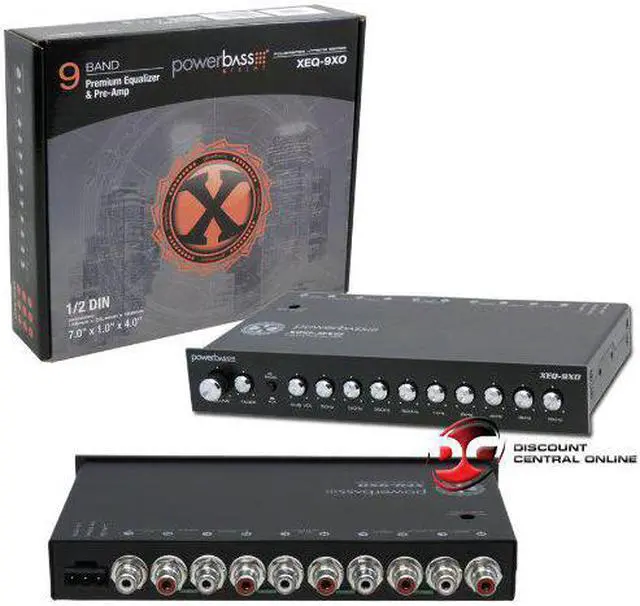

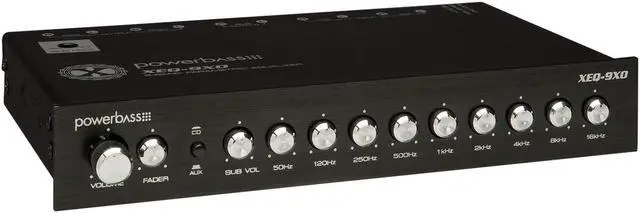

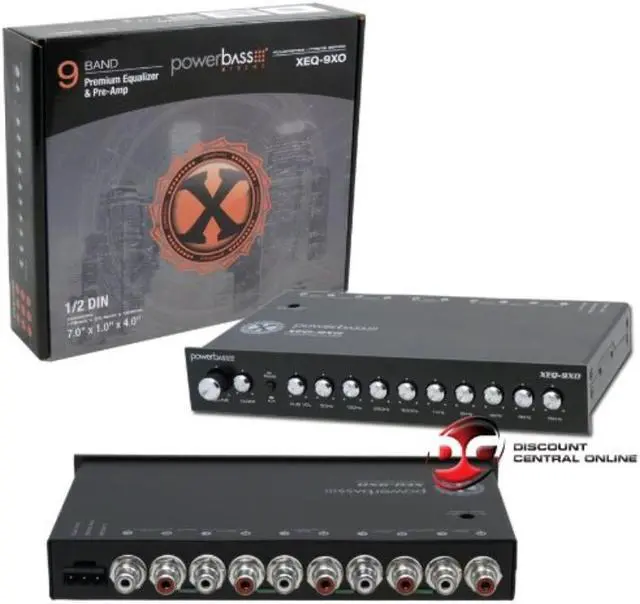

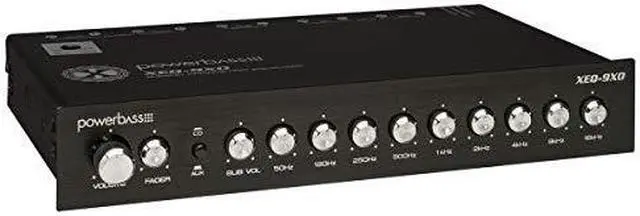

PowerBass XEQ-9XO 9 Band Active Equalizer Pre-Amp w/Subwoofer Control 1/2 Din

XEQ-9XO ACTIVE 9 BAND EQUALIZER / PRE-AMP The XEQ-9XO 4 Band Equalizer and Pre-Amp is the perfect solution to take your sound system from good to excellent by giving you 9 EQ controls, subwoofer volume & crossover controls, fader and multiple inputs. Most all of us have multiple musical tastes and each one of them require different listening desires. By having the ability to set different EQ settings gives us the ultimate control over the sound reproduction and multiple source inputs. XEQ-9XO Equalizer 9-Band Active Equalizer Bi-Polar Mosfet PWM
Power Supply Frequency Response: 20HZ-40KHz Variable Subwoofer Frequency Roll-off 30Hz-120Hz Front Panel Source Selector Independent Subwoofer Volume Control Front and Rear Output Fader 2 Low
Level RCA Inputs: Rear Aux and Rear CD 3 Low
Level RCA Outputs: Sub, Front and
Rear EQ Centers: 50Hz, 120Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz & 16kHz
Specifications: Pre
Graphic Frequency: 50Hz, 120Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz and 16kHz
Inputs: switchable, 2-source (2 RCA rear panel)
Equalization Boost/Cut: -/+ 18dB
Subwoofer Frequency Range: 30Hz - 120Hz
Channel Separation: 85dB Maximum
Output Voltage: 10Vrms
Power Supply: 11-15V DC negative ground
Height: 1"
Width: 7"
Depth: 4"
Dimensions (in Inches): 1" x 7" x 4"
S/N Ratio: >101dB
Total Harmonic Distortion: 0.02 %
Frequency Response: 20 Hz - 40 kHz
