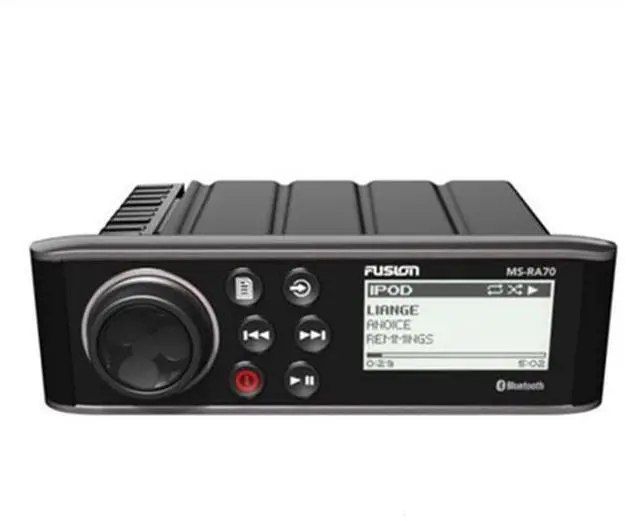

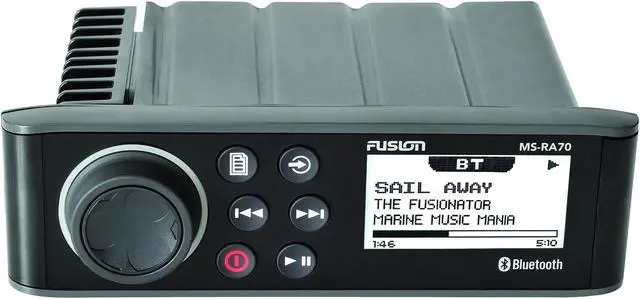

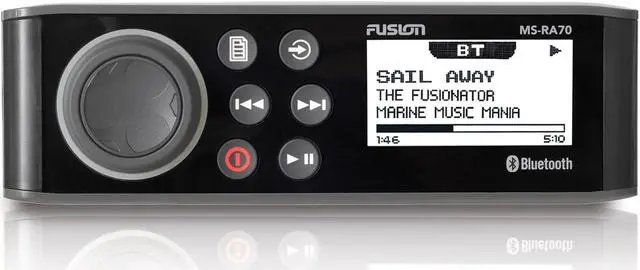

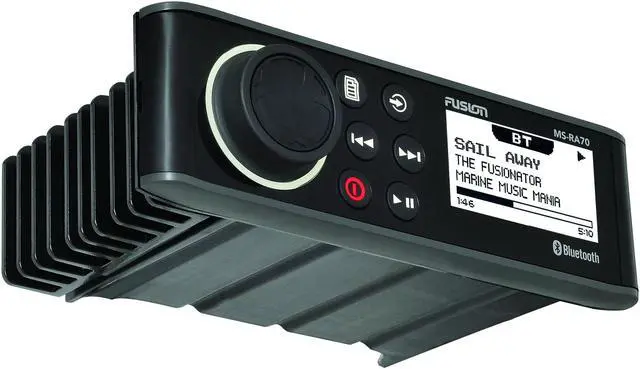

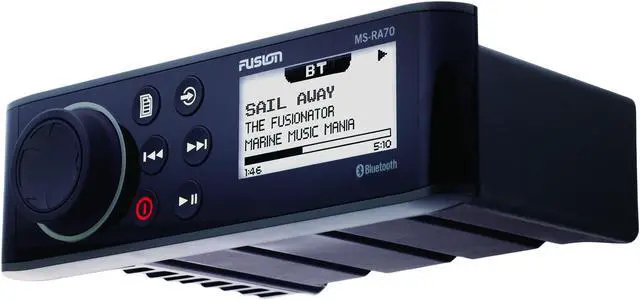

Fusion Entertainment MS-RA70 Marine Entertainment System with Bluetooth

Introducing the MS-RA70, Fusion's sleekest value-packed marine stereo, designed to deliver a quality on-water entertainment experience by incorporating some of the latest marine technologies. The MS-RA70 is engineered to seamlessly replace any standard DIN sized non-marinized stereo without the need to reconfigure dash space. Clever styling gives the installer the option of either mounting the stereo with a conventional flush finish or integrating it flat into a glass helm, ensuring a high-end finish to the installation.



UPDATE: Now with added support for Fusion-Link Lite via ANT for Garmin watch control.



Specifications:

Tuner AM/FM with RDS (where available)

Tuner Region USA, Australasia, Europe and Japan

Multi-Language User Interface English, French, German, Spanish, Dutch and Italian

Peak Power 200W Max. (@ 4 )

Audio Zones 2 on-board amplified zones

Nameable Zones Up to 10 characters per zone

Line Out 2 (1 x L + R per zone. Requires amplification)

Subwoofer Out 1 (Zone 1. Requires amplification)

Auxiliary Inputs 1 x Stereo RCA Input (AUX)

iPod/iPhone Made for iPod and iPhone - supports IAP 2 protocol only

Android Open Accessory (AOA) Support for compatible Android media devices via USB. Android support is limited to devices which support AOA protocol.

Display 128x64 monochrome optically bonded LCD

USB 1 x USB connector at the rear of the unit, supports 1 amp charging

Audio Format USB MP3

Water Resistance (IP Rating) IPX7 water resistant from the front panel when correctly mounted.

Chassis Electrically isolated glass filled composite chassis with an aluminium heat sink

Dimensions: Length x Height x Depth (Front Panel incl. Volume Encoder) 188mm x 60mm x 23.5mm [7-7/16" x 2-3/8" x 15/16"]

Mounting Dimensions: Height x Depth 50mm x 100mm [2" x 3-15/16"]



Amplifier Specifications

Amplifier Class-AB: 4 x 26W rms @ 14.4Vdc input, 4 , 10% THD+N
