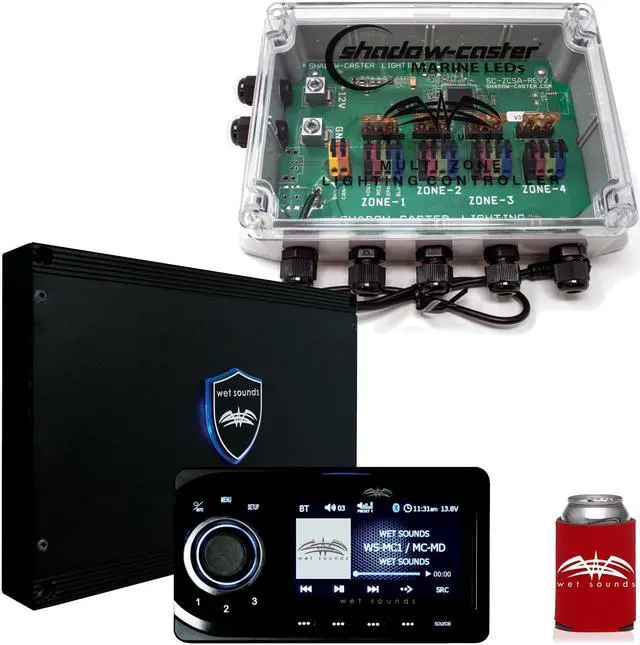

Wet Sounds WS-MC1 & LED Controller Bundle: Marine Media System with Full-Color LCD Display & 4-Zone LED Controller

Wet Sounds WS-MC1 Marine Media System with 4-Zone Control, Bluetooth & Full Color LCD Display.

Contained in this is the MC-MD (Multimedia display) & the MC-BB (Black Box)


• AM/FM/Weather Band tuner with RDS

• Bluetooth Streaming, Auxiliary, USB, Pandora®

• Simple & Secure Bluetooth Pairing for Android & IOS (A2DP/AVRCP 1.4)

• 5” Ultra Bright full color TFT display – displays album art via connected devices

• Playlist & folder browsing via BT or USB Connection

• Displays Album Art from Connected Devices

• Water-resistant rotary control for IPX6 Intrusion protection

(MC-MD)

• Conformal Coated PC Board for IPX5 Intrusion Protection

(MC-BB)

• 4 Zones of Independently Controllable Audio Output with 4V Signal Output

• Internal Power Amplifier 4x50W @ 2 Ohm This is part of the black box mentioned above

• Adjustable Input Gains

• Day/Night Illumination & Dimming

• Accepts the optional MC-TR transom remote

• Fully upgradeable operating system software via USB port

• 4 Zone lighting control (with Optional WS-4Z-RGB-BB sold separately)


Included with the WS-MC1:

MC-MD Main Display w/soft plastic protective cover

MC-BB Black Box

long extension cable to connect the MC-BB to the MC-MD

Wiring Harness, Mounting hardware



Wet Sounds/Shadow Caster Multi-Zone Black Box RGB lighting distribution case.

This is an ADD ON to the Wet Sounds WS-4Z-RGB and the Wet Sounds WS-MC1 Media Receiver that allows an additional 100 Amps of RGB LEDs to be controlled.

Size: 8.75” Length x 5.75” Width x 2.25” Height (222 x 146 x 57mm)

6 individual connections; easy to use color Coded Connections

Supports up to 100 amps of current

UV Stabilized Polycarbonate Housing with Clear Lid

IP-63 Wash down rated enclosure

Compatible with SCM-WC-PD wireless controller

Accepts up to 10 awg wire input

Separate ATC/ATO style fuses for each channel (included)

Made in the USA
