New 9Pcs 100 Degree Camera Module 1MP OV9732 1280x720 USB Free Driver Manual Focus, with 2 Meter Cable for WinXP/7/8/10
Limited time offer, ends 07/26 By LUOYIMAN
- 1. Photosensitive film: (1/4inch ); 2. The highest effective pixel: 1280(H)x720(M); 3. Lens Size: 1/4 inch (4: 3); 4. Pixel Size: 3.0umx3.0um; 5. Image area: 5.7mm x 4.28mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Yaregelun
6.
Output image format: MPEG/YUV2 (YUYV)
7.
Supported resolutions and frame rates: 1280x720@30fps MJPEG 1280x720 @10fps Yuv 800x600 @30fps MJPEG 800x600 @15fps Yuv 640x480 @30fps MJPEG 640x480 @30fps Yuv
8.
Camera board assembly technology: SMT
9.
Focus: Fixed
10.
Center definition: 600LW/PH (Center)
11.
Signal-to-noise ratio: TBD
12.
Dynamic range: TBD
13.
Sensitivity: 1.4V /lux-sec@550nm
14.
Minimum illumination: 0.5 lux
15.
Shutter type: Electronic rolling shutter / Frame exposure
16.
Interface type: USB 2.0 High Speed
17.
Automatic exposure control: supported
18.
Automatic white balance AEB: supported
19.
Automatic gain control AGC: supported
20.
Adjustable parameters: brightness/contrast/color saturation/ clarity/gamma/white balance/backlight contrast/exposure 21.
Lens specifications:
length: 2.84 m
Aperture F 2.0 diagonal: 100° Interface M12xP 0.5
Colour: As
Shown Material: PC Slightly different circuit board printing, which not affect use

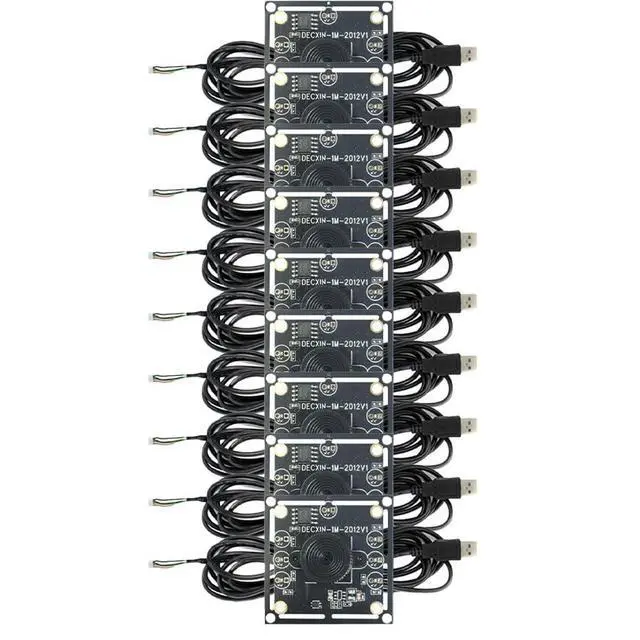

Package Contents: 9 x 100 Degrees OV9732 Camera Module 9 x 2m USB Cable Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
6.
Output image format: MPEG/YUV2 (YUYV)
7.
Supported resolutions and frame rates: 1280x720@30fps MJPEG 1280x720 @10fps Yuv 800x600 @30fps MJPEG 800x600 @15fps Yuv 640x480 @30fps MJPEG 640x480 @30fps Yuv
8.
Camera board assembly technology: SMT
9.
Focus: Fixed
10.
Center definition: 600LW/PH (Center)
11.
Signal-to-noise ratio: TBD
12.
Dynamic range: TBD
13.
Sensitivity: 1.4V /lux-sec@550nm
14.
Minimum illumination: 0.5 lux
15.
Shutter type: Electronic rolling shutter / Frame exposure
16.
Interface type: USB 2.0 High Speed
17.
Automatic exposure control: supported
18.
Automatic white balance AEB: supported
19.
Automatic gain control AGC: supported
20.
Adjustable parameters: brightness/contrast/color saturation/ clarity/gamma/white balance/backlight contrast/exposure 21.
Lens specifications:
length: 2.84 m
Aperture F 2.0 diagonal: 100° Interface M12xP 0.5
Colour: As
Shown Material: PC Slightly different circuit board printing, which not affect use
Package Contents: 9 x 100 Degrees OV9732 Camera Module 9 x 2m USB Cable Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
