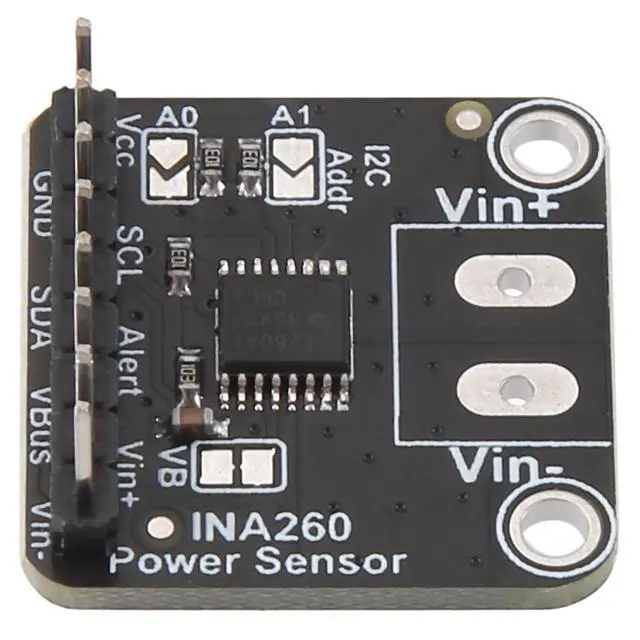

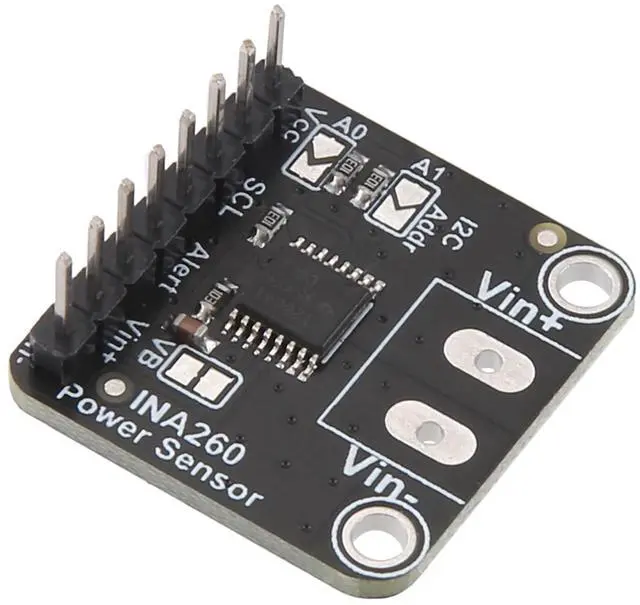

INA260 Detection Sensor Module High or Low Side Voltage Current Power Sensor Portable Module

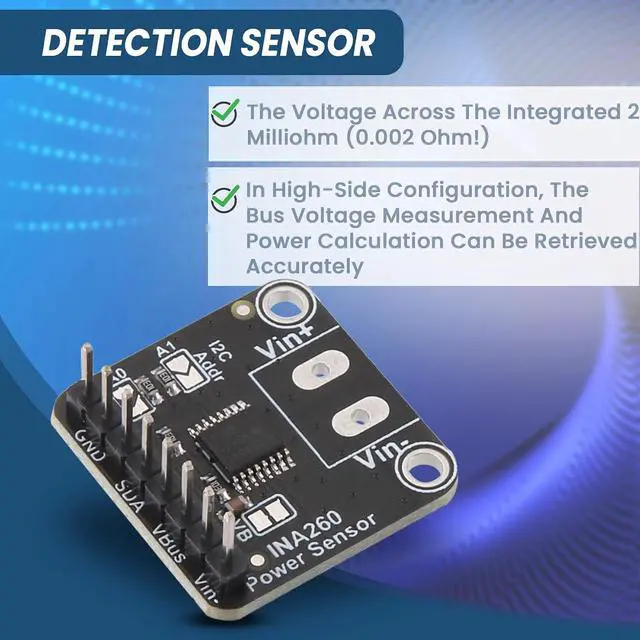

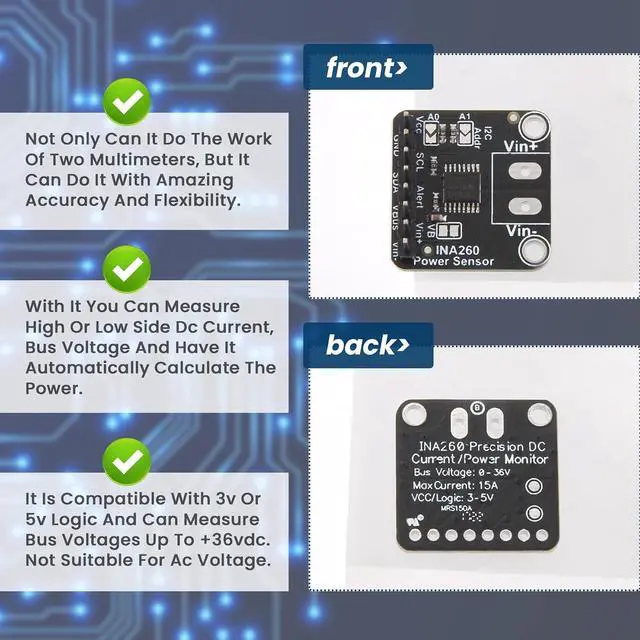

- 3. The Voltage Across The Integrated 2 Milliohm (0.002 Ohm!), 0.1% Shunt Resistor Is Measured By An Internal 16-Bit Adc, Allowing An Impressive Current Range To Be Measured With 1.5 Ma Resolution. (The Resistance Of The Resistor Is So Low That Some Multimeters Register It As A Short Circuit!); 2. Works Perfectly With for Any Circuitpython Or for Compatible Microcontroller As Well As Single Board Computers Such As for . It Is Compatible With 3v Or 5v Logic And Can Measure Bus Voltages Up To +36vdc. Not Suitable For Ac Voltage.; 1. Not Only Can It Do The Work Of Two Multimeters, But It Can Do It With Amazing Accuracy And Flexibility. With It You Can Measure High Or Low Side Dc Current, Bus Voltage And Have It Automatically Calculate The Power. It Does This With 1% Accuracy Over An Impressive Voltage, Current, And Temperature Range, While Transmitting Data In An Easy-To-Use Format Over .; 4. In High-Side Configuration, The Bus Voltage Measurement And Power Calculation Can Be Retrieved Accurately, But Advanced Hackers Who Want To Measure The Bus Voltage In Low-Side Configuration Need To Cut The Jumper Connecting V+ And Vbus And Connect The Vbus Pin To The Voltage Bus.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

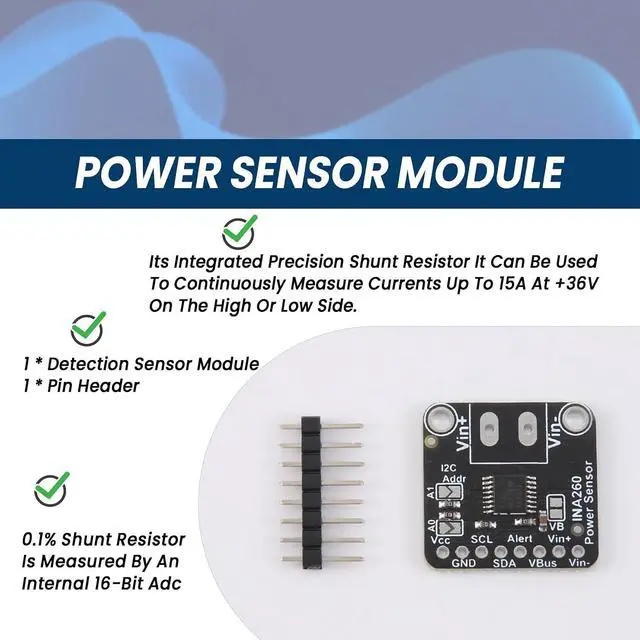

Yaregelun Most Current Measuring Devices Operate With Some Significant Limitations That Limit Their Usefulness. Many Are Low Side Only, Which Can Cause Problems When The Ground Reference Changes With Current. Other Devices, Such As Its Sister Ina219b, Avoid This By Measuring The High Side, But Require Changing Their Shunt Resistor To Measure A Different Current Range. The Ina260 Avoids These Limitations And With Its Integrated Shunt Resistor It Can Be Used To Continuously Measure Currents Up To 15A At +36V On The High Or Low Side.
Type: Detection

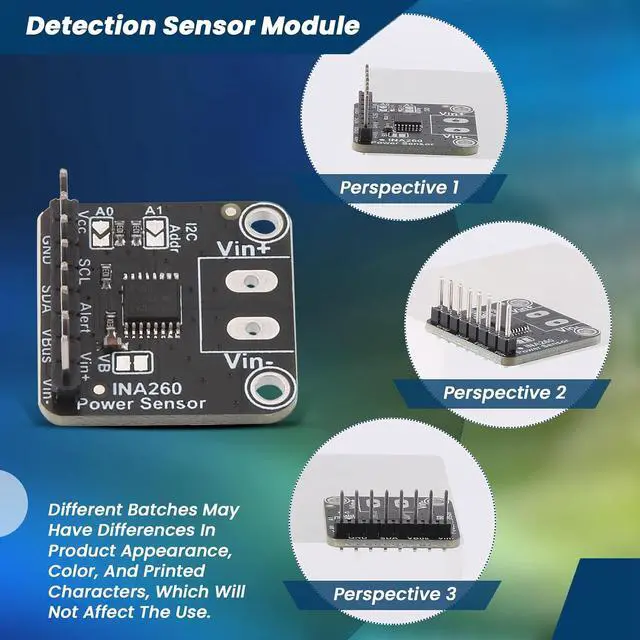

Sensor Note: Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use.
Colour: As
Shown Material: FR-4

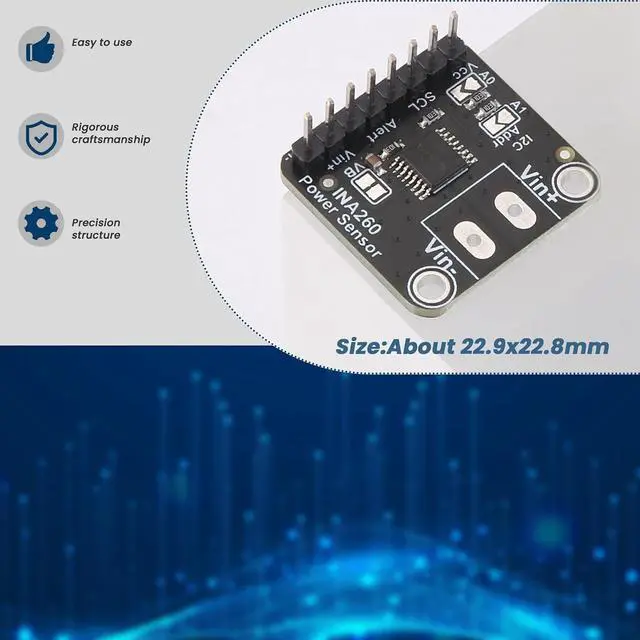

Size: About 22.9 x 22.8 mm
Package Contents: 1 * Detection Sensor Module 1 * Pin Header Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Type: Detection
Sensor Note: Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use.
Colour: As
Shown Material: FR-4
Size: About 22.9 x 22.8 mm
Package Contents: 1 * Detection Sensor Module 1 * Pin Header Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
