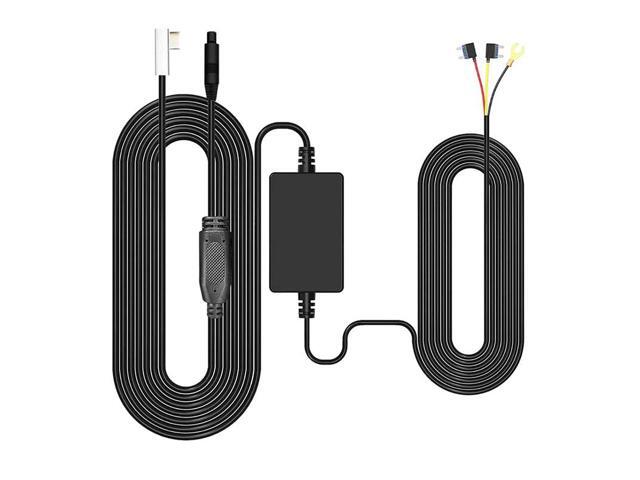

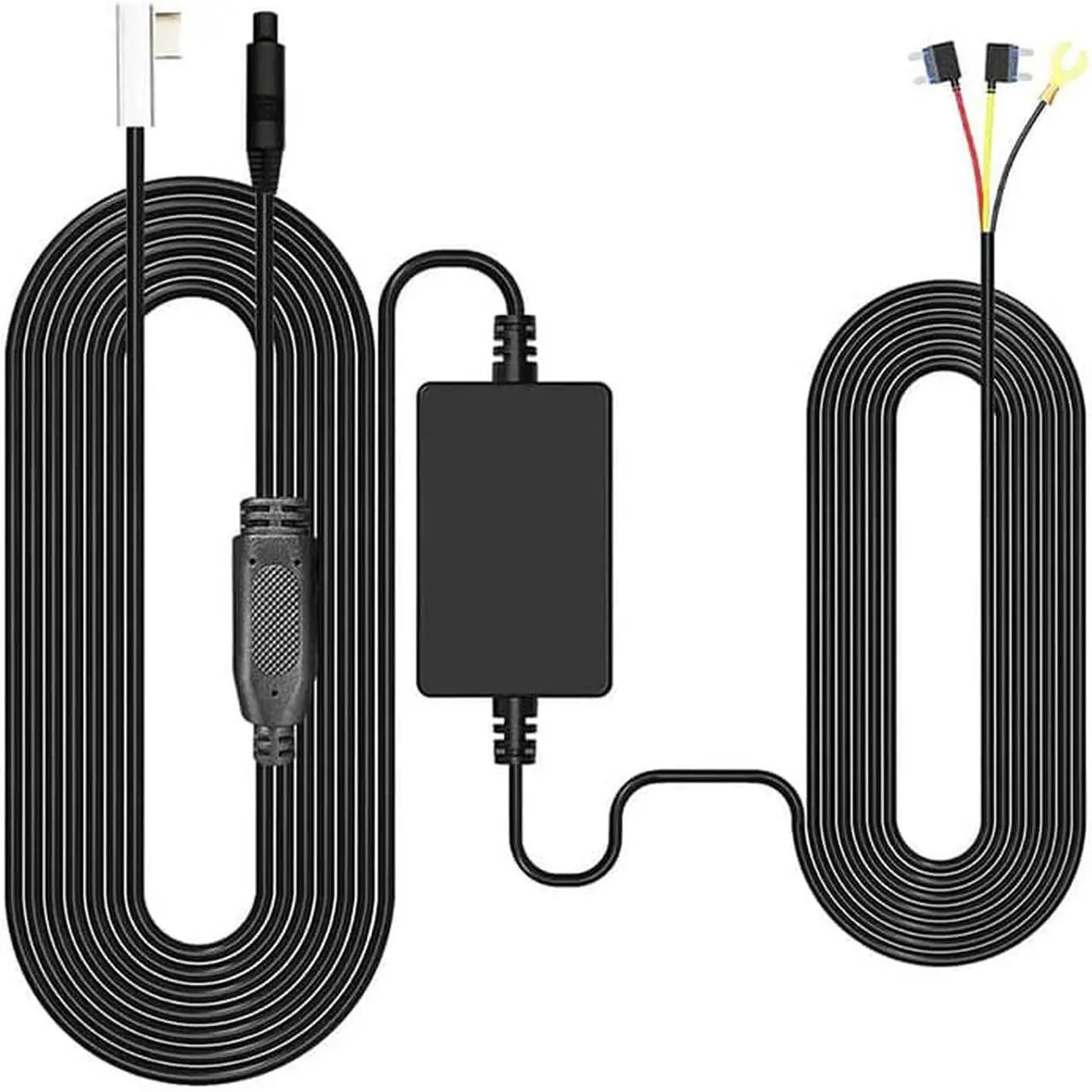

WOLFBOX Dedicated Type-C Port Hardwire Kit for D07 Dash Cam Parking Monitor
- About this item
- Compatible 12 24V VehiclesThis hardwire kit connects the camera directly to the car, truck, bus, suvs, or big rig for continuous power, accepts voltage from any type of vehicles runs on 12 24V.
- 24/7 Parking SurveillanceDirectly to the battery for constant 24hrs/7days power to protect against theft when your car is in the parking lot.
- Power SupplyDirectly to the ignition wire for power only so it can turn on and off with the ignition and you don't have to worry about plugging in the charger, or turning the dashcam on, or any such stuff.
- Low voltage protectionIt has a smart low voltage protection system that will automatically shut off the power to your dash cam when the battery voltage drops to 11.6V or 22.8V, thus preventing it draining the battery.
- WORRY FREE SERVICES1 year free-replacement warranty for quality problems.
- Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may req
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Warm tips: Please make sure the ACC and BAT is connected correctly.
Time lapse function: After WOLFBOX mirror dash cam is connected to this dedecated hardwire kit, and turn the time-lapse function on the dash cam, the camera will enter time-lapse recording function automatically when the car engine is off. In this mode, it records one frame per second, which is extremely save power and capacity, you don't need worry about drain out of car battery. This is because when the car engine is off, the ACC will have no power, and the dash cam will detects it and change recording mode from normal to time lapse.
Instructions for installation:
1. Stop the engine.
2. Open the fuse box.
3. Use a power detector to detect the constant power and ACC power (emergency power). *note: Use an ACC power supply of 15A to 25A. Use a constant power supply below 30A.
4. Connect the yellow fuse to the constant power source, the red fuse to the ACC power source, and the ground terminal (black wire) to the metal part of the body.
Installation - Connect the following three cables to the car fuse box. (The position of the fuse box differs depending on the model)
Notice
The newly launched D07 is equipped with a type-c charging port, which is suitable for this dedicated hardwire kit.
If the D07 you purchased is equipped with a micro usb charging port, please let us know if you need hardwire kit.
Time lapse function: After WOLFBOX mirror dash cam is connected to this dedecated hardwire kit, and turn the time-lapse function on the dash cam, the camera will enter time-lapse recording function automatically when the car engine is off. In this mode, it records one frame per second, which is extremely save power and capacity, you don't need worry about drain out of car battery. This is because when the car engine is off, the ACC will have no power, and the dash cam will detects it and change recording mode from normal to time lapse.
Instructions for installation:
1. Stop the engine.
2. Open the fuse box.
3. Use a power detector to detect the constant power and ACC power (emergency power). *note: Use an ACC power supply of 15A to 25A. Use a constant power supply below 30A.
4. Connect the yellow fuse to the constant power source, the red fuse to the ACC power source, and the ground terminal (black wire) to the metal part of the body.
Installation - Connect the following three cables to the car fuse box. (The position of the fuse box differs depending on the model)
Notice
The newly launched D07 is equipped with a type-c charging port, which is suitable for this dedicated hardwire kit.
If the D07 you purchased is equipped with a micro usb charging port, please let us know if you need hardwire kit.
