Upgraded the 2nd Generation Dash Cam Hardwire Kit Type-C USB
This Type C USB port converter hardwire kit. Perfect for 24/7 Parking Surveillance.Low voltage protection protects against battery dying.Plozoe Dash cam hardwire kit works for almost all car USB C device, such as dash cam?mirror cam?GPS navigator etc.
Dash Cam Hardwire Kit with USB-C Port for REDTIGER F7N,ROVE R2-4K, R2-4K PRO, R2-4K Dual, R2-4K Dual PRO,VIOFO A329 series/A229 series/A119Mini2/A139Pro/WM1/T130,Vantrue N4(S)/N4 Pro(S)/N5(S)/N2X/E1 Pro/E360/ACE/E1 Lite/E2/S1 Pro(MAX),WOLFBOX G850PRO/G840S/G930/G850/G900/G840H/i07/i17/X5/X5 Duo/X3,IWEY N5/N5 PRO/N7/C3 PRO/C4 PRO/Q7 Model
Safety Notes
Pertorm the installation with the ignition in the OFF position.
Do not strip any live wires.
Correct electnical polarity and grounding is required for safe and proper installation.
Only connect to a negative ground DC supply circuit.
Not for installation to positive ground circuits.
If you don't have experience on installing the hardwire kits for the dash cam, please ask a professional for installation.
Technical Details
- Connector: USB-C Connector
- Input Voltage: DC 12V-24V
- Output Voltage: 5V
- Output Current: 2A
- Working Temperature:-40~ 160 Degree F

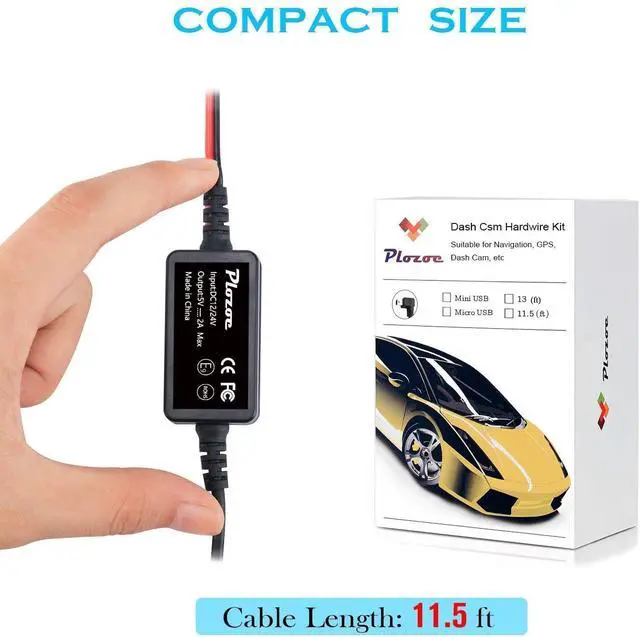

- Cable Length: 11.5ft/3.5m
- Low Voltage Protection: 11.6V for 12V vehicle; 23.5V for 24V vehicle.
The main function

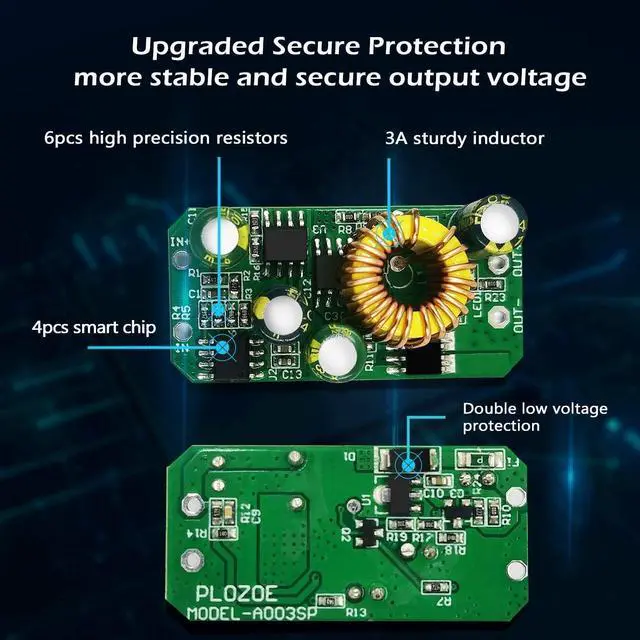

Low Voltage Protection
Set 6 high-precision resistors,Dual power-off protection chip, intelligent low-voltage protection device can read the battery voltage more accurately, When your car's voltage is lower than 11.7V or 11.6V, it will automatically turn off the power. Protect your car battery more effectively.

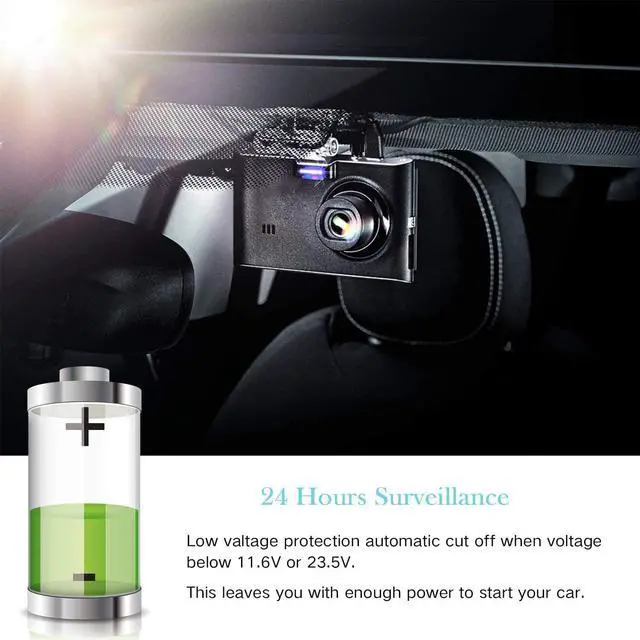

24 Hours Parking Surveillance
The vehicle hard-wire kit connected to car battery or fuse box power, can uninterruptedly supply power for dash camera for 24 hours. It can even supply power when the car is turned off.
Compatible 12 – 24V Vehicles
This hardwire kit accepts voltage from any type of vehicles runs on 12 – 24V, works perfect for car, truck, bus, suvs, or big rig for continuous power.
Compatible 12 – 24V Vehicles
4.3mm transmission line, high-quality copper core conductor, the dashcam hardware kit is faster and safer to charge

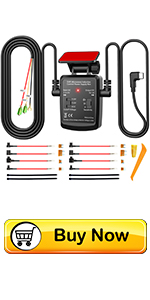

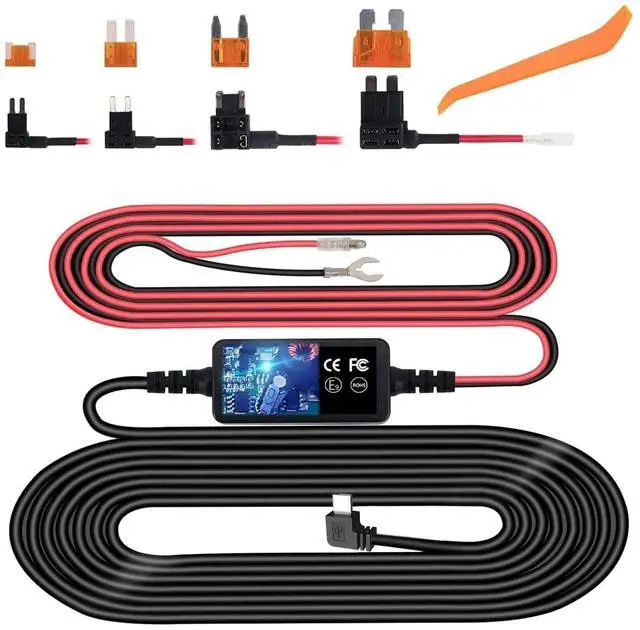

Four Types of Fuses Adapters for Almost All Cars
Comes with Low-profile mini fuse, Mini fuse, Micro 2 fuse, ATO (regular) fuse adapters for you to use whatever your vehicles fuse box requires.
Besides, with the seal wire connectors that will be easy for you to connect, firm connection and prevent short circuit.
Compatible 12 – 24V Vehicles
This hardwire kit accepts voltage from any type of vehicles runs on 12 – 24V, works perfect for car, truck, bus, suvs, or big rig for continuous power.

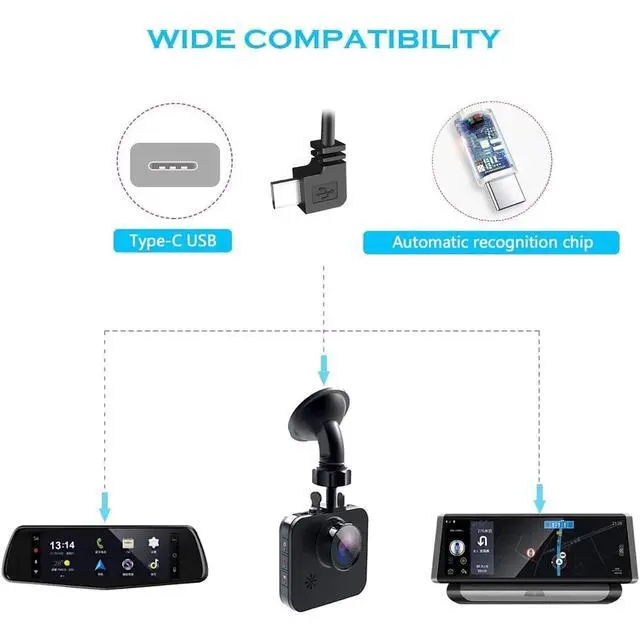

Upgraded the 2nd Generation Dash Cam Hardwire Kit
An automatic matching device is set at the Type-C USB connector to make the compatibility range wider, such as REDTIGER VIOFO AZDOME WOLFBOX Pelsee Vantrue Vava Garmin Dash cam, etc.
Compatible With Most Of The Car Dash Cam With Type C USB Input
This mirror dash cam hardwire kit is applied to almost all car Typc C USB device (Voltage Between 12-30V), Convert the voltage from 12v to 5v,such as Vantrue N4 and N2S, X4S, T3, F7N, mirror cam?GPS navigator etc, it match most of the car installation.

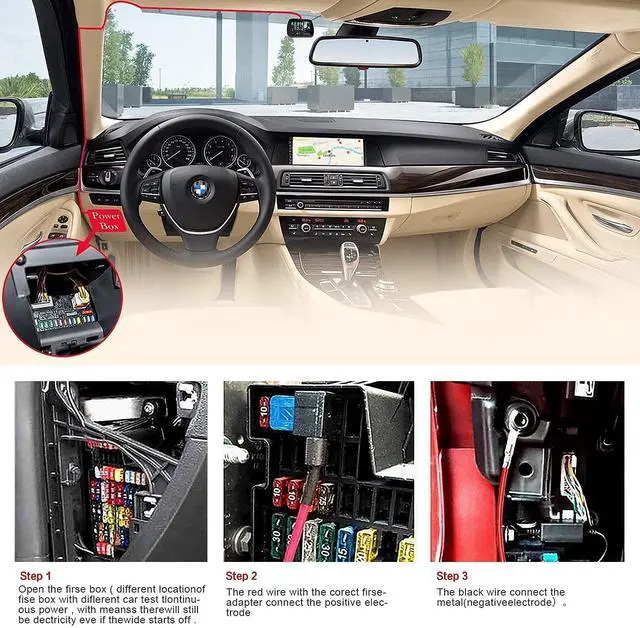

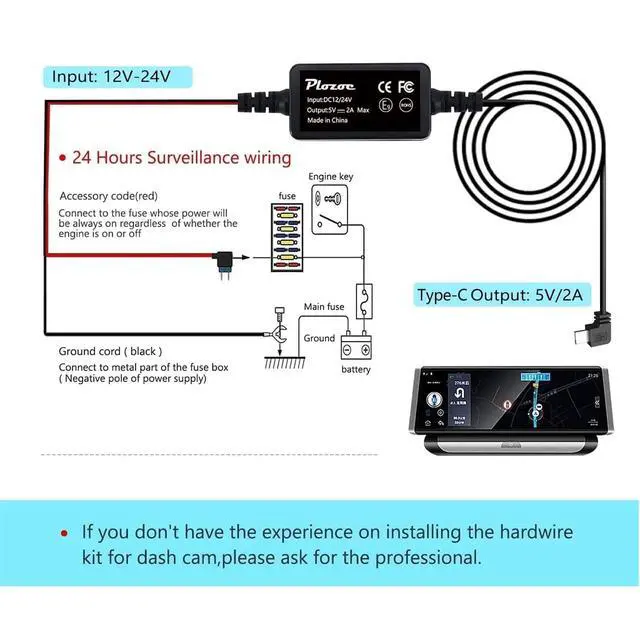

Installation steps
Step One:Find the Correct Fuse Slot
Open the fuse box, find the correct fuse slot for your hardwire kit. If you need to find an ignition switched fuse, put the key in the vehicle, find the fuse which is not lit up while the car is off, and test it by turning the car on to see if it lights up. If your kit requires constant power, turn off the car and remove the key to see which fuse slots stays lit on.
Step Two:Connect the Red Wire
Once you've determined which fuse slots you need to use for your hardwiring kit you can crimp the red wire of your hardwire kit onto the Add-A-Fuse. Gently remove the fuse you identified. Install the fuse you just removed into the installation kit add-a-fuse circuit. Plug the add-a-circuit into the fuse box in the correct orientation.
Step Three:Ground the Hardwiring Kit
Slip the black wire (which is in the shape of a C) under a metal bolt or screw in your vehicle (this is the ground wire). Check that it is not attached onto plastic parts. You will typically need a socket wrench to loosen the nut or bolt that you choose to ground with. To attach the grounding terminal, loosen the nut or bolt enough to slip it in and tighten it back up afterwards.
Install fuse:DUAL SLOT FUSE HOLDER
It provides one fuse holder to protect original circuit and provides a lead with the second fuse holder for new circuit.
 Upgraded the 2nd Generation Dash Cam Hardwire Kit-type c USB |  Upgraded the 2nd Generation Dash Cam Hardwire Kit-Mini USB |  Upgraded the 2nd Generation Dash Cam Hardwire Kit-Micro USB |  Mini USB Microwave Radar Sensing Dash Cam Hardwire Kit |  USB C Microwave Radar Sensing Dashcam Hardwiring Kit | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — no data | — |
| Input: | 9V-24V | 9V-24V | 9V-24V | 11.4V-30V | 11.4V-30V |
| Output: | 5V / 2A | 5V / 2A | 5V / 2A | 5V / 3A | 5V / 3A |
| Length | 13ft | 11.5ft | 11.5ft | 11.5ft | 11.5ft |
| Connector Port | USB C Port | Mini USB Port | Micro USB Port | Mini USB Port | Type C USB Port |
| Low Voltage Protection | v | v | v | v | v |
| 24 H Parking Mode | v | v | v | v | v |
| ACC parking Mode | v | v | v | v | v |
| Microwave Radar Sensing | X | X | X | vv | vv |
Upgraded the 2nd Generation Dash Cam Hardwire Kit Type-C USB
This Type C USB port converter hardwire kit. Perfect for 24/7 Parking Surveillance.Low voltage protection protects against battery dying.Plozoe Dash cam hardwire kit works for almost all car USB C device, such as dash cam?mirror cam?GPS navigator etc.
Dash Cam Hardwire Kit with USB-C Port for REDTIGER F7N,ROVE R2-4K, R2-4K PRO, R2-4K Dual, R2-4K Dual PRO,VIOFO A329 series/A229 series/A119Mini2/A139Pro/WM1/T130,Vantrue N4(S)/N4 Pro(S)/N5(S)/N2X/E1 Pro/E360/ACE/E1 Lite/E2/S1 Pro(MAX),WOLFBOX G850PRO/G840S/G930/G850/G900/G840H/i07/i17/X5/X5 Duo/X3,IWEY N5/N5 PRO/N7/C3 PRO/C4 PRO/Q7 Model
Safety Notes
Pertorm the installation with the ignition in the OFF position.
Do not strip any live wires.
Correct electnical polarity and grounding is required for safe and proper installation.
Only connect to a negative ground DC supply circuit.
Not for installation to positive ground circuits.
If you don't have experience on installing the hardwire kits for the dash cam, please ask a professional for installation.
Technical Details
- Connector: USB-C Connector
- Input Voltage: DC 12V-24V
- Output Voltage: 5V
- Output Current: 2A
- Working Temperature:-40~ 160 Degree F
- Cable Length: 11.5ft/3.5m
- Low Voltage Protection: 11.6V for 12V vehicle; 23.5V for 24V vehicle.
The main function
Low Voltage Protection
Set 6 high-precision resistors,Dual power-off protection chip, intelligent low-voltage protection device can read the battery voltage more accurately, When your car's voltage is lower than 11.7V or 11.6V, it will automatically turn off the power. Protect your car battery more effectively.
24 Hours Parking Surveillance
The vehicle hard-wire kit connected to car battery or fuse box power, can uninterruptedly supply power for dash camera for 24 hours. It can even supply power when the car is turned off.
Compatible 12 – 24V Vehicles
This hardwire kit accepts voltage from any type of vehicles runs on 12 – 24V, works perfect for car, truck, bus, suvs, or big rig for continuous power.
Compatible 12 – 24V Vehicles
4.3mm transmission line, high-quality copper core conductor, the dashcam hardware kit is faster and safer to charge
Four Types of Fuses Adapters for Almost All Cars
Comes with Low-profile mini fuse, Mini fuse, Micro 2 fuse, ATO (regular) fuse adapters for you to use whatever your vehicles fuse box requires.
Besides, with the seal wire connectors that will be easy for you to connect, firm connection and prevent short circuit.
Compatible 12 – 24V Vehicles
This hardwire kit accepts voltage from any type of vehicles runs on 12 – 24V, works perfect for car, truck, bus, suvs, or big rig for continuous power.
Upgraded the 2nd Generation Dash Cam Hardwire Kit
An automatic matching device is set at the Type-C USB connector to make the compatibility range wider, such as REDTIGER VIOFO AZDOME WOLFBOX Pelsee Vantrue Vava Garmin Dash cam, etc.
Compatible With Most Of The Car Dash Cam With Type C USB Input
This mirror dash cam hardwire kit is applied to almost all car Typc C USB device (Voltage Between 12-30V), Convert the voltage from 12v to 5v,such as Vantrue N4 and N2S, X4S, T3, F7N, mirror cam?GPS navigator etc, it match most of the car installation.
Installation steps
Step One:Find the Correct Fuse Slot
Open the fuse box, find the correct fuse slot for your hardwire kit. If you need to find an ignition switched fuse, put the key in the vehicle, find the fuse which is not lit up while the car is off, and test it by turning the car on to see if it lights up. If your kit requires constant power, turn off the car and remove the key to see which fuse slots stays lit on.
Step Two:Connect the Red Wire
Once you've determined which fuse slots you need to use for your hardwiring kit you can crimp the red wire of your hardwire kit onto the Add-A-Fuse. Gently remove the fuse you identified. Install the fuse you just removed into the installation kit add-a-fuse circuit. Plug the add-a-circuit into the fuse box in the correct orientation.
Step Three:Ground the Hardwiring Kit
Slip the black wire (which is in the shape of a C) under a metal bolt or screw in your vehicle (this is the ground wire). Check that it is not attached onto plastic parts. You will typically need a socket wrench to loosen the nut or bolt that you choose to ground with. To attach the grounding terminal, loosen the nut or bolt enough to slip it in and tighten it back up afterwards.
Install fuse:DUAL SLOT FUSE HOLDER
It provides one fuse holder to protect original circuit and provides a lead with the second fuse holder for new circuit.
Upgraded the 2nd Generation Dash Cam Hardwire Kit-type c USB | Upgraded the 2nd Generation Dash Cam Hardwire Kit-Mini USB | Upgraded the 2nd Generation Dash Cam Hardwire Kit-Micro USB | Mini USB Microwave Radar Sensing Dash Cam Hardwire Kit | USB C Microwave Radar Sensing Dashcam Hardwiring Kit | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — no data | — |
| Input: | 9V-24V | 9V-24V | 9V-24V | 11.4V-30V | 11.4V-30V |
| Output: | 5V / 2A | 5V / 2A | 5V / 2A | 5V / 3A | 5V / 3A |
| Length | 13ft | 11.5ft | 11.5ft | 11.5ft | 11.5ft |
| Connector Port | USB C Port | Mini USB Port | Micro USB Port | Mini USB Port | Type C USB Port |
| Low Voltage Protection | v | v | v | v | v |
| 24 H Parking Mode | v | v | v | v | v |
| ACC parking Mode | v | v | v | v | v |
| Microwave Radar Sensing | X | X | X | vv | vv |
