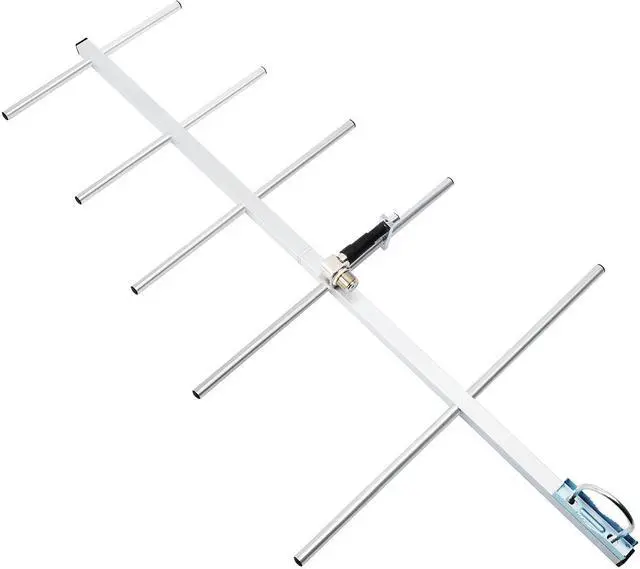

HYS Yagi Antenna UHF 400-470mhz 9 dBi High Gain Base Radio Station Antenna For BaoFeng Yaesu Motorola Radio Walkie Talkie

Product Description

Main Specification

Frequency Range:400-470 MHz
Impedance:50O
VSWR:<1.5
Gain:9dBi
Polarization:Vertical
Connector: SL16 female(UHF FEMALE)
Maximum Power Input-watts: 100 W
Size:725mm(L)*280mm(W)*10mm(H)

Note:

This is an outdoor Yagi antenna only. It doesn't work alone. You need a mobile radio/Two-way radio/walkie talkie Signal Booster to work with this antenna.

Product Description

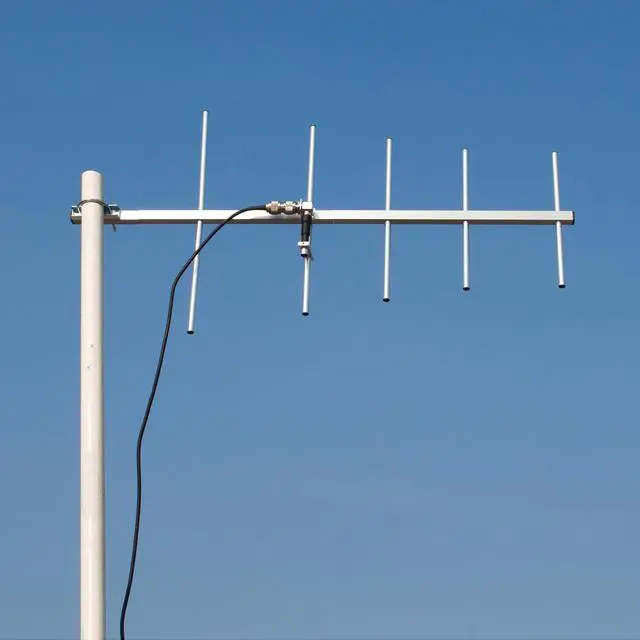

1. HYS UHF Yagi Antenna for use with repeater systems, data radio, base stations, mobile radio, two-way radio etc. Yagi antenna will significantly increase the range of your device.

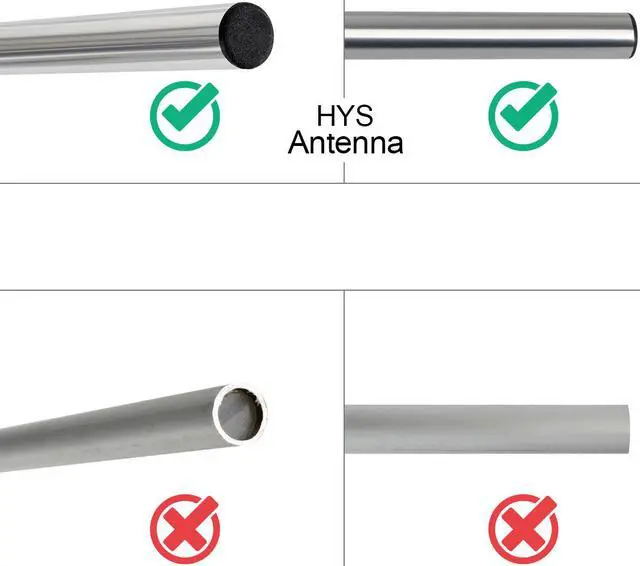

2. Aluminum alloy material: HYS TC-YG05 antenna is made of durable materials to withstand various weather conditions in order to provide long lasting product life.

3. HYS UHF Yagi Antenna for outdoor use and waterproof; easy to carry and install, the body of the Yagi Antenna makes it highly resilient to outdoor use. Rated wind velocity 60/m.

4. This portable high performance aluminum alloy UHF Yagi antenna is suitable for almost all walkie talkies with frequency UHF and the antenna of your walkie talkie should be detachable.

5. It can greatly increase communication distance, improve communication quality.Suitable for radio enthusiasts, people with high requirements for wireless communication quality and distance.

6. This antenna is lightweight and sturdy, easy to set up.

7. This antenna is compatible with walkie-talkies with frequency UHF.Retevis RT1 RT3 RT3S RT5 RT5R RT5RV RT29 RT87 RT50 RT81 RT82 RT83 RT84, BaoFeng UV-5R 888S etc.Icom,Kenwood,motorola etc.

8. UHF Yagi antenna is the most popular type of directional antenna in use today. The 9dBi 400-470Mhz Outdoor Yagi Antenna offers 40 degree Vertical and 58 degree Horizontal 3dB Beamwidth.

Features:

1.High gain

2.Strong directionality

3.Strong anti-jamming

4.Realize long distance communication

5.Simple construction and easy assembly and disassembly

6.Lightweight and sturdy, easy to set up

Package Including:

1* TC-YG05 Antenna(Including all parts shown in the pictures)

1* Installation Manual

(Not Includes: coaxial cable and radio.)

Note:

The Yagi antenna operates without the need for a grounding in most cases. However, you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware, recommend you install a lightning surge protector between the Yagi and a device to prevent a lightning strike to the antenna from damaging your device and equipment.
