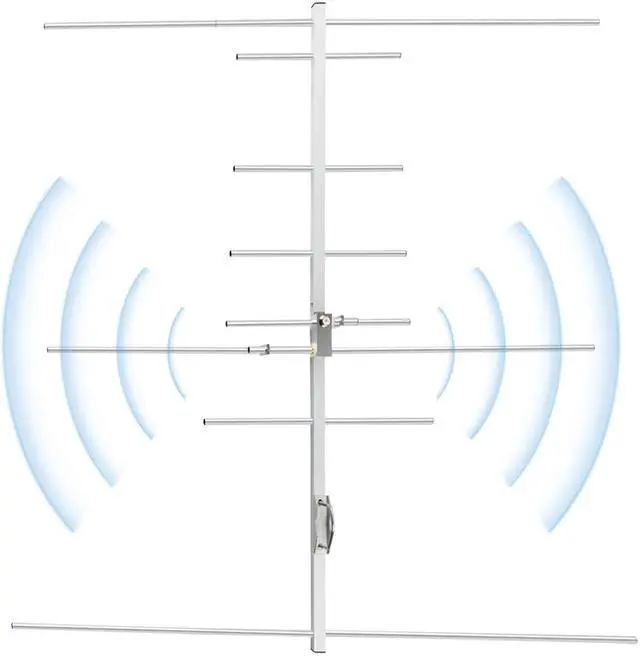

HYS Yagi Antenna Dual Band 9.5/11.5dBi VHF/UHF Antenna for Baofeng Yaesu Kenwood Radio Mobile radio Repeater Base stations

Main Specification
Tech Parameters
?Frequency Range:136-174/400-470 MHz(2Meter/70CM))
?Impedance:50O
?VSWR:<1.5
?Gain:9.5/11.5dBi
?Polarization:Vertical
?Size: 925×1045×60 mm
?Connector: SL16 female(UHF FEMALE)
?Maximum Power Input-watts: 100 W
Note:
This is an outdoor Yagi antenna only. It doesn't work alone. You need a mobile radio/Two-way radio/walkie talkie Signal Booster to work with this antenna.
This high performance aluminum alloy dual band Yagi antenna is suitable for almost all Walkie-Talkies/Transceiver with frequency VHF/UHF Note: Antenna of your Walkie-Talkie/Transceiver should be detachable.
Product Description
[YAGI ANTENNA ELECTRICAL SPECIFICATIONS] YAGI Antenna 144/430Mhz, 9.5 dBi/11.5dBi signal with up to 100W of power; with UHF Female Connector; Lighting Protection: Direct Ground.
[Polarization Horizontal or Vertical] VHF/UHF Yagi antenna is the most popular type of directional antenna in use today. The 9.5 dBi/11.5dBi 144/430Mhz Outdoor Yagi Antenna offers 48°/ 40° degree Vertical and 53°/ 45° degree Horizontal.

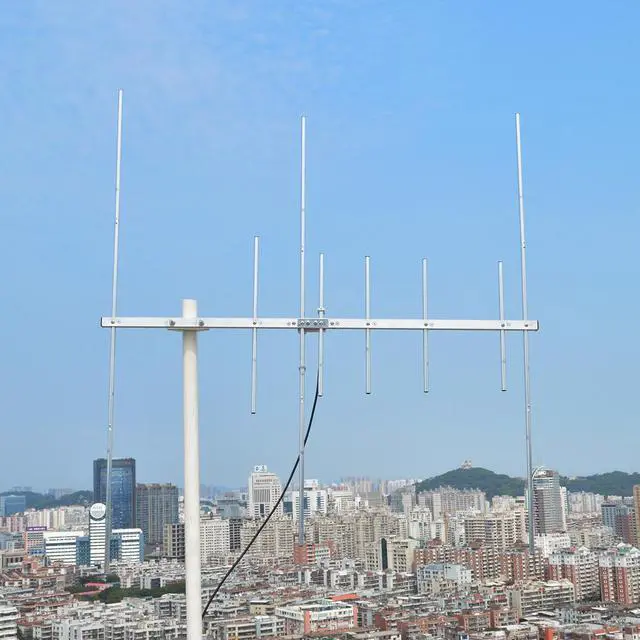

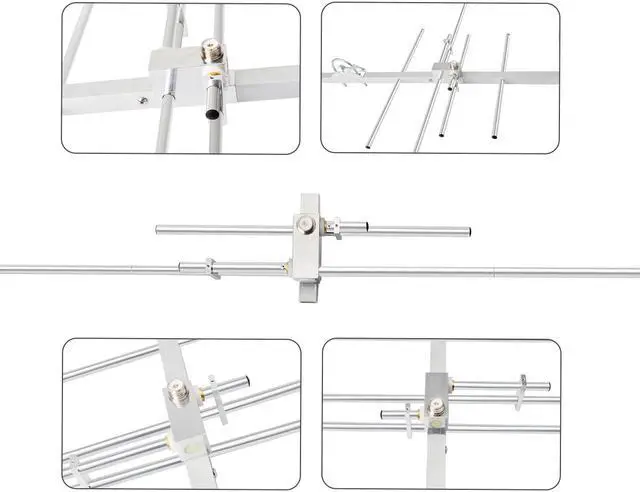

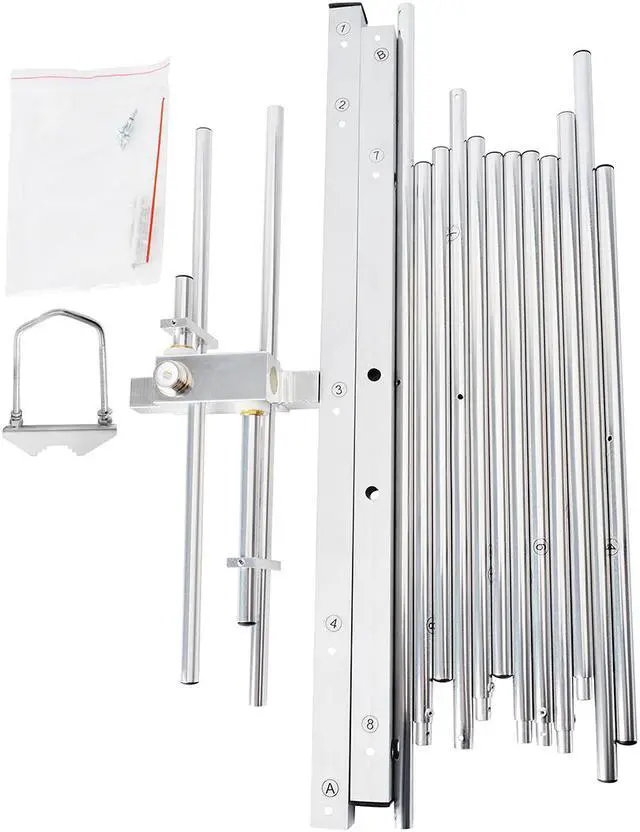

[YAGI ANTENNA EASY INSTALL] Comes with Element Beam, mount and screws, easy to install, the body of the Yagi Antenna makes it highly resilient to outdoor use. The antenna does not come with mast pole mount; it comes with ONE U-bolt which can be used with the attached plate for pole mounting. It allows horizontal or vertical polarization.
[Aluminum alloy material] HYS TC-YG08UV antenna is made of durable materials to withstand various weather conditions in order to provide long lasting product life. HYS Dual Band Yagi Antenna for outdoor use and waterproof. Rated wind velocity 60/m.
[HYS 2M/70cm YAGI ANTENNA] HYS VHF/UHF Yagi Antenna for use with repeater systems, data radio, base stations, mobile radio, two-way radio etc. Yagi antenna will significantly increase the range of your device. VHF/UHF YAGI antenna working for 136-174Mhz and 400-470Mhz mobile car radio/2-way radio, such as Kenwood Motorola, AnyTone, BaoFeng, Wouxun.
VHF/UHF Yagi antenna is the most popular type of directional antenna in use today. The 9.5 dBi/11.5dBi 144/430Mhz Outdoor Yagi Antenna offers 48°/ 40° degree Vertical and 53°/ 45° degree Horizontal.
The Yagi antenna operates without the need for a grounding in most cases. However, you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware, recommend you install a lightning surge protector between the Yagi and a device to prevent a lightning strike to the antenna from damaging your device and equipment.
