Product Description
[Electrical specifications] Frequency Range(MHz):350-500MHz; Impedance:50 ohm Gain:6.0dBi; Polarization:Vertical; Lighting Protection: Direct Ground;
[Electrical specifications] VSWR:<1.5; Horizontal Beam Width: 360 Degree; Vertical Beam With: 17Degree; Maximum input power:100W.

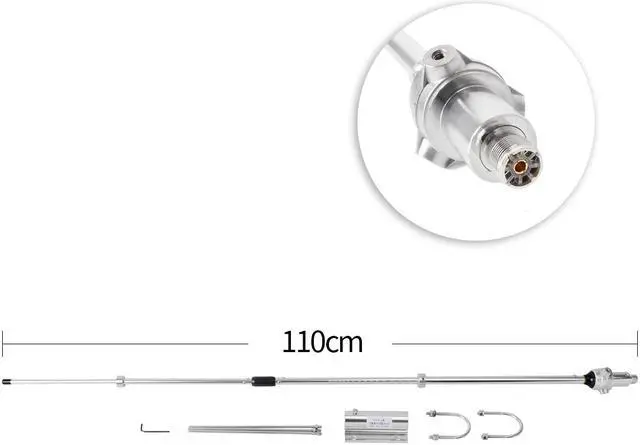

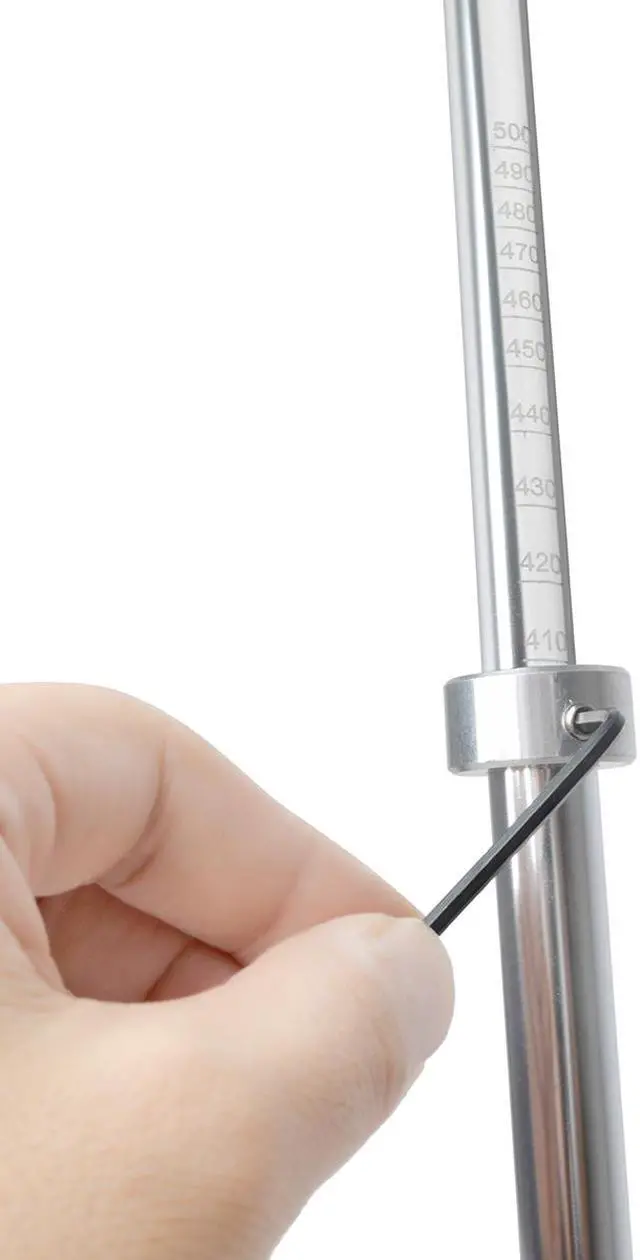

[Antenna Length and connector] Dimension/Height: 940-1100±10mm (The adjustment scale on the antenna is adjusted to a suitable frequency position. Different antenna scale, the antenna effect and length are different.); Connector: SL-16K (FEMAL)/ UHF FEMALE.

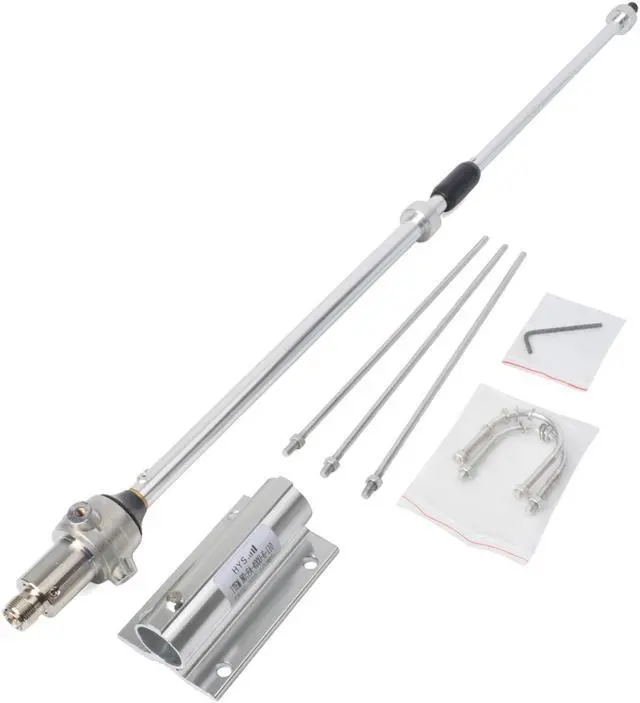

[Aluminum Alloy Mounting Bracket] Hold Pole Diameter:Ø30—Ø60mm; Material of Hardware-supplie Mounting Bracket made from Aluminum Alloy, designed for indoor and outdoor use. it comes with TWO U-bolt which can be used with the attached plate for pole mounting. It must be connected via coaxial cable to connect device.

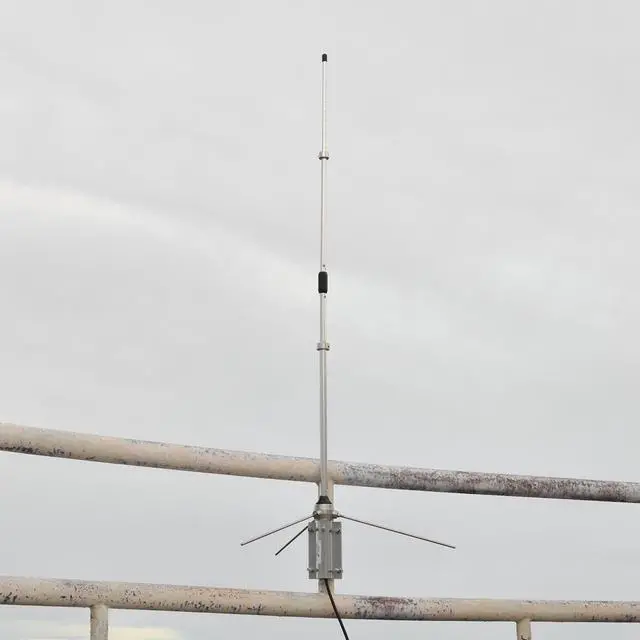

[350-500Mhz Antenna] Antenna Designed for any 350-500Mhz device for receivers, 350-500Mhz antenna for 350-500Mhz device receivers to improve signal in receiving and transmitting. UHF antenna for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, homes and offices.
