Product Description
Features & Functions:
Support Multi Scan and Watch
3W High Power Audio Output
Automatic Communication Recognition function
Smart Search Function
Weather Broadcasts and Weather Alerts
CTCSS/DCS Encoding and Decoding
DTMF Encoding and Decoding
DTMF dual-tone multi-frequency function
Wide and narrow band optional
Password Protection
Automatic Power-off(APO)
Time-out Timer(TOT)
Busy Channel Lock -out(BCLO)
Reset Procedure
Paging (Code Squelch) Function
Automatic/Manual Repeater Shift
Automatic Transfer Frequency Difference
A variety of Practical and Efficient Scanning Modes
200 Memory Channels and CALL Channels; Memory Channel Group Management

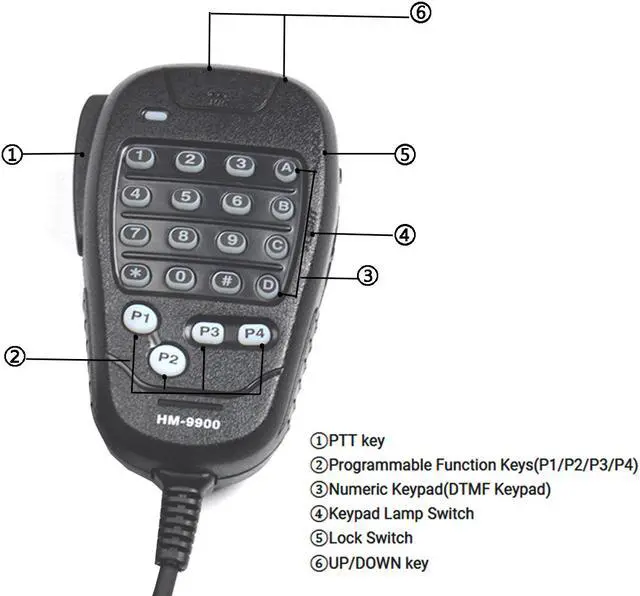

Programmable Allocation of Hand Microphone (microphone) Function Keys
80W High Output Power with Cooling Fan and Forced Cooling Control Circuit
Specification
Frequency range: 134-174MHz
Frequency step: 5/10/12.5/15/20/25/50/100kHz
Output power: 80/30/10/5W
Modulation method: F2D/F3E
Receiving sensitivity: =0.2uV (12dB SINAD)
Operating temperature: -20?~+60?
Maximum Deviation: ±5KHz (wideband), ±2.5KHz (narrowband)
Adjacent channel selectivity: 12kHz/ 30kHz
Antenna impedance: 50O
Size (D× W × H): 187 × 160 × 50mm
Operating Voltage: 13.8V
Max:15A

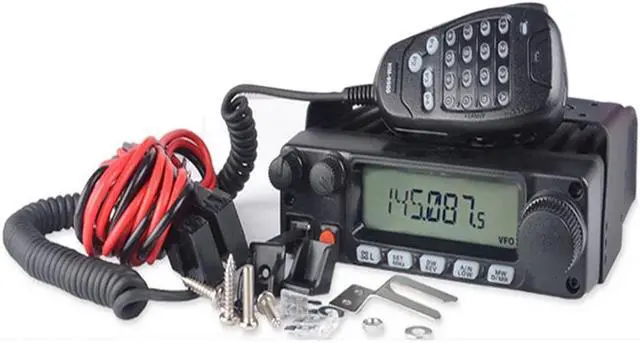

Package include:
Hand mic*1
DC power cable*1
Mounting bracket*1
Mounting Screw*1
Instruction manual*1
