HYS Dual Band 2meter 70CM Fiberglass 4.5/7.2dBi 200W 66inches UHF-Female (SO239) Connector Base Outdoor Antenna for Yaesu Motorla Icom Mobile Radio Transceiver
- HYS FB17UV is a kind of outdoor fiberglass antenna. Provides a gain of up to 7.2dBi, which can greatly improve the reception and transmission performance of your devices.
- Frequency: 136-174&400-470MHZ / VSWR: =1.5 / Gain:4.5&7.2dBi / Maxpower:200Watt / Length:66inches / Connector: UHF-Female (So239) / Weight:1KG

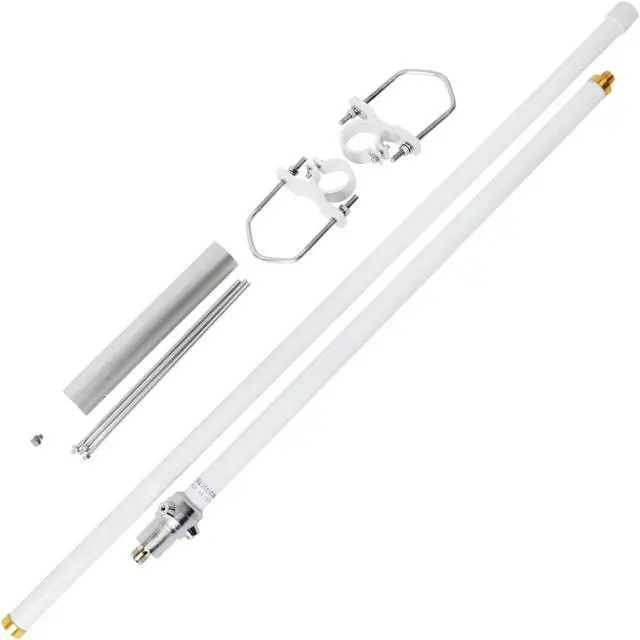

- 2 parts design and antenna bracket including, you can install the antenna easily.
- Compatible with most mobile radios or base transceivers work at 2meter and 70cm.
- What you get: 1PCS HYS FB17UV Outdoor Antenna and 1PCS Antenna bracket.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Frequency range 144/430MHz
VSWR <1.5
Impedance 50O
Gain 4.5/7.2Bi
Polarization Vertical
Maximum Power Input-watts 200 W
Horizontal Beam Width 360º
Vertical Beam Width 30º / 19º
Lighting Protection Direct Ground
Connector UHF-Female (So239)
Length 1750mm
Weight 1.0Kg
Radiating Element Material Cu
Hold Pole Diameter Ø30~Ø62 mm
Frequency range 144/430MHz
VSWR <1.5
Impedance 50O
Gain 4.5/7.2Bi
Polarization Vertical
Maximum Power Input-watts 200 W
Horizontal Beam Width 360º
Vertical Beam Width 30º / 19º
Lighting Protection Direct Ground
Connector UHF-Female (So239)
Length 1750mm
Weight 1.0Kg
Radiating Element Material Cu
Hold Pole Diameter Ø30~Ø62 mm
