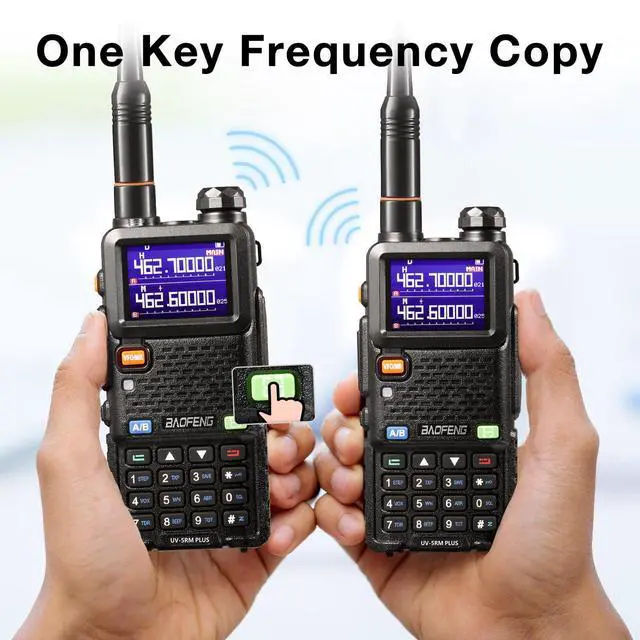

ONE KEY FREQUENCY COPY
Press and hold the scan button, and place it near the radio you want to scan, upon radio transmission, UV-5RM Plus will display the frequency(±2.5 PPM), CTCSS or DCS tones, or ‘NONE’ if CTCSS or DCS is absent.

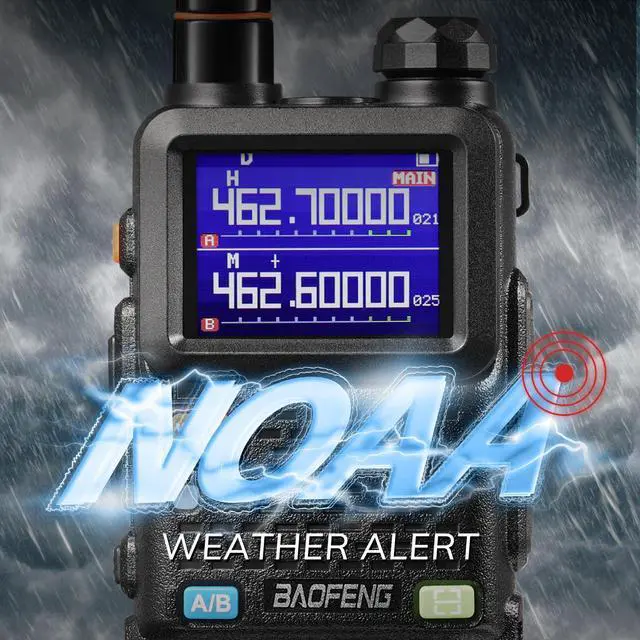

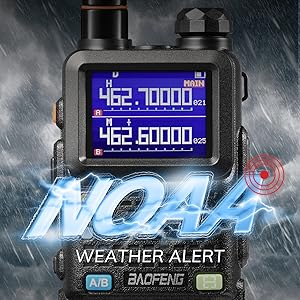

STAY WEATHER-READY
With the NOAA weather band scan and reception function, you can keep yourself safe during severe weather by receiving emergency alerts for hurricanes, tornadoes, floods, and other hazards.

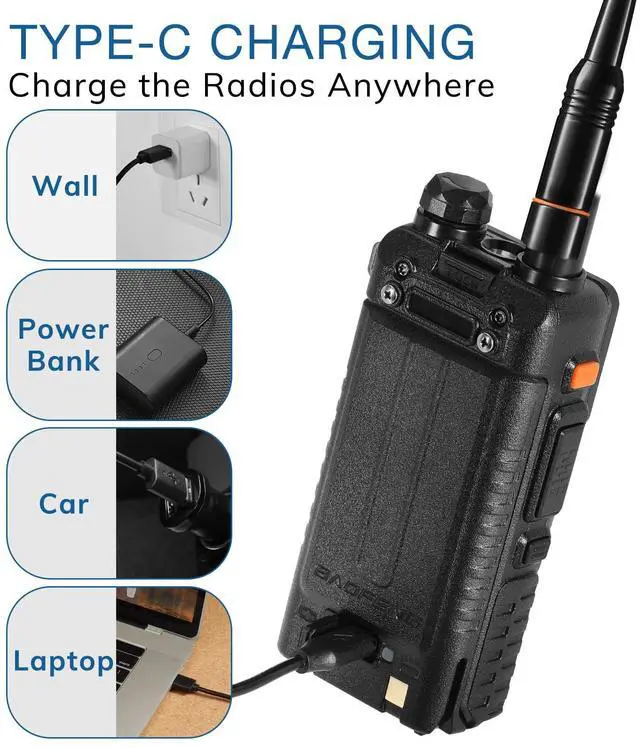

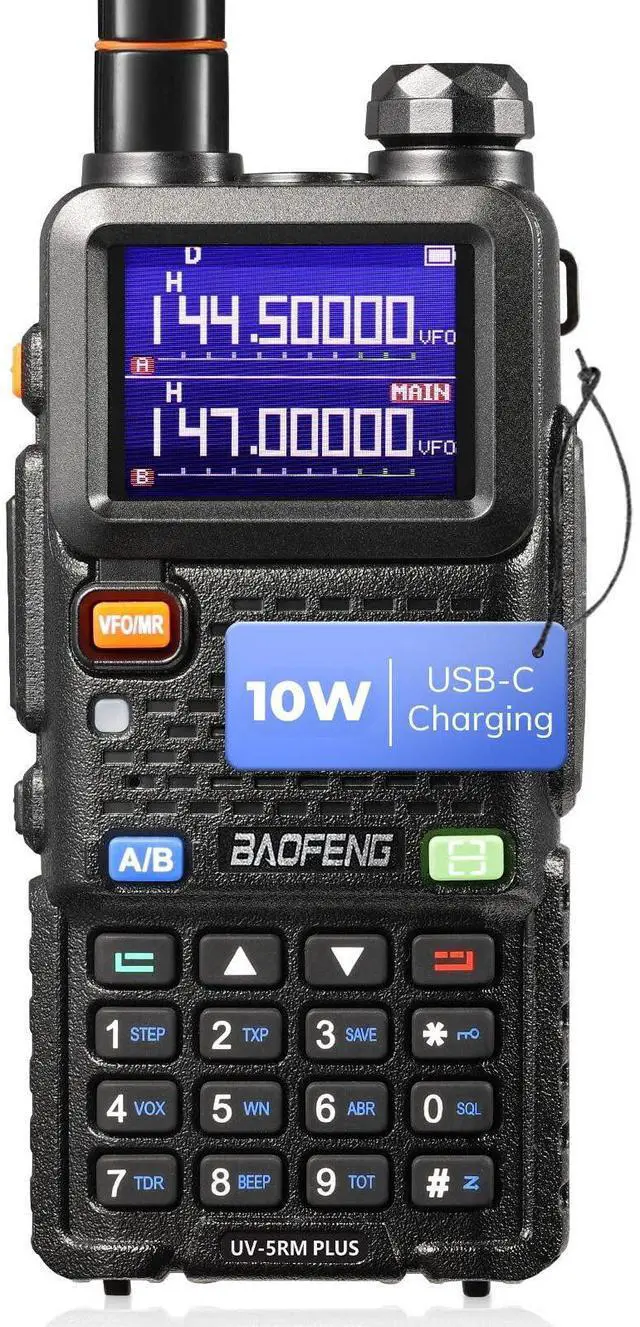

VERSATILE CHARGING OPTIONS
Equipped with a Type-C charging port, this radio can be recharged from anywhere and anytime using various power sources such as a wall socket, power bank, car charger, or laptop, ensuring continuous communication.
More Features
- Channel and frequency scan with three recovery methods: TO, CO, and SE
- Manageable power-on password protection
- Dual watch/reception and dual-band capabilities
- Stopwatch and alarm function
- Programmable display illumination via keypad
- Selectable high/low power modes
- Function beep on the keyboard, roger beep, LED flashlight
- Battery save mode, transmission time-out timer(TOT)
- Ten levels of squelch (SQL) adjustment
- Busy channel lockout and programmable repeater offset
Frequently Asked Questions
Specifications
 UV-5RM Plus |  K6 |  UV-25 |  UV-17R Plus |  GT-5R Pro (Upgraded UV-5R) |  BL-5RH 2500mAh Battery | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — no data | — |
| Power | 10W | 6W | 11W | 7W | 5W | no data |
| TX Frequency Range | UHF VHF | UHF VHF 1.25M | UHF VHF | UHF VHF | UHF VHF | no data |
| RX Frequency Range | UHF VHF AM FM 1.25M 1M NOAA | UHF VHF AM FM 1.25M 1M NOAA | UHF VHF AM FM 1.25M 1M NOAA | UHF VHF AM FM 1.25M 1M NOAA | UHF VHF AM FM 1.25M 1M NOAA | no data |
| Battery Capacity | 2500mAh | 2600mAh | 5200mAh | 2500mAh | 1800mAh | 2500mAh |
| Type-C Rechargeable | ? | ? | ? | ? | no data | ? |
| Memory Channel | 999 | 999 | 999 | 999 | 128 | no data |
| One-Key Frequency Copy | ? | ? | ? | ? | no data | no data |
| Menu Programmable Side Keys | no data | ? | no data | no data | no data | no data |
| Compatible with CHIRP | v Choose "5RM" | no data | v Choose "UV-17PRO" or "5RM" | v Choose "UV-17PRO" | v Choose "5RX" | no data |
![[UV-5R FCC Compliant Version] BAOFENG GT-5R Dual Band Two Way Radio, UHF VHF Ham Radio Handheld f...](http://c1.neweggimages.com/sellingpilot/modules/product/a-plus/8980a2d4bc206a1d654b4d9c2e449199d81a916aa4e6ec9f807e599861df3a77.jpg)
![[5 Packs] Baofeng UV-5R Two Way Radio Dual Band 144-148/420-450Mhz Walkie Talkie with 1800mAh Li-...](http://c1.neweggimages.com/sellingpilot/modules/product/a-plus/fdd3553999fe901ccd23191562fcb641f4d9df017e9c718d17152cc4a861d928.jpg)
![BAOFENG [USB-C Rechargeable] BL-5 1800mAh Battery for UV-5R Series, Type-C Charging Port, Compati...](http://c1.neweggimages.com/sellingpilot/modules/product/a-plus/0cdbf962037ec65be528b09761cc2abb4872082eb56fe4ab6d5cde0088743295.jpg)
ONE KEY FREQUENCY COPY
Press and hold the scan button, and place it near the radio you want to scan, upon radio transmission, UV-5RM Plus will display the frequency(±2.5 PPM), CTCSS or DCS tones, or ‘NONE’ if CTCSS or DCS is absent.
STAY WEATHER-READY
With the NOAA weather band scan and reception function, you can keep yourself safe during severe weather by receiving emergency alerts for hurricanes, tornadoes, floods, and other hazards.
VERSATILE CHARGING OPTIONS
Equipped with a Type-C charging port, this radio can be recharged from anywhere and anytime using various power sources such as a wall socket, power bank, car charger, or laptop, ensuring continuous communication.
More Features
- Channel and frequency scan with three recovery methods: TO, CO, and SE
- Manageable power-on password protection
- Dual watch/reception and dual-band capabilities
- Stopwatch and alarm function
- Programmable display illumination via keypad
- Selectable high/low power modes
- Function beep on the keyboard, roger beep, LED flashlight
- Battery save mode, transmission time-out timer(TOT)
- Ten levels of squelch (SQL) adjustment
- Busy channel lockout and programmable repeater offset
Frequently Asked Questions
| Unable to unlock the radio? | The UV-5RM Plus is FCC compliant and its transmission range is 144-148 & 420-450 MHz, it cannot be unlocked to transmit on FRS/GMRS/CB band. |
| Where to find CPS? | The UV-5RM Plus can be programmed with both BAOFENG official CPS and CHIRP (choose 5RM). The BAOFENG official CPS can be downloaded on baofengradio. com |
| Can't find this model on CHIRP | Please choose the model "5RM" under brand "Baofeng" on CHIRP. |
| Need further assistance? | The UV-5RM Plus comes with 18 months faulty return & replacement service and life-time support. If you have problem with programming/using the radio, feel free to contact official support via baofengradio. com |
Specifications

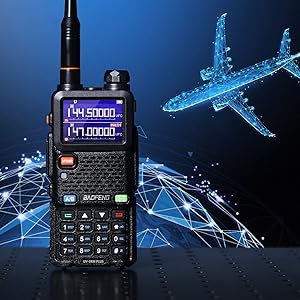

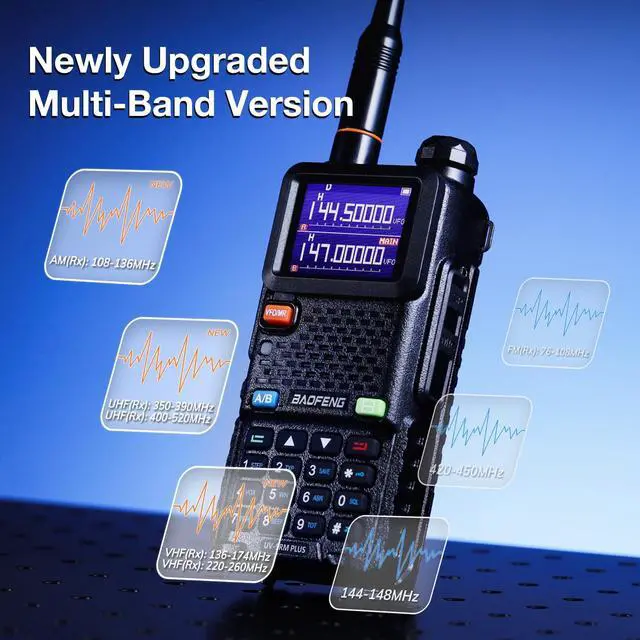

| Receiver Frequency Range | FM 76-108 MHz, AM 108-136 MHz, VHF 136-174 MHz, 220-260 MHz, UHF 350-390 MHz, 400-520 MHz |
| Transmission Frequency Range | 144-148 & 420-450 MHz |
| Channel Spacing | 25.0 KHz (Wide)/12.5 KHz (Narrow) |
| Memory Channel | 999 Groups |
| Operation Voltage | DC 7.4 V ±10% |
| Transmission Current | =2800 mA |
| Receive Sensitivity | 0.25 µV (12dB SINAD) |
| Rated Audio Power Output | 1W @16 ohms |
| Receive Current | =380 mA |
| Connection for Accessories | 2-pin Kenwood jack |
| ANT Impedance | 50 Ohm |
| ANT Gain | 2.0 dBi |
| ANT SWR | <1.2 |
| ANT Connector Type | SMA-Female |
| ANT Max Power | 10 Watts |
| Package Content | UV-5RM Plus Two-way Radio x 1; Li-ion Battery x 1; 8.3" Standard ANT x 1; Belt Clip x 1; Wrist Strap x 1; Type-C Charging Cable x 1; User Manual x 1 |
UV-5RM Plus | K6 | UV-25 | UV-17R Plus | GT-5R Pro (Upgraded UV-5R) | BL-5RH 2500mAh Battery | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — no data | — |
| Power | 10W | 6W | 11W | 7W | 5W | no data |
| TX Frequency Range | UHF VHF | UHF VHF 1.25M | UHF VHF | UHF VHF | UHF VHF | no data |
| RX Frequency Range | UHF VHF AM FM 1.25M 1M NOAA | UHF VHF AM FM 1.25M 1M NOAA | UHF VHF AM FM 1.25M 1M NOAA | UHF VHF AM FM 1.25M 1M NOAA | UHF VHF AM FM 1.25M 1M NOAA | no data |
| Battery Capacity | 2500mAh | 2600mAh | 5200mAh | 2500mAh | 1800mAh | 2500mAh |
| Type-C Rechargeable | ? | ? | ? | ? | no data | ? |
| Memory Channel | 999 | 999 | 999 | 999 | 128 | no data |
| One-Key Frequency Copy | ? | ? | ? | ? | no data | no data |
| Menu Programmable Side Keys | no data | ? | no data | no data | no data | no data |
| Compatible with CHIRP | v Choose "5RM" | no data | v Choose "UV-17PRO" or "5RM" | v Choose "UV-17PRO" | v Choose "5RX" | no data |
