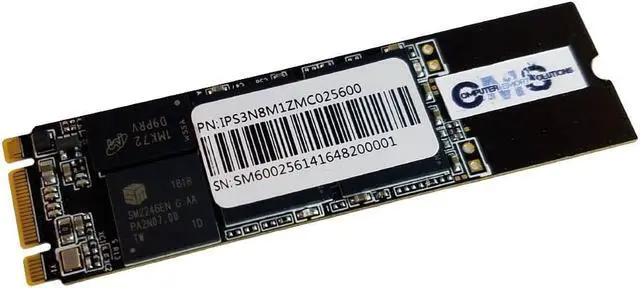

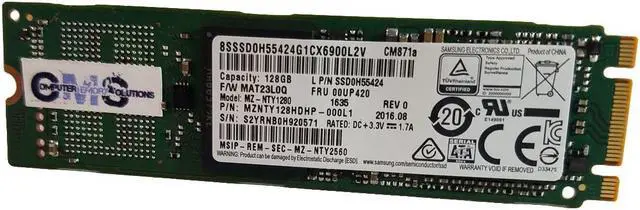

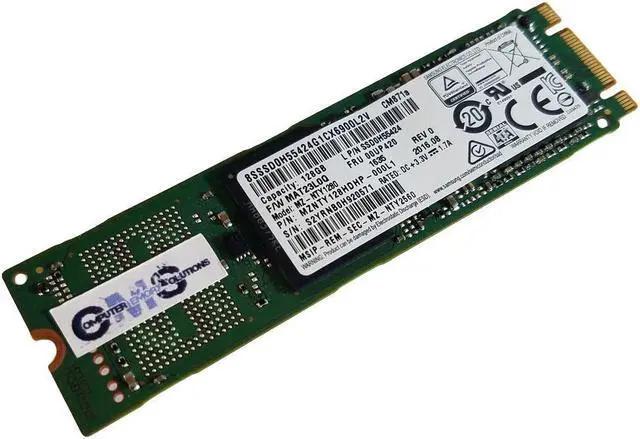

CMS 1TB SSDNow M.2 2280 SATA 6GB Compatible with Acer Aspire 5 A515-54G, A515-54G-53H6, A515-54G-54QQ, A515-54G-56VE, A515-54G-5928 - D68

1TB SSDNow M.2 SATA 6Gbps (Single Side) M.2 Form Factor — Multi-purpose SFF connector replaces small mSATA and mini-PCIe slots Single-sided design (120GB/240GB) — Integrates easily into designs with M.2 connectors; ideal for thin-and-light systems Form factor M.2 2280 Interface SATA Rev. 3.0 (6Gb/s) – with backward compatibility to SATA Rev. 2.0 Capacities 120GB, 240GB Sequential Read/Write SATA Rev. 3.0 120GB - Up to 550/200MB/s 240GB - Up to 550/330MB/s 480GB - Up to 550/520MB/s Max 4k Read/Write IOPS 128GB - up to 100,000/80,000 IOPS Random 4k Read/Write 120GB - up to 80,000/48,000 IOPS 240GB - up to 79,000/79,000 IOPS 480GB - up to 80,000/80,000 IOPS Endurance4 120GB: 150TB and 0.56 DWPD 240GB: 300TB and 0.70 DWPD 480GB: 800TB and 0.93 DWPD Power consumption Max Read: 1.56W Max Write: 3.01W Idle: 0.06W Storage temperature -40°C~85°C Operating temperature 0°C~70°C Dimensions 80mm x 22mm x 3.5mm Weight:256GB - 5.99 (g) Vibration operating 2.17G Peak (7–800Hz) Vibration non-operating 20G Peak (10–2000Hz) Life expectancy 1 million hours MTBF

Max Capacity: n/a

Sockets: 1

Compatible with: Acer Aspire 5 A515-54G, A515-54G-53H6, A515-54G-54QQ, A515-54G-56VE, A515-54G-5928

Limited Lifetime exchange or repair warranty against manufacturing defects by Computer Memory Solutions. Manufactured by Computer Memory Solutions. We don't use OEM or Generic Modules to avoid incompatibility. In most cases, you can mix manufacturer parts, however, all memory in the system will run at the slowest performance of the installed modules or CPU/processor capability.
