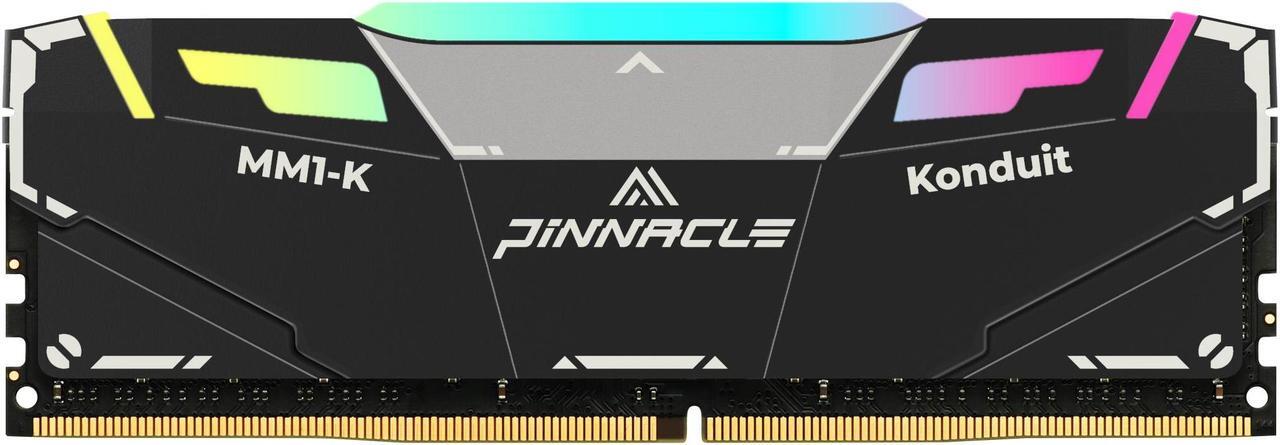

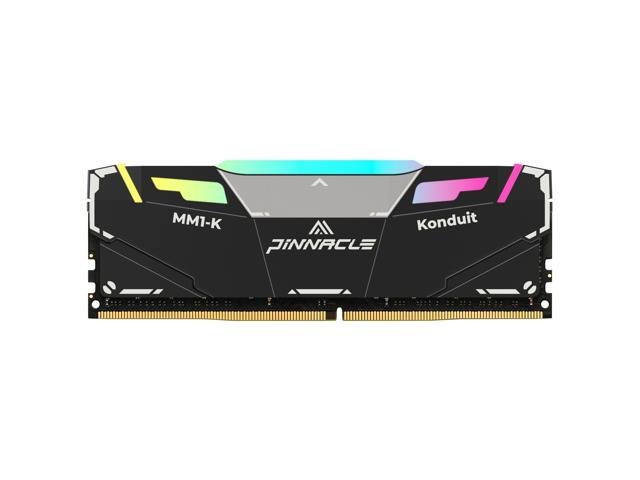

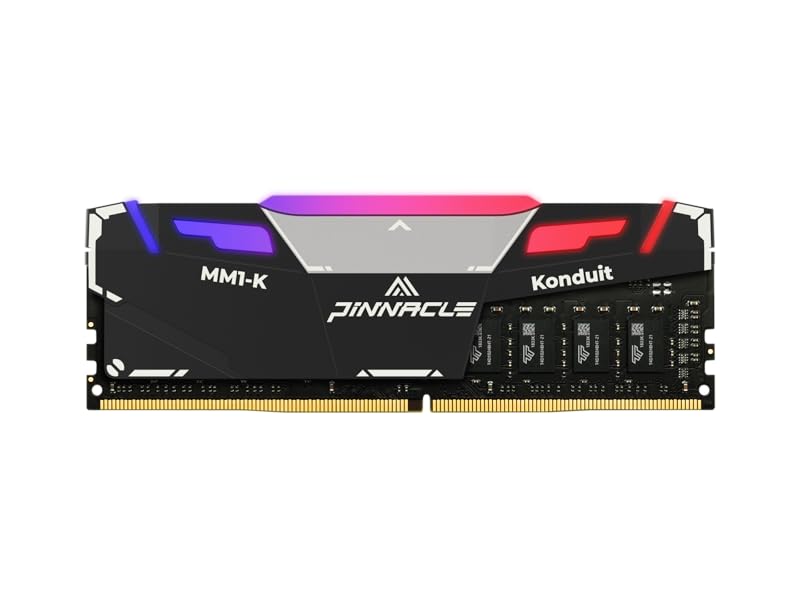

Designed and built to elevate your game, Pinnacle memory uses the best components and most thorough testing standards to ensure your system is always at peak performance. Equipped with XMP2.0 and RGB support, the Konduit is ready for seamless plug and play. Novice or pro.
- Timetec Pinnacle Konduit RGB DDR4 Memory is designed for Gaming and PC enthusiasts high-performance overclocking.
- Each IC is individually screened for performance potential.
- It operates at speeds up to 3200 MHz and has a CL16 latency.
- It offers higher frequencies, greater bandwidth, and lower power consumption.

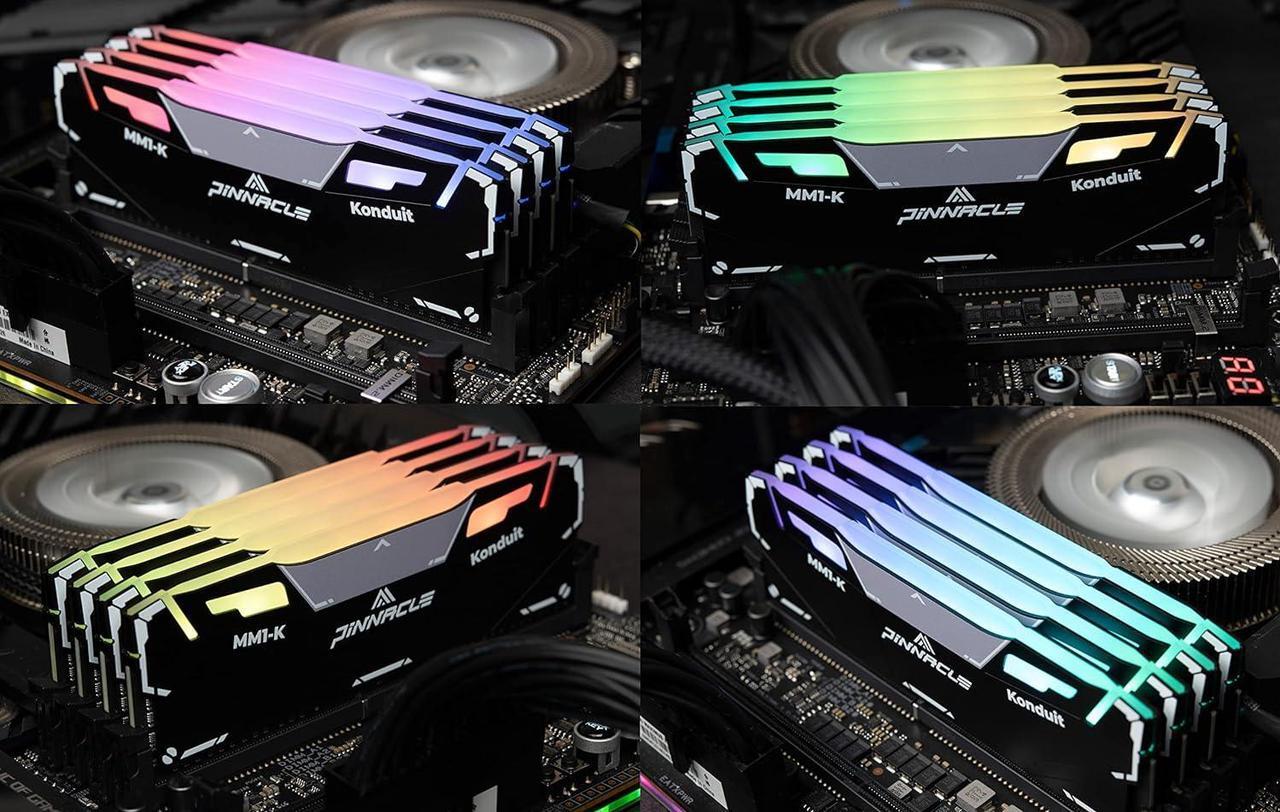

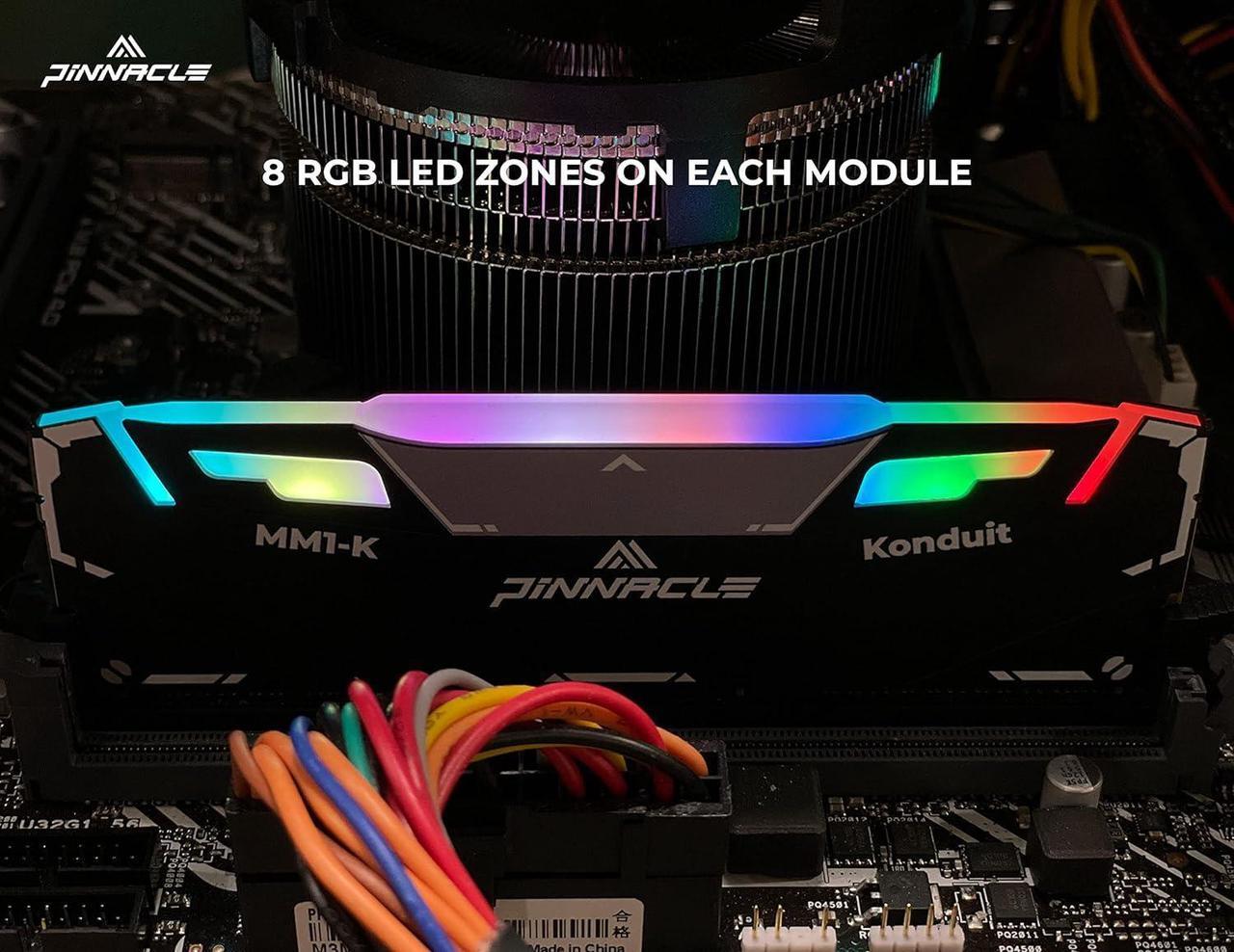

- Supports ASUS Aura, Gigabyte RGB Fusion, MSI Mystic Light and ASRock Polychrome Sync software to control RGB Lights.
| Memory Series | MM1-KONDUIT RGB Black |
|---|---|
| Memory Type | DDR4 288 pin Non-ECC Unbuffered |
| Memory Speed | 3200 MHz |
| Data Transfer Bandwidth | 25,600MB/s (PC4 25600) |
| Tested Latency | 16-18-18-38 / 16-20-20-40 |
| Capacity | 8GBx2 kit / 16GBx2 kit / 32GBx2 kit |
| Rank | Single Rank / Dual Rank |
| Voltage | 1.35V |
Important Notes

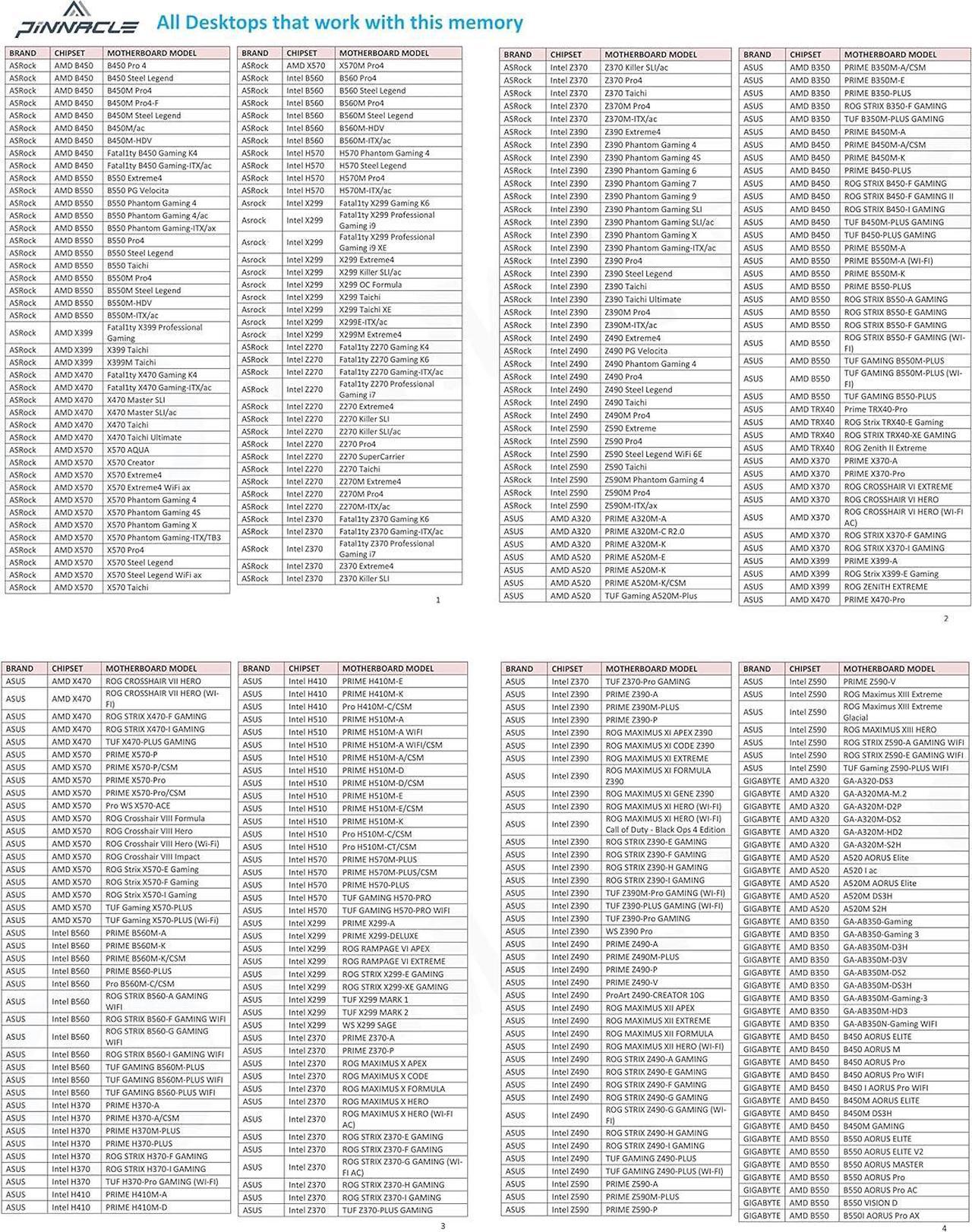

1. Timetec Pinnacle DDR4 Gaming Memory modules (UDIMMs) can only be installed in desktops built to support DDR4 DRAM.
2. Timetec Pinnacle DDR4 Gaming Memory modules can reach rated JEDEC speeds with Intel XMP 2.0 enabled in the UEFI/BIOS settings.
3. Modifying the module's clock frequency, speed, timings, or voltage beyond its specifications may result in damage to computer components. Timetec is not liable for any damage resulting from overclocking beyond the advertised speeds, timings, or motherboard/CPU-supported specifications. Please check your CPU and motherboard manuals for compatibility before overclocking.
4. Please enable the XMP setting in your UEFI/BIOS to achieve the advertised frequency and timings. Without XMP, your DRAM will run at the default base frequency (e.g., 2400MHz CL17, 2666MHz CL19, or 3200MHz CL22).
