Dual SBP8A 8" 160W Car Audio Amplified Subwoofer + Bandpass Enclosure + Amp Kit

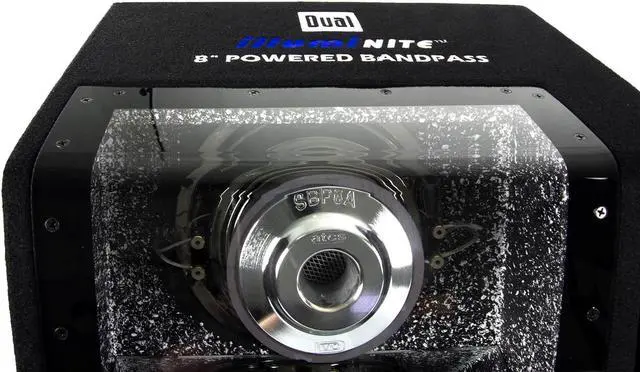

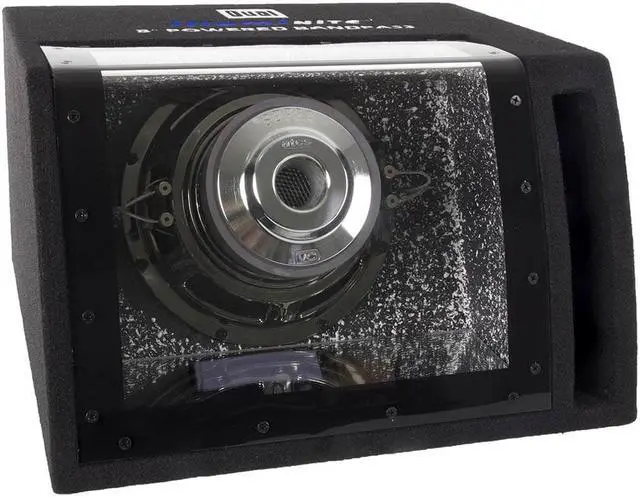

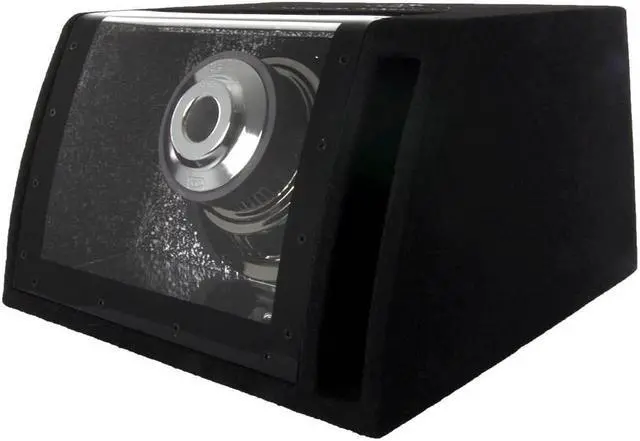

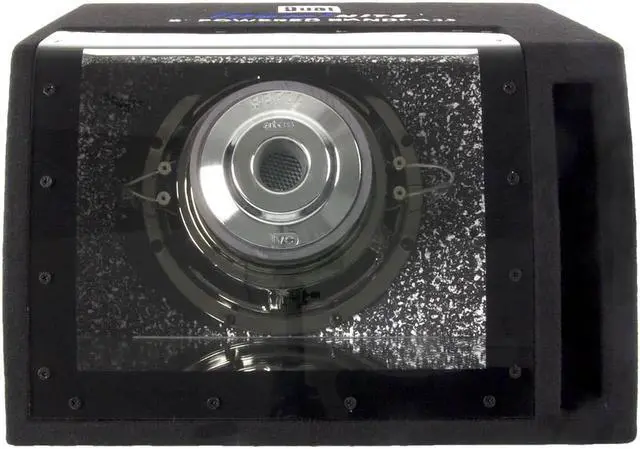

The **Dual SBP8A** 8" single amplified bandpass subwoofer with enclosure features a MAX power of 160 watts and a RMS power of 80 watts. This subwoofer has a full view plexiglass window which allows you to see a cool blue illumination and a stamped steel frame with chromed backplate. The SBP8A features a 8" subwoofer in a bandpass enclosure powered by an internal amplifier.

8" Subwoofer
Bandpass Enclosure
160 Watt Amplifier
Includes 8 Gauge Amplifier Install Kit


**We are an authorized Dual dealer**

@[Video](PnQrPFQj3D8)

• **Subwoofer:**
• New Dual SBP8A 8" 160 Watts Single Amplified Bandpass Subwoofer with Enclosure
• Subwoofer features:
• 8" high performance subwoofer
• Rigid polypropylene cone
• Durable rubber surround
• Heavy duty 30oz magnet
• Stamped steel frame with chromed backplate
• DVC Dual 2 ohm voice coil
• 2" voice coil with vented Kapton former
• ATCS advanced temperature control system
• Enclosure features:
• 4th order bandpass design
• Acoustically matched enclosure

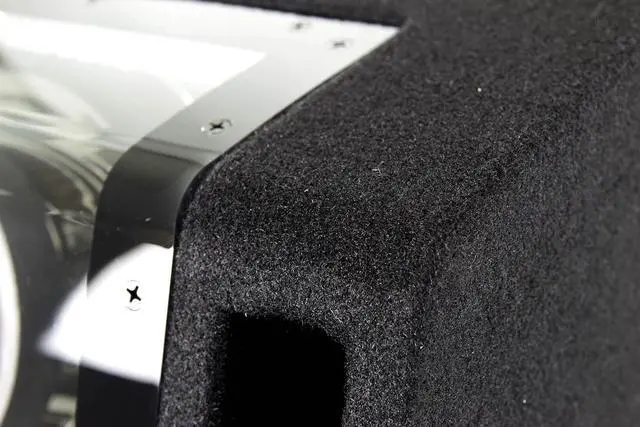

• Durable carpeted enclosure with reinforced construction
• Enlarged acrylic viewing window
• Blue illuminite LED illumination
• Glass mirrored chamber
• Compact size for easy installation
• Wedged design fits against most seat backs

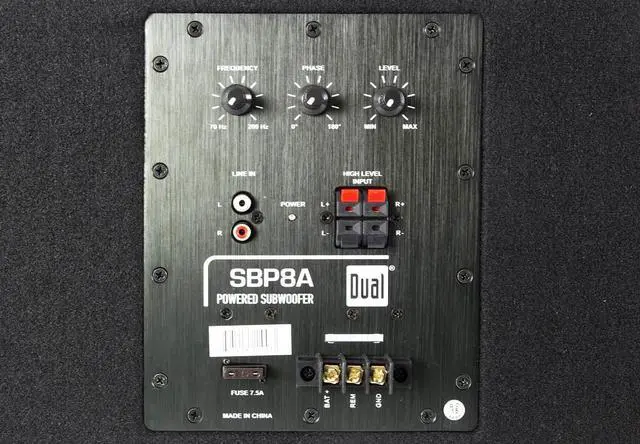

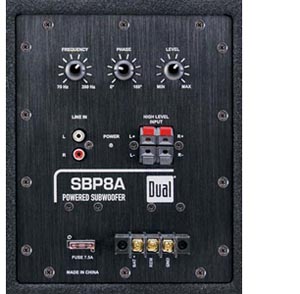

• Amplifier Features:
• Performance matched class B design
• Low level inputs RCA
• High level inputs
• Variable low pass crossover
• Variable phase control
• Barrier strip power terminals
• Maximum output power: 160 watts
• Continuous output: 80 Watts
• Frequency response: 20 200Hz
• S/N ratio: 72dB
• Input impedance:
• Low level: 10k Ohms
• High level: 2k Ohms
• Input sensitivity: 50mV 3V
• Crossover frequency: 70 200Hz
• Crossover slope: 6dB/octave
• Phase: 0 180
• Fuse: 7.5A
• Dimensions: 15.35" W x 9.22" H x 15.35" D
• Condition: Brand New!
• Item Weight: 22 lbs.
• Part Number: **SBP8A**
• 1 Year Manufacturer Warranty
• **Amp Kit:**
• New **Boss KIT2** 8 Gauge Complete Amplifier Installation Kit
• 20 ft. 8 GA Red Power Cable
• Competition High Quality Fuse Holder
• 1/4" Ring Terminal
• 3 ft. 8 GA Black Ground Cable
• #10 Ring Terminal
• 16 ft. 18 GA Blue Turn On Wire
• 20 ft. High Performance Black RCA
• (3) Rubber Grommets
• 30 ft. Speaker Wire
• 5/16" Ring Terminal
• 6 ft. Split Loom Tubing
• (20) 4" Wire Ties
• Product Condition: Brand New
• Item Weight: 2 lbs.
• Part Number: **KIT2**
• 1 Year Manufacturer Warranty
